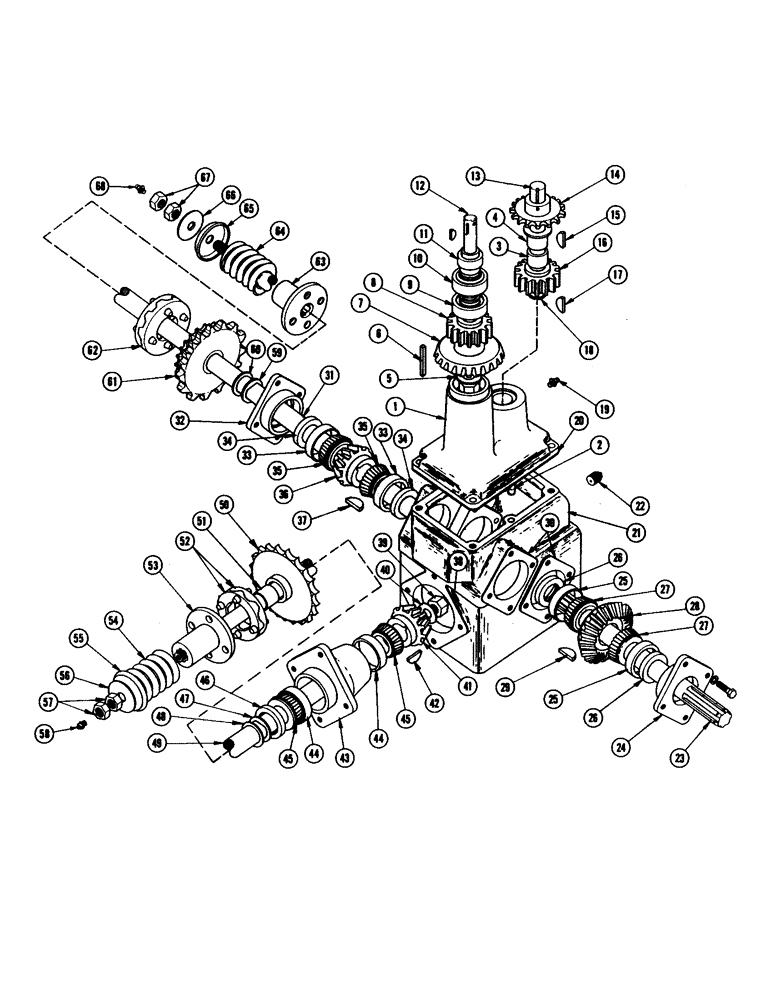

Запчасти Case IH 402 (42) - GEAR BOX - L.H., ROWS 2, 3 AND 4 (58) - ATTACHMENTS/HEADERS

1

F92034

CAP - spur gear support (Row 2)

1шт.

1

F92034

CAP - spur gear support (Rows 3 and 4)

2шт.

2

F53650

PIN

- dowel

1шт.

3

B14732

BEARING - straight

1шт.

4

O843CS

BEARING - flange

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Row 2) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Rows 3 and 4) Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

92-6

LOCK WASHER,3/8"

(Row 2) 3/8"

4шт.

92-6

LOCK WASHER,3/8"

(Rows 3 and 4) 3/8"

8шт.

5

F53638

WASHER (Row 2)

1шт.

5

F53638

WASHER (Rows 3 and 4)

2шт.

6

O30073HT

X

KEY - 1/4" x 1/4" x 1-5/8" sq. (Row 2)

1шт.

O30073HT

X

KEY - 1/4" x 1/4" x 1-5/8" sq. (Rows 3 and 4)

2шт.

7

F53657

GEAR - (21T) bevel, gathering chain drive (Row 2)

1шт.

7

F53657

GEAR - (21T) bevel, gathering chain drive (Rows 3 and 4)

2шт.

8

F53656

GEAR - spur (Row 2)

1шт.

8

F53656

GEAR - spur (Rows 3 and 4)

2шт.

9

F40948

BEARING

- spur gear (Row 2)

1шт.

9

F40948

BEARING

- spur gear (Rows 3 and 4)

2шт.

10

F54993

BEARING

(Row 2)

1шт.

10

F54993

BEARING

(Rows 3 and 4)

2шт.

11

F62108

COLLAR

- lock (Row 2)

1шт.

11

F62108

COLLAR

- lock (Rows 3 and 4)

2шт.

12

F54401

SHAFT - drive, gathering chain (Row 2)

1шт.

12

F54401

SHAFT - drive, gathering chain (Rows 3 and 4)

2шт.

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N. F. hex. slotted (Row 2)

1шт.

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N. F. hex. slotted (Rows 3 and 4)

2шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (Row 2) 1/8" x 1 1/4"

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (Rows 3 and 4) 1/8" x 1 1/4"

2шт.

13

F53652

JACKSHAFT - gathering chain drive (Row 2)

1шт.

13

F53652

JACKSHAFT - gathering chain drive (Rows 3 and 4)

2шт.

14

F92036

SPROCKET - (15T) gathering chain drive (Row 2)

1шт.

14

F92036

SPROCKET - (15T) gathering chain drive (Rows 3 and 4)

2шт.

135-56

GROOVED PIN,3/16" x 1 1/2", Type A

PIN - 3/16" x 1-1/2" drive-loc type "A-3" (Row 2)

1шт.

135-56

GROOVED PIN,3/16" x 1 1/2", Type A

PIN - 3/16" x 1-1/2" drive-loc type "A-3" (Rows 3 and 4)

2шт.

15

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(Row 2) #A, 1/4" x 7/8"

1шт.

15

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(Rows 3 and 4) #A, 1/4" x 7/8"

2шт.

16

F53651

GEAR - spur (Row 2)

1шт.

16

F53651

GEAR - spur (Rows 3 and 4)

2шт.

17

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(For ref. 16) (Row 2) #A, 1/4" x 7/8"

1шт.

17

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

(For ref. 16) (Rows 3 and 4) #A, 1/4" x 7/8"

2шт.

18

B18208

SNAP RING,#100, Ext

(Row 2) #100, Ext

1шт.

18

B18208

SNAP RING,#100, Ext

(Rows 3 and 4) #100, Ext

2шт.

19

F86399

FITTING

- (For ref. 1) (Row 2)

1шт.

19

F86399

FITTING

- (For ref. 1) (Rows 3 and 4)

2шт.

20

F53647

SHIM - cap (.005)

1шт.

F53648

SHIM - cap (.010)

1шт.

21

F2304

GEAR BOX (Row 2)

1шт.

21

F2304

GEAR BOX (Rows 3 and 4)

2шт.

22

O5489N

PLUG - vent and fill (Row 2)

1шт.

22

O5489N

PLUG - vent and fill (rows 3 and 4)

2шт.

23

F54179

SHAFT

- drive, snap roll (Outer)

1шт.

F54468

SHAFT - drive, snap roll (Inner) (Row 3)

1шт.

F54438

SHAFT - drive, snap roll (Inner) (Rows 3 and 4)

1шт.

24

F92027

RETAINER - bearing (Row 2)

2шт.

24

F92027

RETAINER - bearing (Rows 3 and 4)

4шт.

25

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP

1шт.

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Row 2) Hex, 5/16"-18 x 7/8", G5, Full Thd

8шт.

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Rows 3 and 4) Hex, 5/16"-18 x 7/8", G5, Full Thd

16шт.

92-5

LOCK WASHER,5/16"

(Row 2) 5/16"

8шт.

92-5

LOCK WASHER,5/16"

(Rows 3 and 4) 5/16"

16шт.

26

F53634

SEAL

- oil (Row 2)

2шт.

26

F53634

SEAL

- oil (Rows 3 and 4)

4шт.

27

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE (Row 2)

2шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE (Rows 3 and 4)

4шт.

28

F53630

GEAR - (21T) bevel, snap roll drive (Row 2)

1шт.

28

F53630

GEAR - (21T) bevel, snap roll drive (Rows 3 and 4)

2шт.

29

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - "B" Woodruff (For ref. 23) (Row 2)

1шт.

29

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - "B" Woodruff (For ref. 23) (Rows 3 and 4)

2шт.

30

F53632

SHIM - cap (.005)

1шт.

F53633

SHIM - cap (.010)

1шт.

31

F54398

SHAFT - drive, gathering chain (Outer)

1шт.

F54439

SHAFT - drive, gathering chain (Inner) (Rows 3 and 4)

1шт.

32

F92027

RETAINER - bearing (Row 2)

2шт.

32

F92027

RETAINER - bearing (Rows 3 and 4)

4шт.

33

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP

1шт.

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Row 2) Hex, 5/16"-18 x 7/8", G5, Full Thd

8шт.

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Rows 3 and 4) Hex, 5/16"-18 x 7/8", G5, Full Thd

16шт.

92-5

LOCK WASHER,5/16"

(Row 2) 5/16"

8шт.

92-5

LOCK WASHER,5/16"

(Rows 3 and 4) 5/16"

16шт.

41-1032

PLUG,Cup, 2"

- press (Rows 3 and 4)

2шт.

34

F53634

SEAL

- oil (Row 2)

2шт.

34

F53634

SEAL

- (Rows 3 and 4)

4шт.

35

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE (Row 2)

2шт.

35

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE (Rows 3 and 4)

4шт.

36

F53635

GEAR - (14T) bevel (Row 2)

1шт.

36

F53635

GEAR - (14T) bevel (Rows 3 and 4)

2шт.

37

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - "B" Woodruff (For ref. 31) (Row 2)

1шт.

37

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - "B" Woodruff (For ref. 31) (Rows 3 and 4)

2шт.

38

F53640

SHIM - gear box (.005)

1шт.

F53641

SHIM - gear box (.010)

1шт.

39

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N. F. hex. slotted (Row 2)

1шт.

39

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N. F. hex. slotted (Rows 3 and 4)

2шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (Row 2) 1/8" x 1 1/4"

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (Rows 3 and 4) 1/8" x 1 1/4"

2шт.

40

F53638

WASHER (Row 2)

1шт.

40

F53638

WASHER (Rows 3 and 4)

2шт.

41

F53635

GEAR - (14T) bevel (Row 2)

1шт.

41

F53635

GEAR - (14T) bevel (Rows 3 and 4)

2шт.

42

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - "B" Woodruff, for ref. 49 (Row 2)

1шт.

42

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - "B" Woodruff, for ref. 49 (Rows 3 and 4)

2шт.

43

F92029

HOUSING - bearing (Row 2)

1шт.

43

F92029

HOUSING - bearing (Rows 3 and 4)

2шт.

44

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP

2шт.

45

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE (Row 2)

2шт.

45

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE (Rows 3 and 4)

4шт.

46

F53639

OIL SEAL

SEAL - oil (Row 2)

1шт.

46

F53639

OIL SEAL

SEAL - oil (Rows 3 and 4)

2шт.

47

F53642

WASHER - retaining (Row 2)

1шт.

47

F53642

WASHER - retaining (Rows 3 and 4)

2шт.

48

A28764

WASHER (Row 2)

1шт.

48

A28764

WASHER (Rows 3 and 4)

2шт.

49

F53637

SHAFT - snap roll jump clutch (Row 2)

1шт.

49

F53637

SHAFT - snap roll jump clutch (Rows 3 and 4)

2шт.

50

F92030

SPROCKET - snap roll jump clutch (Row 2)

1шт.

50

F92030

SPROCKET - snap roll jump clutch (Rows 3 and 4)

2шт.

51

F53645

BEARING

1шт.

52

T16665

RING - clutch (Row 2)

2шт.

52

T16665

RING - clutch (Rows 3 and 4)

4шт.

53

F92032

PLATE AND HUB - jump clutch (Row 2)

1шт.

53

F92032

PLATE AND HUB - jump clutch (Rows 3 and 4)

2шт.

54

O6326CH

SPRING (Row 2)

1шт.

54

O6326CH

SPRING (Rows 3 and 4)

2шт.

55

F10716

WASHER - cupped (Row 2)

1шт.

55

F10716

WASHER - cupped (Rows 3 and 4)

2шт.

56

W8199S

WASHER (Row 2)

1шт.

56

W8199S

WASHER (Rows 3 and 4)

2шт.

57

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" - 18 N. F. jam (Row 2)

2шт.

57

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" - 18 N. F. jam (Rows 3 and 4)

4шт.

58

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING (Row 2)

1шт.

58

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING (Rows 3 and 4)

2шт.

59

F53642

WASHER - retainer (Outer)

1шт.

60

A28764

WASHER - (Outer) (Rows 2 and 3)

1шт.

60

A28764

WASHER - (Outer) (Row 4)

2шт.

61

F92500

SPROCKET - gath. chain (Outer) (23T-25T)

1шт.

62

T16665

RING - clutch (Outer)

2шт.

63

F92032

PLATE AND HUB - jump clutch (Outer)

1шт.

64

O6326CH

SPRING - (Outer)

1шт.

65

F10716

WASHER - cupped (Outer)

1шт.

66

W8199S

WASHER - (Outer)

1шт.

67

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" - 18 N. F. hex. jam (Outer)

2шт.

68

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease

1шт.
