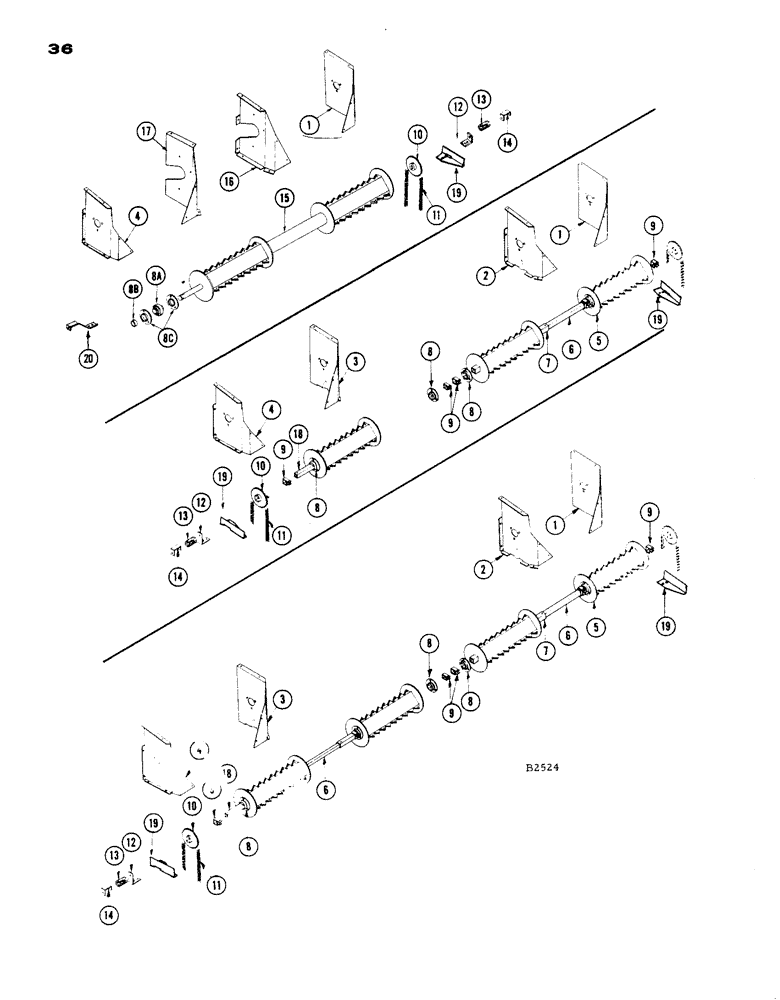

Запчасти Case IH 402 (36) - ROW BEATERS, ROWS 2, 3, AND 4 (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F92702
BEARING PLATE - beater, L.H. outer (Row 2)
1шт.
1
F92702
BEARING PLATE - beater, L.H. outer (Rows 3 and 4)
2шт.
411-48
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT - 1/4" x 1/2" rhd. sq. nk. (Row 2)
4шт.
411-48
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT - 1/4" x 1/2" rhd. sq. nk. (Rows 3 and 4)
8шт.
25-104
NUT,1/4"-20, G5
L.W. (92-4) (Row 2) 1/4"-20, G5
4шт.
25-104
NUT,1/4"-20, G5
L.W. (92-4) (Rows 3 and 4) 1/4"-20, G5
8шт.
2
F92708
BEARING PLATE - beater, L.H. inner (Rows 3 and 4)
2шт.
411-48
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT - 1/4" x 1/2" rhd. sq. nk. (Rows 3 and 4)
8шт.
25-104
NUT,1/4"-20, G5
L.W. (92-4) (Rows 3 and 4) 1/4"-20, G5
8шт.
3
F92707
BEARING PLATE - beater, R.H. inner (Row 3)
1шт.
3
F92707
BEARING PLATE - beater, R. H. inner (Row 4)
2шт.
411-48
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT - 1/4" x 1/2" rhd. sq. nk. (Row 3)
4шт.
411-48
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT - 1/4" x 1/2" rhd. sq. nk. (Row 4)
8шт.
25-104
NUT,1/4"-20, G5
L.W. (92-4) (Row 3) 1/4"-20, G5
4шт.
25-104
NUT,1/4"-20, G5
L.W. (92-4) (Row 4) 1/4"-20, G5
8шт.
4
F92701
BEARING PLATE - beater, R.H. outer (Rows 2 and 3)
1шт.
4
F92701
BEARING PLATE - beater, R.H. outer (Row 4)
2шт.
411-48
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT - 1/4" x 1/2" rhd. sq. nk. (Rows 2 and 3)
4шт.
411-48
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT - 1/4" x 1/2" rhd. sq. nk. (Row 4)
8шт.
25-104
NUT,1/4"-20, G5
L.W. (92-4) (Rows 2 and 3) 1/4"-20, G5
4шт.
25-104
NUT,1/4"-20, G5
L.W. (92-4) (Row 4) 1/4"-20, G5
8шт.
5
F92115
BEATER - row (Row 3)
3шт.
5
F92115
BEATER - row (Row 4)
4шт.
6
F54575
SHAFT - beater drive (303 and 304) (Row 3)
1шт.
6
F54575
SHAFT - beater drive (303 and 304) (Row 4)
2шт.
132-52
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), (Row 3) 1/8" x 1 1/2"
1шт.
132-52
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), (Row 4) 1/8" x 1 1/2"
2шт.
F54576
SHAFT - beater drive (404) (Row 4)
2шт.
7
F53692
SHAFT - beater (Inner) (Row 3)
1шт.
F53692
SHAFT - beater (Inner) (Row 4)
2шт.
8
F53693
BEARING - beater (Row 3)
6шт.
F53693
BEARING - beater (Row 4)
8шт.
11-612
BOLT
- 3/8" x 3/4" rhd. sq. nk. (Row 3)
18шт.
11-612
BOLT
- 3/8" x 3/4" rhd. sq. nk. (Row 4)
24шт.
25-106
NUT,3/8"-16, G5
- 3/8" N. C. hex., L.W. (92-6) (Row 3)
18шт.
25-106
NUT,3/8"-16, G5
- 3/8" N. C. hex., L.W. (92-6) (Row 4)
24шт.
8a
F92587
BEARING - beater (Row 2)
2шт.
8b
F54483
COLLAR
(Row 2)
1шт.
8c
F62225
FLANGE
TTE (Row 2)
4шт.
9
F53895
CLAMP - beater shaft (Rows 3 and 4)
4шт.
14-416
SCREW,Hex, 1/4" - 28 x 1", Gr 5
BOLT, Hex, 1/4"-28 x 1, G5, Full Thd (Rows 3 and 4)
4шт.
25-114
NUT,1/4"-28, G5
- 1/4" N. F. hex., L.W. (92-4) (Rows 3 and 4)
4шт.
10
F92110
SPROCKET - beater (Driven) (Rows 3 and 4)
2шт.
132-59
PIN
- 1/8" x 2-1/2" cotter (Rows 3 and 4)
2шт.
F92575
SPROCKET - beater (Driven) (Row 2)
1шт.
135-765
GROOVED PIN,1/4" x 1 3/4", Type E
Pin, Grooved, (Row 2) 1/4" x 1 3/4", Type E
1шт.
11
F55015
CHAIN - beater drive (Row 2)
1шт.
11
F55015
CHAIN - beater drive (Rows 3 and 4)
2шт.
12
F53868
SUPPORT - idler (Row 2)
1шт.
12
F53868
SUPPORT - idler (Rows 3 and 4)
2шт.
11-512
SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, (Row 2) Short NK, 5/16"-18 x 3/4", G2
1шт.
11-512
SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, (Rows 3 and 4) Short NK, 5/16"-18 x 3/4", G2
2шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N. C. hex., L.W. (92-5) (Row 2)
1шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N. C. hex., L.W. (92-5) (Rows 3 and 4)
2шт.
13
3051/2CH
ROLLER
BLOCK - idler, for ref. 11 (Row 2)
1шт.
13
3051/2CH
ROLLER
BLOCK - idler, for ref. 11 (Rows 3 and 4)
2шт.
14
F53869
SPACER - finish sheet (Row 2)
1шт.
14
F53869
SPACER - finish sheet (Rows 3 and 4)
2шт.
11-552
BOLT
- 5/16" x 3-1/4" rhd. sq. nk. (Row 2)
1шт.
11-552
BOLT
- 5/16" x 3-1/4" rhd. sq. nk. (Rows 3 and 4)
2шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N. C. hex., L.W. (92-5) (Row 2)
1шт.
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N. C. hex., L. W. (92-5) (Rows 3 and 4)
2шт.
15
F92570
BEATER - row (402) (Row 2)
1шт.
16
F92704
BEARING PLATE - beater, L.H. inner (Row 2)
1шт.
411-48
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT - 1/4" x 1/2" rhd. sq. nk. (Row 2)
4шт.
25-104
NUT,1/4"-20, G5
L.W. (92-4) (Row 2) 1/4"-20, G5
4шт.
17
F92703
BEARING PLATE - beater, R.H. inner (Row 2)
1шт.
411-48
CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT - 1/4" x 1/2" rhd. sq. nk. (Row 2)
4шт.
25-104
NUT,1/4"-20, G5
L.W. (92-4) (Row 2) 1/4"-20, G5
4шт.
18
F54561
SHAFT - beater (Outer) (Rows 3 and 4)
2шт.
19
F54593
SHIELD - return, R.H. (Rows 3 and 4)
1шт.
F54594
SHIELD - return, L.H. (Rows 2, 3 and 4)
1шт.
20
F54518
SUPPORT - side-finish sheet (Row 2)
1шт.
Выбрано товаров: 73
