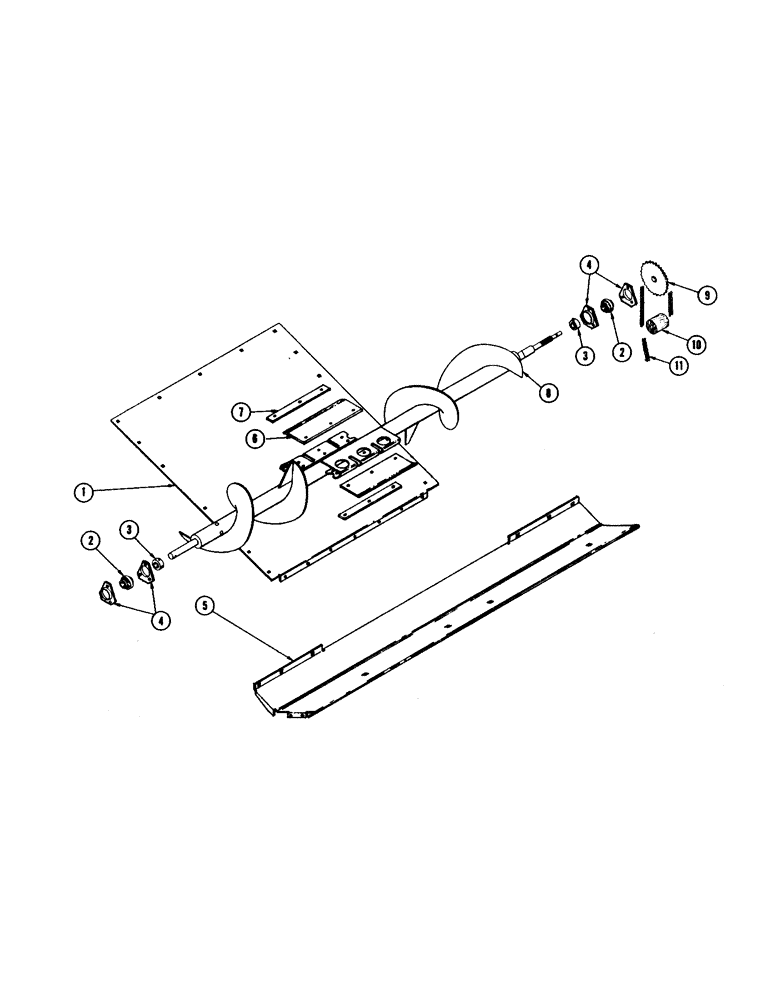

Запчасти Case IH 402 (34) - CROSS AUGER TROUGH, 402 (58) - ATTACHMENTS/HEADERS

1

F55008

FLOOR - feeder

1шт.

2

F92587

BEARING

2шт.

3

F54483

COLLAR

1шт.

4

F54559

RETAINER

FLANGE

4шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut (25-106) L.W. (92-6) Short NK, 3/8"-16 x 1", G2

6шт.

O418L

WASHER

4шт.

5

F54501

TROUGH - center

1шт.

6

F54544

BEATER - cross auger

2шт.

7

F54545

CLIP - beater backing

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N. F. hex., nut (25-116) L.W. (92-6)

6шт.

8

F92567

AUGER - cross

1шт.

9

F92096

SPROCKET (36T)

1шт.

10

3051/2CH

ROLLER

IDLER

1шт.

11-656

X

BOLT - 3/8" x 3-1/2" rhd. sq. nk.

1шт.

25-106

NUT,3/8"-16, G5

- 3/4" N. C. hex., fl. wshr. (95-6) L.W. (92-6)

1шт.

11

F92191

X

CHAIN - (NSS - See chain page)

1шт.
