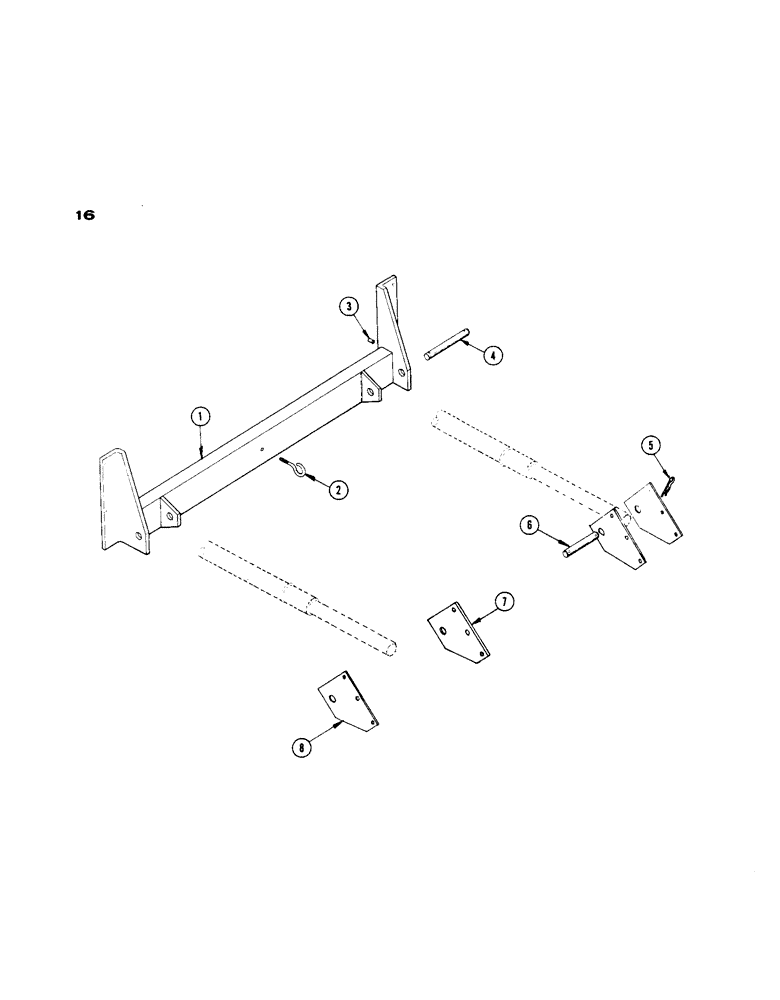

Запчасти Case IH 402 (16) - RAM SUPPORT AND LIFT BRACKETS, 1060 - 2 AND 3 ROW (58) - ATTACHMENTS/HEADERS

1

F86333

SUPPORT - ram

1шт.

114-410

BOLT,Hex, 1/2" - 20 x 2", Gr 5

6шт.

129-125

NUT,1/2"-20, G5

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

2

F11792

EYEBOLT - hyd. hose support

1шт.

129-122

NUT,5/16"-24, G5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

3

O1202TS

SPACER

2шт.

4

F12293

PIN -, Serial Range: ram-support

2шт.

5

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

6

VB1835

PIN - ram to lift bracket

2шт.

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER - hair pin

4шт.

7

F55020

BRACKET - lift (5/8" thick)

2шт.

8

F55019

BRACKET - lift (1/4" thick)

2шт.
