(16[1]) - RAM EXTENSION AND LIFT BRACKETS 1160/1660/1665 - 2, 3 AND 4 ROW

Запчасти Case IH 402 (16[1]) - RAM EXTENSION AND LIFT BRACKETS 1160/1660/1665 - 2, 3 AND 4 ROW (58) - ATTACHMENTS/HEADERS

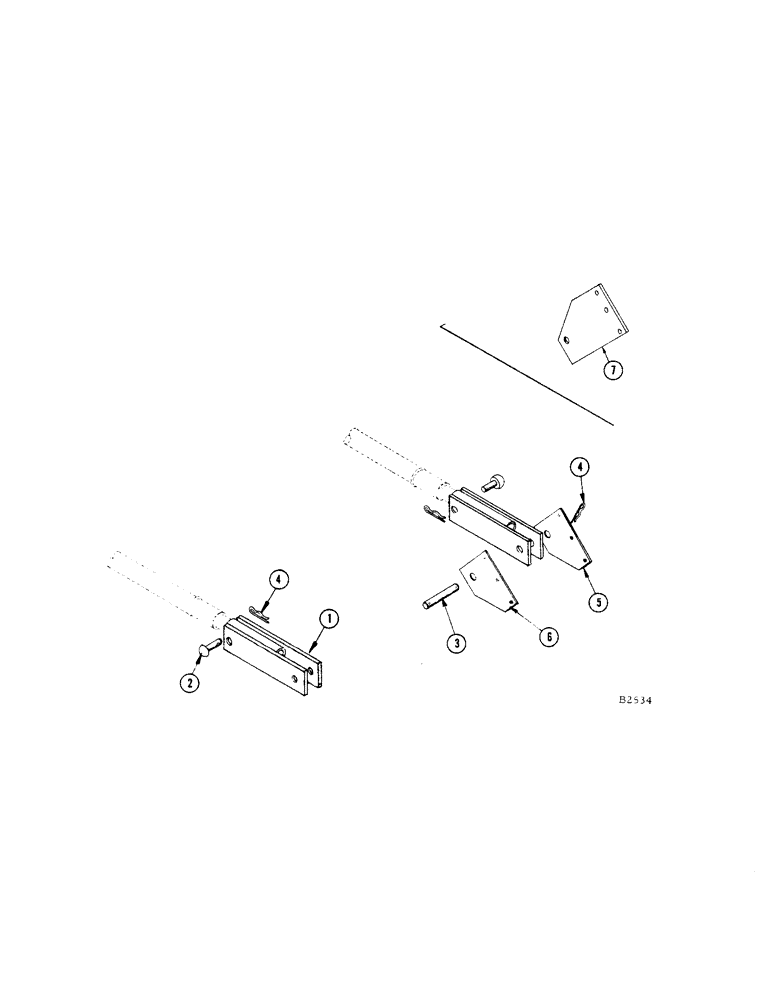

Схема запчастей Case IH 402 - (16[1]) - RAM EXTENSION AND LIFT BRACKETS 1160/1660/1665 - 2, 3 AND 4 ROW (58) - ATTACHMENTS/HEADERS
5
6
7
2
4
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F92978

EXTENSION - ram

2шт.

F93011

EXTENSION - ram (1665)

2шт.

2

H3861S

PIN - ram and extension

2шт.

3

T13508

PIN - extension to lift bracket (1160)

2шт.

F54339

PIN - extension to lift bracket (1660 and 1665)

2шт.

4

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER - hair pin

2шт.

5

F55020

BRACKET - lift (5/8" thick)

2шт.

6

F55019

BRACKET - lift (1/4" thick)

2шт.

7

F55073

BRACKET - lift 5/16" (1665)

6шт.
