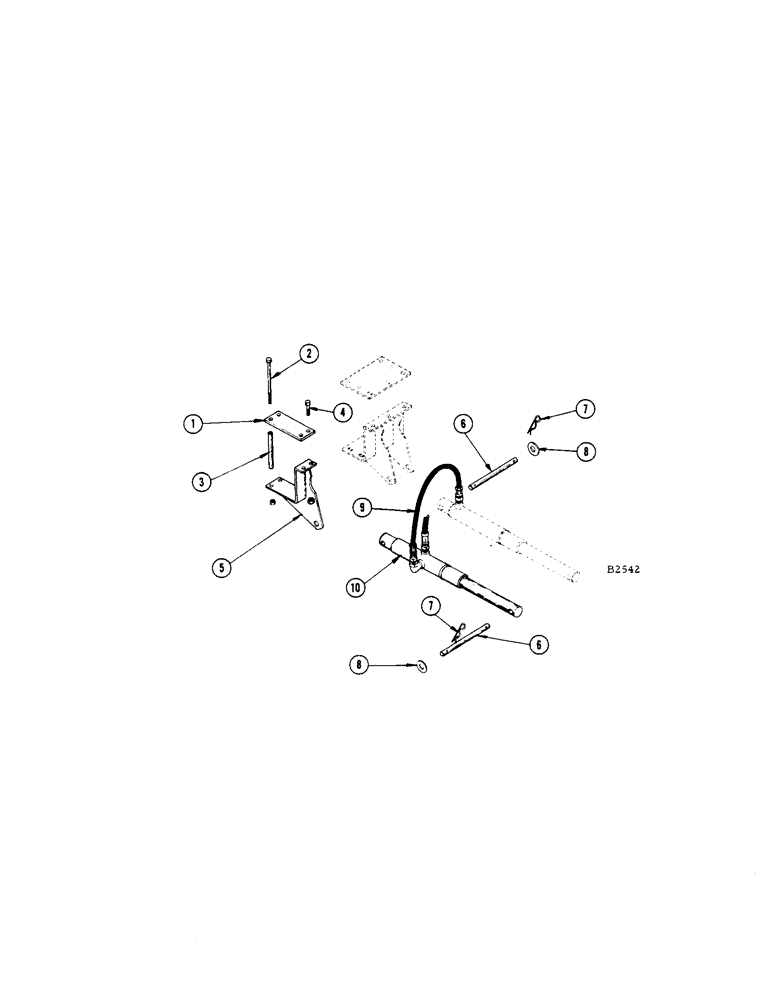

Запчасти Case IH 402 (14[2]) - LIFT RAM, ASSIST RAM, 600 - 660 (58) - ATTACHMENTS/HEADERS

1

F22337

PLATE - mounting

1шт.

2

113-254

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- 3/8" x 6-1/2" N.C. hex.

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Lockwasher (192-21) 3/8"-16, G5

2шт.

3

F22340

SPACER - pipe (For ref. 2)

2шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- 3/8" x 1-1/2" N.C. hex. (For ref. 1 and 5)

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Lockwasher (192-21) 3/8"-16, G5

2шт.

5

F91808

PIVOT - axle mounting assist

1шт.

6

F22339

PIN - ram support

2шт.

7

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER - hair pin

4шт.

8

195-553

WASHER,1", SAE

- 1" SAE std.

4шт.

9

F22336

HOSE - hydraulic

1шт.

10

F88199

RAM - hydraulic lift

1шт.

NSS

NOT SOLD SEPARAT

BARREL

1шт.

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

F86294

CYLINDER

KIT - repair

1шт.

F8083

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

"O"-RING - (3/16" x 1-7/8" I.D.)

1шт.

F8084

WASHER

- (3/16" x 2-3/8" O.D.) back up

1шт.

F10649

OIL SEAL

OIL SEAL

1шт.

F10650

RING, SNAP

SNAP RING - (1-7/8" rd. open) rod

1шт.
