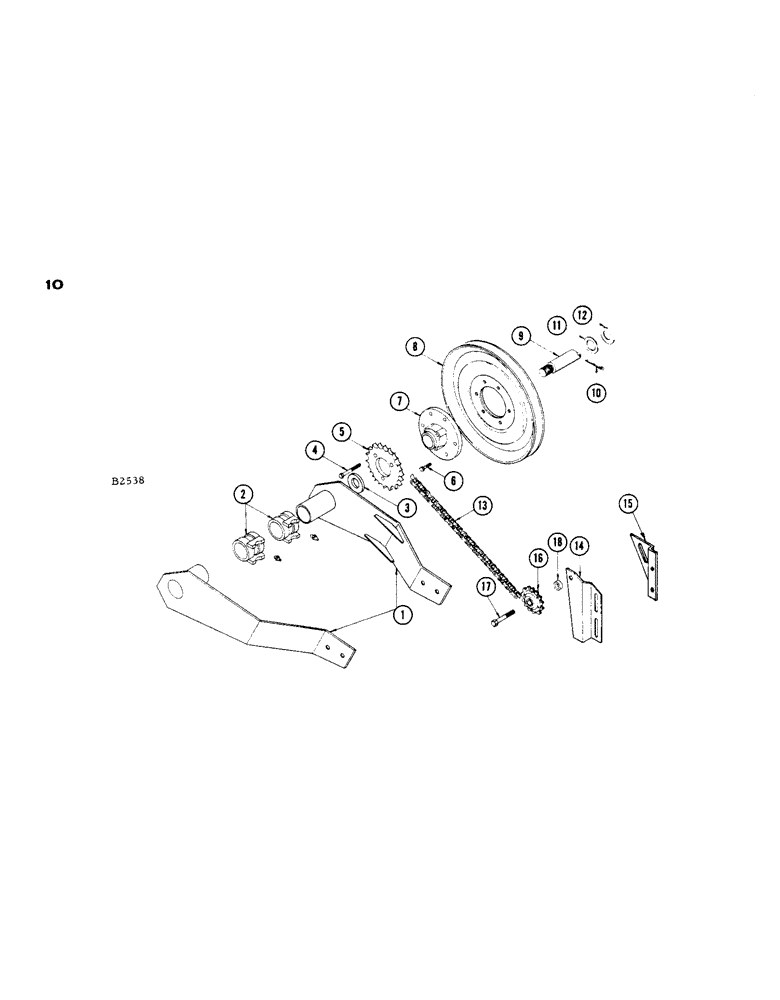

Запчасти Case IH 402 (10) - HEADER DRIVE SPROCKETS AND PIVOT BRACKETS, 660/960 - 2 AND 3 ROW (58) - ATTACHMENTS/HEADERS

1

F92083

BRACKET - side

2шт.

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex., nut (25-118) L.W. (92-8)

4шт.

2

F83093

BEARING

PIVOT BEARING - header

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

3

F53833

WASHER - retaining, 1/4"

1шт.

F53928

WASHER - retaining 10 ga.

1шт.

4

114-219

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.F. hex. (For ref. 5 and 7)

3шт.

5

F8974

SPROCKET ASSY.

SPROCKET - (24T)

1шт.

F54085

SPROCKET - (29T) header drive (High speed)

1шт.

6

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd (For ref. 7 and 8)

6шт.

129-123

NUT,3/8"-24, G5

Lockwasher (192-21) 3/8"-24, G5

6шт.

7

F81746

HUB - header drive

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING

1шт.

8

F81287

SHEAVE - drive

1шт.

9

F54554

SHAFT - main drive pivot pin

1шт.

10

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , For ref. 9 1/4" x 2"

1шт.

11

F62110

WASHER - 12 ga.

2шт.

12

F53834

WASHER - "D" retaining

1шт.

13

F53986

X

CHAIN - main drive (303) NSS see chain page

1шт.

F54705

CHAIN - main drive (402) NSS see chain page

1шт.

14

F53835

BRACKET - idler, main drive (303)

1шт.

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd, Nut (129-123) Wshr. (195-525)

2шт.

15

F54524

BRACKET - idler main drive (402)

1шт.

16

F12640

SPROCKET ASSY.

SPROCKET - idler (402)

1шт.

F10427

SPROCKET ASSY.

SPROCKET - idler (303)

1шт.

17

114-601

BOLT

BOLT - 5/8" x 2-1/2" N.F. hex., (For ref. 16)

1шт.

18

V13380

SPACER - (303)

1шт.

F54619

SPACER - idler sprocket (402)

1шт.
