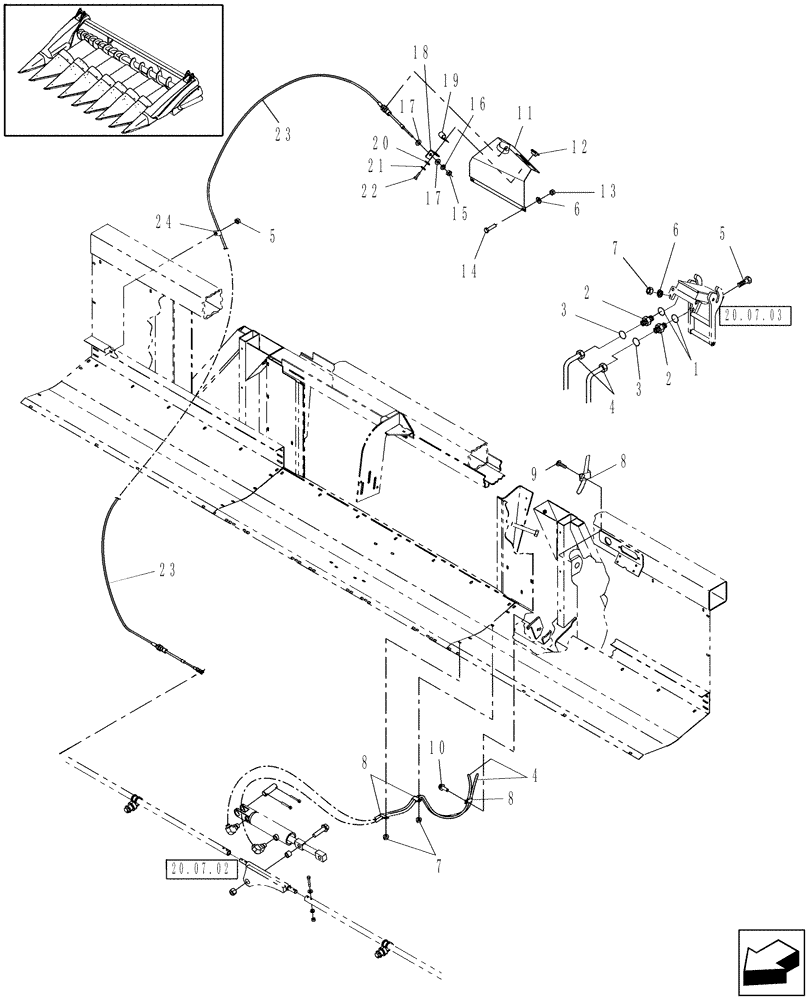

Запчасти Case IH 3412-22 (20.07.01) - HYDRAULIC CONTROL, SUPPLY, RETURN, POSITION INDICATOR (58) - ATTACHMENTS/HEADERS

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

2

86596730

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

9/16"-18 x 11/16", 0.71mm[0.028"] Orifice

2шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

86613973

HOSE

1/4" x 96.14" Long, 11/16"-16 F [OFS] x 9/16"-18 F[OFS]

2шт.

5

100016

NUT,M10 x 1.5, Cl 8

2шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

9706690

NUT,M8 x 1.25, Cl 8

4шт.

8

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

9

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

3/8"-16 x 3/4"

1шт.

10

276-14820

SCREW

1шт.

11

86615514

INDICATOR

6 To 12 Row

1шт.

11

84153613

INDICATOR

16 & 18 Row

1шт.

12

86615512

POINTER

Pointer

1шт.

13

9706690

NUT,M8 x 1.25, Cl 8

3шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

15

87825

NUT,#10-32

3шт.

16

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

1шт.

17

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

18

86611849

ANGLE

1шт.

19

134580

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

20

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

1шт.

21

86544338

LOCK WASHER,Ext-Int Tooth, #10

1шт.

22

86551278

SELF-TAP SCREW,HWH, #10 - 16 x 1/2"

1шт.

23

687559

CABLE,104mm L

1шт.

24

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

1шт.
