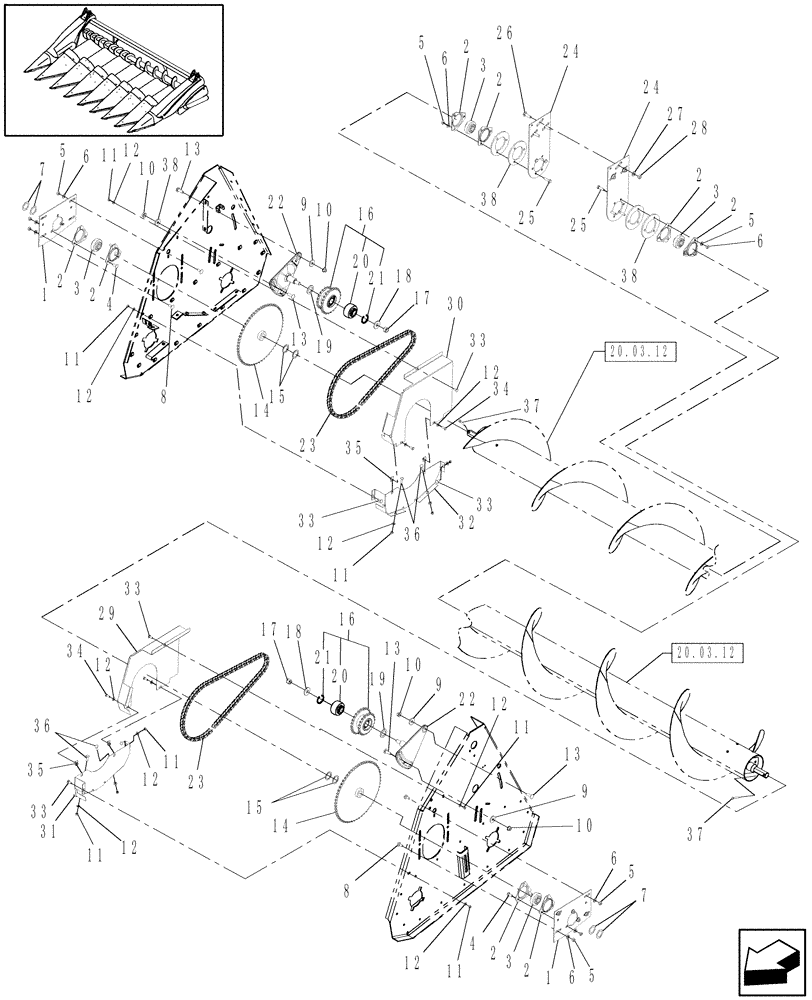

Запчасти Case IH 3412-22 (20.03.13) - AUGER DRIVE, DOUBLE, DRIVEN SIDE (58) - ATTACHMENTS/HEADERS

1

86634719

SUPPORT

2шт.

2

86620026

FLANGED BEARING

8шт.

3

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

4шт.

4

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

6шт.

5

100016

NUT,M10 x 1.5, Cl 8

20шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

7

86611850

WASHER

1-3/8" ID, 2" OD, 0.020" Thk

8ARшт.

8

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

9

195-81030

WASHER

17/32" ID, 1-1/2" OD, 3/16" Thk, Hardened

6шт.

10

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

11

9706690

NUT,M8 x 1.25, Cl 8

10шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

13

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

6шт.

14

87280073

SPROCKET

58T

2шт.

15

136065

WASHER

1-3/8" ID, 1-7/8" OD, 5/64" Thk

4шт.

16

87283922

SPROCKET ASSY.

24T x 20T

2шт.

17

412066

NUT,M16 x 2.0, Cl 8

2шт.

18

87317689

WASHER,18mm ID x 45mm OD x 4mm Thk

18mm ID, 45mm OD, 4mm, HTS

2шт.

19

87502359

WASHER

33mm ID, 60mm OD, 3.4mm Thk

2шт.

20

87283953

BALL BEARING,30.02mm ID x 62mm OD x 50mm W

Double Row, Angular Contact

2шт.

21

370012

RING,M62, Internal

2шт.

22

87284030

IDLER

Pivot

2шт.

23

87284075

CHAIN,#60, 84 Links x 19.05mm = 1600.2mm

#60, 84 Links, 63" Length, 1 Connector W/Spring Clips

2шт.

24

86614562

BRACKET

2шт.

25

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

26

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

3шт.

27

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

28

9706685

NUT,M12 x 1.75, Cl 8

7шт.

29

86613823

SHIELD

Upper, LH

1шт.

29

84138487

GUARD

Upper, LH

1шт.

341630 and 341820 Only

1шт.

30

86613826

SHIELD

Upper, RH

1шт.

30

84138483

GUARD

Upper, RH

1шт.

341630 and 341820 Only

1шт.

31

86636542

SHIELD

Lower, LH

1шт.

32

86636545

SHIELD

Lower, RH

1шт.

33

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8шт.

34

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

35

86508354

PUSH-ON NUT,M8 x 1.25

U-Spring, M8 x 1.25, 17mm x 25mm

4шт.

36

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

37

87041

COTTER PIN,1/4" x 1 3/4"

1шт.

38

86614656

PLATE

Spacer

4шт.
