Запчасти Case IH 3412-22 (20.03.01.02) - MAIN DRIVE FROM COMBINE, 16 ROW (58) - ATTACHMENTS/HEADERS

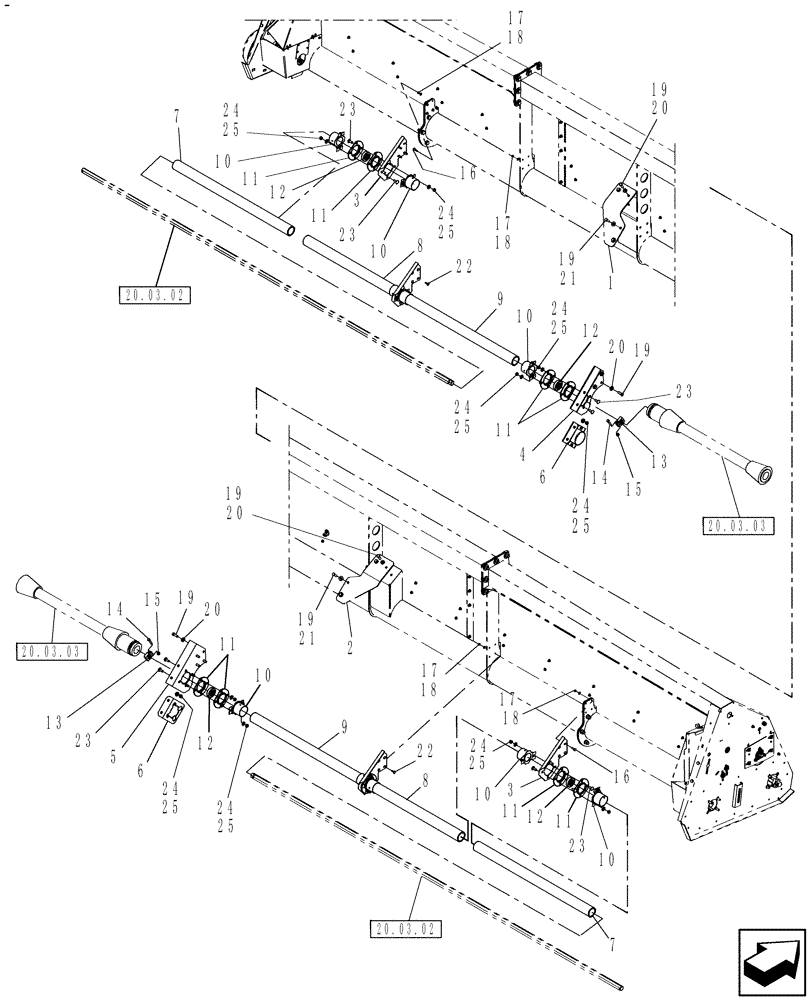

Схема запчастей Case IH 3412-22 - (20.03.01.02) - MAIN DRIVE FROM COMBINE, 16 ROW (58) - ATTACHMENTS/HEADERS
25
13
12
5
7
24
13
10
21
20
24
24
20.03.03
17
11
24
22
16
24
18
1
25
18
18
22
20
17
11
14
18
25
10
10
19
11
23
20
9
12
25
17
20.03.02
24
8
19
10
20
2
19
15
6
10
6
19
24
10
15
11
20.03.02
24
14
4
7
25
19
3
19
25
9
21
8
20.03.03
25
23
16
17
23
12
11
23
23
3
12
11
25

Артикул

Название

Примечание

Количество

1

87699285

BRACKET

LH

1шт.

2

87699289

BRACKET

RH

1шт.

3

84232042

MOUNT

Jack Shaft

4шт.

4

87699283

BRACKET

LH

1шт.

5

87699287

BRACKET

RH

1шт.

6

84257320

SHIELD

Main Mount

2шт.

7

87707606

SHIELD

Jack Shaft

2шт.

8

87707607

SHIELD

Jack Shaft

2шт.

9

87707605

SHIELD

Jack Shaft

2шт.

10

87707603

SHIELD

Flange

10шт.

11

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

Bearing

20шт.

12

86523785

BALL BEARING,31.78mm Hex x 80mm OD x 36.5mm W

10шт.

13

86611827

CLAMP,32.08mm - 35.16mm

Jack Shaft

2шт.

14

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

16

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

8шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

18

9706690

NUT,M8 x 1.25, Cl 8

16шт.

19

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

16шт.

20

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

13 x 28 x 5, HTS

12шт.

21

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

4шт.

22

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

23

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

32шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

32шт.

25

9706685

NUT,M12 x 1.75, Cl 8

32шт.

Выбрано товаров: 25
