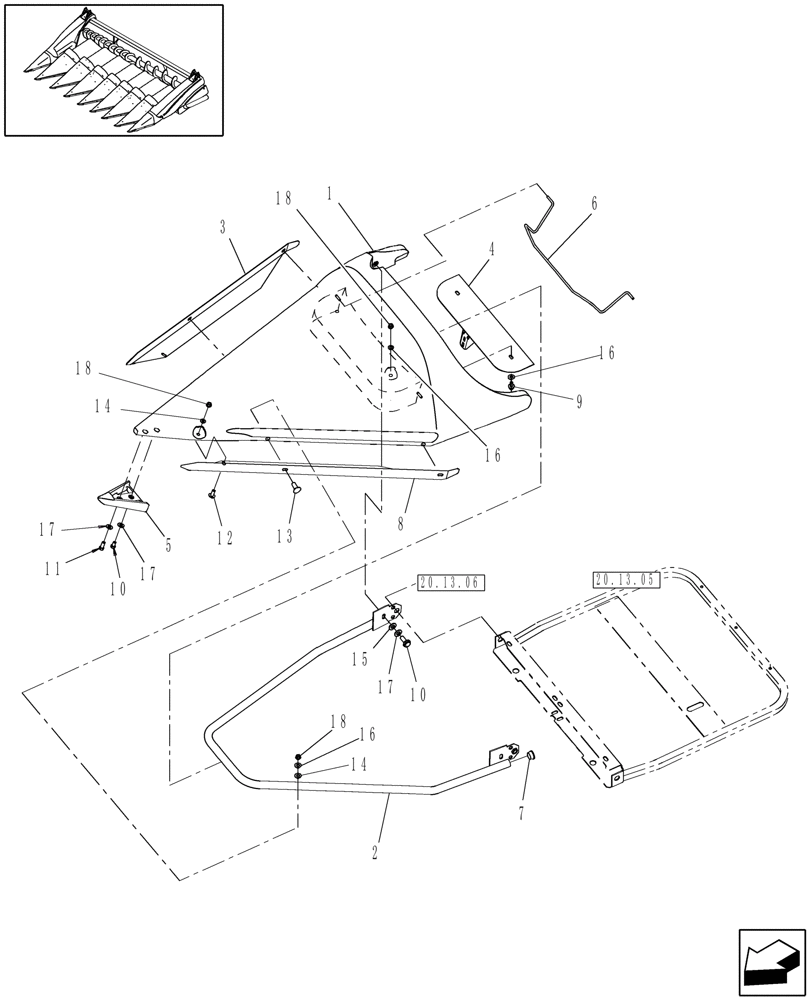

Запчасти Case IH 3408-70 (20.13.04) - INNER DIVIDERS, POINT, 36" & 38" (58) - ATTACHMENTS/HEADERS

1

86980209

POINT

1шт.

2

86729282

TUBE,763.70, 931.70 mm L

1шт.

3

86553712

WEAR STRIP

Wear Strip RH

1шт.

4

86583952

PLATE

1шт.

4

87020034

PLATE

Reinforced for AHHC

1шт.

5

87016332

POINT

1шт.

6

86536879

TUBE

Prop Snout

1шт.

7

86583879

PLUG

2шт.

8

86553711

WEAR STRIP

Wear Strip LH

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

13

86512421

CARRIAGE BOLT,Sq Nk, M8 x 60mm, Cl 8.8

4шт.

14

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

6шт.

15

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

18

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.
