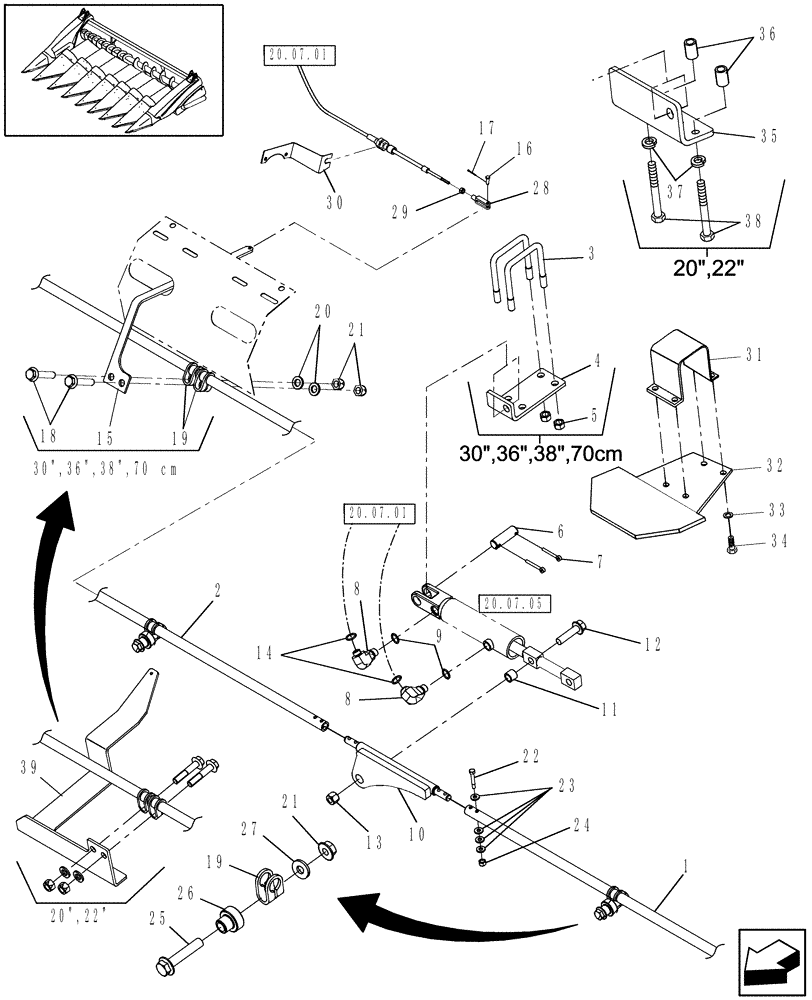

Запчасти Case IH 3408-70 (20.07.02) - HYDRAULIC CONTROL, DECK PLATES, CYLINDER, STRIPPER ADJUST RODS (58) - ATTACHMENTS/HEADERS

1

87580167

TUBE,19.05 mm OD x 950 mm L

LH, 6 Row 30"

1шт.

1

87696873

TUBE,19.05 mm OD x 12.77 mm ID x 2603 mm L

LH, 6 Row 70cm

1шт.

1

87580175

TUBE,19.05 mm OD x 3460 mm L

LH, 6 Row 36", 8 Row 70cm

1шт.

1

87541391

TUBE,12.77 mm ID x 19.05 mm OD x 1713 mm L

LH, 8 Row 30"

1шт.

1

87580169

TUBE,19.05 mm OD x 1307 mm L

LH, 8 Row 22"

1шт.

1

87696874

TUBE,19.05 mm OD x 12.77 mm ID x 4375 mm L

LH, 8 Row 36"

1шт.

1

87580176

TUBE,19.05 mm OD x 4628 mm L

LH, 8 Row 38"

1шт.

1

87576703

TUBE,19.05 mm OD x 3237 mm L

LH, 12 Row 30"

1шт.

1

87686705

TUBE,12.77 mm ID x 19.05 mm OD x 4761 mm L

LH, 16 Row 30"

1шт.

1

87580173

TUBE,19.05 mm OD x 2424 mm L

LH, 12 Row 22"

1шт.

1

87580172

TUBE,19.05 mm OD x 2222 mm L

LH, 12 Row 20"

1шт.

1

84254930

TUBE,19.05 OD x 5475 mm L

LH, 18 Row 20"

1шт.

2

87580174

TUBE,19.05 mm OD x 2851 mm L

RH, 6 Row 30"

1шт.

2

87580167

TUBE,19.05 mm OD x 950 mm L

RH, 6 Row 70cm

1шт.

2

87580168

TUBE,19.05 mm OD x 1155 mm L

RH, 6 Row 36" & 38"

1шт.

2

87576701

TUBE,19.05 mm OD x 3712 mm L

RH, 6 Row 38", 8 Row 30"

1шт.

2

87696873

TUBE,19.05 mm OD x 12.77 mm ID x 2603 mm L

RH, 8 Row 22"

1шт.

2

87580170

TUBE,19.05 mm OD x 1590 mm L

RH, 8 Row 70cm

1шт.

2

87580171

TUBE,19.05 mm OD x 2120 mm L

RH, 8 Row 36" & 38"

1шт.

2

87576702

TUBE,19.05 mm OD x 5136 mm L

RH, 12 Row 30"

1шт.

2

87686706

TUBE,12.77 mm ID x 19.05 mm OD x 4761 mm L

RH, 16 Row 30"

1шт.

2

87576701

TUBE,19.05 mm OD x 3712 mm L

RH, 12 Row 22"

1шт.

2

87580175

TUBE,19.05 mm OD x 3460 mm L

RH, 12 Row 20"

1шт.

2

84254932

TUBE,19.05 OD x 3270 mm L

RH, 18 Row 20"

1шт.

3

3951

U-BOLT

5/8" x 4-1/16" x 5-3/8"

2шт.

4

87686099

BRACKET

1шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

6

86596042

PIN,19.05mm OD x 57.2mm L

3/4" x 1-1/2"

1шт.

7

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

8

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

2шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10

84179366

SHAFT ASSY.

1шт.

11

67355

SPACER,.75" OD x 19/32" L

1шт.

12

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

13

87333862

NUT

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

15

87719935

BRACKET, SUPPORTING

30", 36", 38" & 70cm Row Spacing

1шт.

16

86596057

CLEVIS PIN,7.92mm OD x 16.78mm L

1шт.

17

86523849

COTTER PIN,1/16" x 3/4"

1шт.

18

844-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 8.8

2шт.

19

315839A1

COLLAR

8шт.

20

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

21

100038

NUT,M12 x 1.75, Cl 8

8шт.

22

58146

SHEAR BOLT

#12-24 x 1-1/2"

4шт.

23

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

16шт.

24

88015

LOCK NUT,Flg, #12

4шт.

25

844-12080

BOLT,Hvy Hex, M12 x 80mm, Cl 8.8

6шт.

26

378311A1

BUSHING

6шт.

27

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

28

86596023

YOKE

1шт.

29

87825

NUT,#10-32

3шт.

30

86596026

BRACKET

1шт.

31

86632268

BRACKET

1шт.

32

87726984

PLATE ASSY.

1шт.

33

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

34

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

35

87482935

PLATE ASSY.

1шт.

36

86596024

SPACER

2шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

38

86000020

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

39

84160060

BRACKET

20" & 22" Row Spacing

1шт.
