Запчасти Case IH 3406-30 (20.03.02) - MAIN DRIVE TO ROW UNITS (58) - ATTACHMENTS/HEADERS

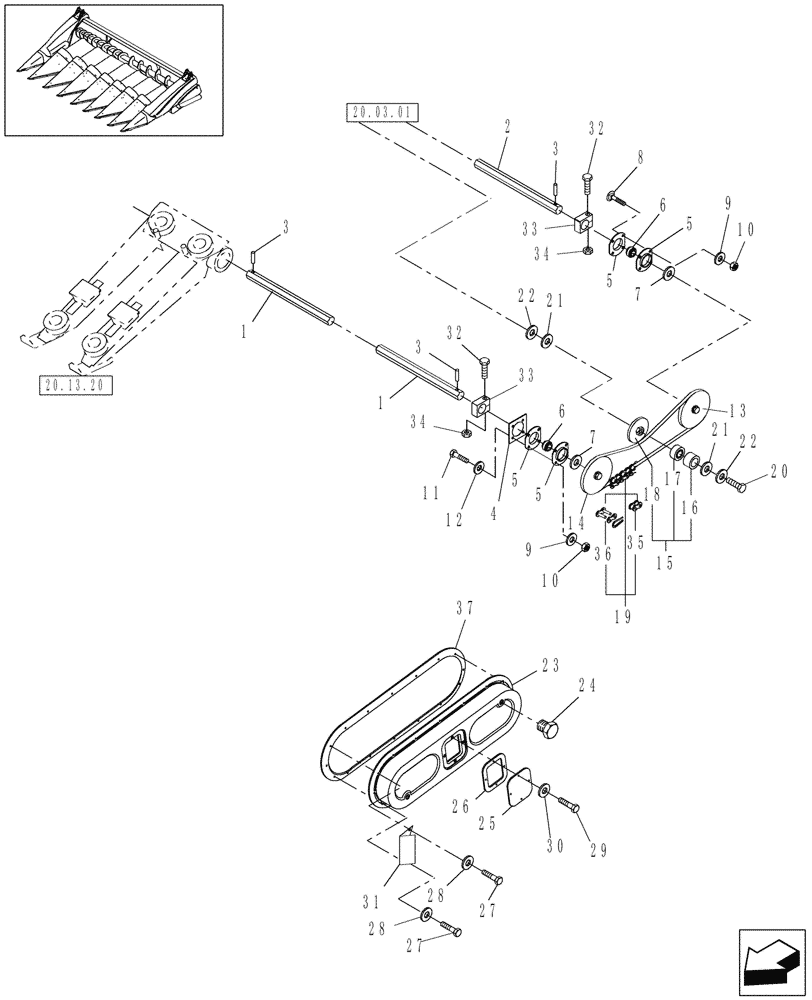

Схема запчастей Case IH 3406-30 - (20.03.02) - MAIN DRIVE TO ROW UNITS (58) - ATTACHMENTS/HEADERS
20.03.01
5
20
27
15
6
3
3
19
22
27
34
32
17
25
11
1
7
1
33
36
18
9
35
5
23
2
14
21
32
37
7
21
12
4
13
22
28
33
5
10
16
3
31
26
6
5
28
24
29
9
30
10
34
8
20.13.20

Артикул

Название

Примечание

Количество

1

86524067

SHAFT

6 Row 30"/70cm

1шт.

1

86563383

SHAFT

6 Row 36"/38"

1шт.

1

86549162

SHAFT

8 Row 22", LH & RH

2шт.

1

86543514

SHAFT

8 Row 30" & 12 Row 20", LH

1шт.

1

86543515

SHAFT

8 Row 30" & 12 Row 20", RH

1шт.

1

86563110

SHAFT

8 Row 70cm LH

1шт.

1

86563185

SHAFT

8 Row 70cm RH

1шт.

1

86532662

SHAFT

8 Row 36"/38" LH

1шт.

1

86532663

SHAFT

8 Row 36"/38" RH

1шт.

1

86524067

SHAFT

12 Row 30" LH

1шт.

1

86524064

SHAFT

12 Row 30" RH

1шт.

1

86548800

SHAFT

12 Row 22" LH

1шт.

1

86548799

SHAFT

12 Row 22" RH

1шт.

1

87657214

SHAFT

16 Row 30" LH

1шт.

1

87657215

SHAFT

16 Row 30" RH

1шт.

1

84270654

SHAFT

18 Row 20" LH

1шт.

1

84229793

DRIVE SHAFT

18 Row 20" RH

1шт.

2

87029331

PRIMARY SHAFT

6 Row 30"/70cm

1шт.

2

87029333

PRIMARY SHAFT

6 Row 36"/38"

1шт.

2

87029331

PRIMARY SHAFT

8 Row 22"

2шт.

2

87029277

PRIMARY SHAFT

8 Row 30", 12 Row 20"

2шт.

2

87029333

PRIMARY SHAFT

8 Row 70cm

2шт.

2

87029335

PRIMARY SHAFT

8 Row 36"/38"

2шт.

2

87029337

PRIMARY SHAFT

12 Row 22"

2шт.

2

87029339

PRIMARY SHAFT

12 Row 30"

2шт.

2

87657263

SHAFT

16 Row 30"

2шт.

2

84229790

DRIVE SHAFT

18 Row 20"

2шт.

3

88182

COTTER PIN,1/4" OD x 2" L

4шт.

4

87109883

PLATE

Flange

1шт.

5

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

80 mm, Model Year 2010 And Prior

1шт.

5

84314678

FLANGE

Bearing, 80 mm, Model Year 2011

1шт.

6

86523785

BALL BEARING,31.78mm Hex x 80mm OD x 36.5mm W

6 Row, 8 Row 22/30"

2шт.

6

86523785

BALL BEARING,31.78mm Hex x 80mm OD x 36.5mm W

8 Row 36/38", 12, 16 & 18 Row

4шт.

7

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1-17/32" x 2-3/8" x 0.035" Qty [2] 6 Row

4шт.

8

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

10

9706685

NUT,M12 x 1.75, Cl 8

1шт.

11

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

Model Year 2010 And Prior

1шт.

12

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

Model Year 2010 And Prior

1шт.

12

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

Model Year 2011

1шт.

13

47433464

SPROCKET

24T, Is Used with 86614271 for a 1044 RPM Speed.

2шт.

13

86524051

DRIVING SPROCKET

28T, 6, 12, 16 & 18 Row

2шт.

13

86524052

DRIVING SPROCKET

34T, 8 Row, Model Year 2010 And Prior

2шт.

13

84410256

SPROCKET

Driving, 36T, 8 Row, Model Year 2011

2шт.

14

47433462

SPROCKET

19T, Is Used with 84410253 for a 1025 RPM Speed

2шт.

14

86524049

DRIVING SPROCKET

25T, 6, 12, 16 & 18 Row, Model Year 2010 And Prior

2шт.

14

84410253

SPROCKET

20T, 6, 12, 16 & 18 Row, Model Year 2011

2шт.

14

86524048

DRIVING SPROCKET

30T, 8 Row, Model Year 2010 And Prior

2шт.

14

86614233

SPROCKET ASSY.

26T, 8 Row, Model Year 2011

2шт.

15

86619245

SPROCKET ASSY.,15T

15T, 6, 12, 16 & 18 Row, 15T

1шт.

15

86619126

SPROCKET ASSY.,15T

15T, 8 Row, Integral Bearing

2шт.

16

45396

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

6, 12,16 & 18 Row

1шт.

17

84130591

SPACER

6, 12, 16 & 18 Row

1шт.

18

768197

SPROCKET ASSY.

15T, 6, 12, 16 & 18 Row

1шт.

19

87000840

CHAIN

#80, 77", 6 Row, Model Year 2010 And Prior

1шт.

19

84406445

CHAIN

#80, 74", 6 Row, Model Year 2011

1шт.

19

87000840

CHAIN

#80, 77", 12, 16 & 18 Row

2шт.

19

84406445

CHAIN

#80, 74", 12, 16 & 18 Row

2шт.

19

NNA87000841

CHAIN,98 Links x 19.05mm = 1866.9mm

#60, 73-1/2", 8 Row

2шт.

20

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

2шт.

21

86900752

WASHER

0.667" x 1-5/16" x 0.075"

2шт.

22

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

8шт.

23

86620907

SHIELD

Qty [1] 6 Row, See Figure Note

2шт.

24

214389

PLUG,3/4" - 16 ORB

1шт.

25

86524309

COVER

1шт.

26

86551857

GASKET,6.35mm Thk

1шт.

27

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Model Year 2010 And Prior

1шт.

27

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

Model Year 2011

1шт.

28

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

29

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

31

86544460

SHIELD

6 Row 36"/70cm, 8 Row 36", Model Year 2010 And Prior

1шт.

32

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

33

86611827

CLAMP,32.08mm - 35.16mm

1шт.

34

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

35

86977428

CONNECTING LINK

#80, Offset, 6, 12, 16 & 18 Row

1шт.

36

288063

CONNECTING LINK

#80 W/Spring Clip, 6, 12, 16 & 18 Row

1шт.

36

165590

CONNECTING LINK

#60 W/Spring Clip, 8 Row

1шт.

37

87655408

SEAL

Gasket, 6 Row

1шт.

37

87655408

SEAL

Gasket, 8, 12, 16 & 18 Row

2шт.

Выбрано товаров: 80
