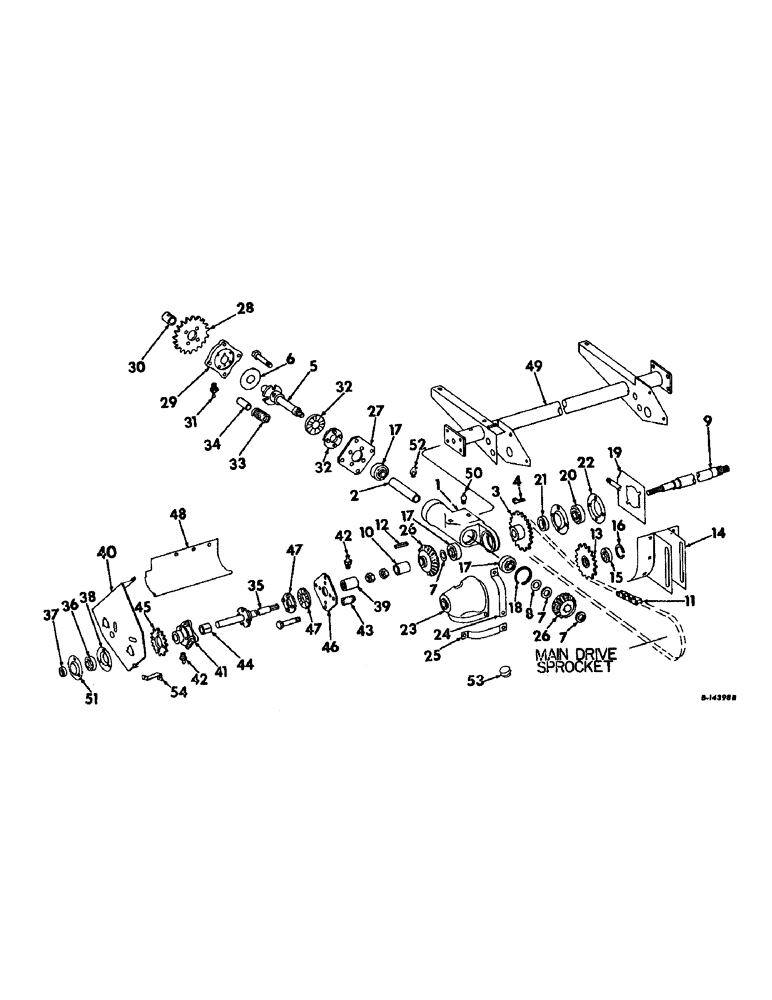

Запчасти Case IH 329WN (E-09) - MAIN DRIVE (58) - ATTACHMENTS/HEADERS

1

155245C2

CASE, main drive gear, for relube brg

2шт.

1

589770R1

CASE, main drive gear, not relube brg

1шт.

15208R1

BOLT, 5/8 x 4 sq-nk crg

4шт.

102639

NUT,5/8"-11, G5

4шт.

443804

SCREW, 1/4-28 x 1/4 slt-ov-pt hdls set

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

156001C1

SPACER, gear case, 5-9/32 in long, for relube brg

2шт.

2

589771R1

SAPCER, gear case, 6-9/32 in long, not relube brg

1шт.

3

939039R91

SPROCKET ASSY, main driven

1шт.

4

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 tapered gib

1шт.

5

589533R92

SHAFT ASSY, main drive

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

131035

LOCK, 1 1/4"

2шт.

585556R1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

21/32 x 1-1/2 x 3/16

2шт.

6

628611R1

WASHER, 1-9/32 x 3-1/2 x 16 ga

1шт.

MAIN DRIVE SHAFT

2шт.

7

589782R1

THRUST WASHER

main drive bevel pinion

8шт.

8

589783R1

SHIM, main drive bevel gear

4шт.

9

155227C1

SHAFT, main drive center, for relube brg

1шт.

9

589776R1

JACKSHAFT, center section, not relube brg

1шт.

589780R1

NUT, 1-1/4-12 hex lock

4шт.

IH219779

NUT

1-1/2-12 hex jam

1шт.

172208C1

NUT, 1-1/2-12 hex lock

1шт.

10

589536R1

SPACER JACKSHAFT

2шт.

11

CHAIN, main drive roller, use 177 links from 10-ft roll marked 1793D, one connecting link 1317D and two offset connecting links 1318D

1шт.

12

577147R1

KEY

5/16 x 1-3/16 sq parallel

2шт.

13

632125R1

SPROCKET, main drive idler

1шт.

14

589540R91

SUPPORT ASSY, idler sprocket

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

6шт.

103321

LOCK WASHER,3/8"

WASHER, 5/16 med lock

6шт.

15

580095R91

BALL BEARING

BEARING ASSY, idler sprocket ball

1шт.

16

555602R1

RING

idler sprocket bearing snap

1шт.

17

614617R91

BEARING ASSY, main drive gear case relube ball

6шт.

17

587015R91

BALL BEARING

ASSY, main drive gear, not relube brg

6шт.

18

512889R1

RING

stalk roll drive shaft snap, for relube brg

2шт.

18

45650D

RETAINER

RING, stalk roll drive snap, not relube brg

2шт.

19

589777R91

BRACKET ASSY, main drive shaft brg

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10 sltd-hex

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

20

664175R91

BALL BEARING

BEARING ASSY, main drive shaft ball

1шт.

21

455112R11

COLLAR

W/SET SCREW, main drive shaft

1шт.

22

663562R1

FLANGE

main drive shaft brg

2шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

Q5035

WASHER

17/32 x 1 x 16 ga

4шт.

23

155244C3

COVER, gear case, for use w/155245C2 gear case

2шт.

23

631434R1

COVER, gear case, for use w/589770R1 gear case

2шт.

24

155243C1

STRAP, gear case cover lower, for use w/155245C2 gear case

4шт.

24

631435R1

STRAP, gear case cover lower, for use w/589770R1 gear case

4шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

631436R2

STRAP, gear case cover upper

4шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

6шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

26

165647C91

GEAR WHEEL

GEAR SET, stalk roll drive bevel

1шт.

27

629870R1

RETAINER

FLANGE, stalk roll drive slip clutch

2шт.

28

575915R2

SPROCKET, stalk roll drive, 25T

2шт.

29

575787R21

HOUSING ASSY, stalk roll drive slip clutch, includes ref no. 30

2шт.

587423R1

BOLT

1/2 x 4-1/4 dld hex-hd mach

8шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

3/8 x 1-1/2 no. 3 plow

8шт.

102635

NUT,3/8"-16, G5

8шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 sltd hex

8шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

8шт.

30

575789R1

BUSHING

slip clutch housing

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS str-lub

2шт.

32

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

4шт.

33

584007R1

SPRING

slip clutch

8шт.

34

631581R1

SPACER

slip clutch spring

8шт.

35

939029R91

SHAFT ASSY, main drive outer, 28, 30 and 32 inch row spacing

2шт.

35

9390452R91

SHAFT ASSY, main drive outer, 38 and 40 inch row spacing

2шт.

36

939475R91

BEARING

ASSY, main drive shaft outer relube ball

2шт.

36

455960R91

BALL BEARING

BEARING ASSY, amin drive shaft outer ball, not relube brg

2шт.

37

557115R11

COLLAR

COLLAR W/SET SCREW MAIN DRIVE SHAFT LKG

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup pt set

2шт.

38

939461R1

FLANGE

beater driven sprkt brg, for relube brg

2шт.

38

571425R1

FLANGED BEARING

main drive shaft outer brg, not relube brg

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

39

589690R1

COUPLING

main drive shaft

2шт.

40

939030R93

BRACKET ASSY, gatherer drive LH

1шт.

40

939031R93

BRACKET ASSY, gatherer drive RH, 328WN serial no. 1267 and below, 329WN serial no. 1270 and below

1шт.

40

166015C91

BRACKET ASSY, gatherer drive LH

1шт.

40

166016C91

BRACKET ASSY, gatherer drive RH, 328WN serial no. 1268 and above, 329WN serial no. 1271 and above

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

41

589471R91

RETAINER ASSY, gatherer slip clutch, includes ref no. 44

2шт.

587423R1

BOLT

1/2-13 x 4-1/4 hex-hd mach

8шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 sltd hex

8шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

8шт.

Q5035

WASHER

17/32 x 1 x 16 ga

8шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

4шт.

43

NLS

NO LONGER SERVICED

slip clutch

8шт.

44

574294R1

BUSHING

slip clutch ratchet

2шт.

45

587228R1

SPROCKET, gatherer drive 18T

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

46

629870R1

RETAINER

FLANGE, slip clutch

2шт.

47

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

4шт.

48

939044R1

SHIELD, gatherer slip clutch LH, 28, 30 and 32 inch row spacing

1шт.

48

939046R1

SHIELD, gatherer slip clutch LH, 38 and 40 inch row spacing

1шт.

48

939045R1

SHIELD, gatherer slip clutch RH, 38 and 40 inch row spacing

1шт.

48

939047R1

SHIELD, gatherer slip clutch RH, 38 and 40 inch row spacing

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

102635

NUT,3/8"-16, G5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

4шт.

49

939027R91

PIPE ASSY, torque, 328WN corn head

1шт.

49

939048R92

PIPE ASSY, torque, 329WN corn head

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

17273R1

BOLT, 5/8 x 4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

4шт.

102639

NUT,5/8"-11, G5

2шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

50

126131

FITTING

1/4-28 str lube

2шт.

51

939460R91

FLANGE

W/65 DEG FITTING, brg

4шт.

51

571425R1

FLANGED BEARING

main drive shaft outer brg, not relube brg

2шт.

52

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg lube

2шт.

53

464197R1

PLUG

gear case cover

2шт.

54

159974C1

SUPPORT, gatherer drive bracket, 328WN serial no. 1267 and below, 329WN serial no. 1270 and below

2шт.

54

166020C1

SUPPORT, gatherer drive bracket, 328WN serial no. 1268 and above, 329WN serial no. 1271 and above

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
