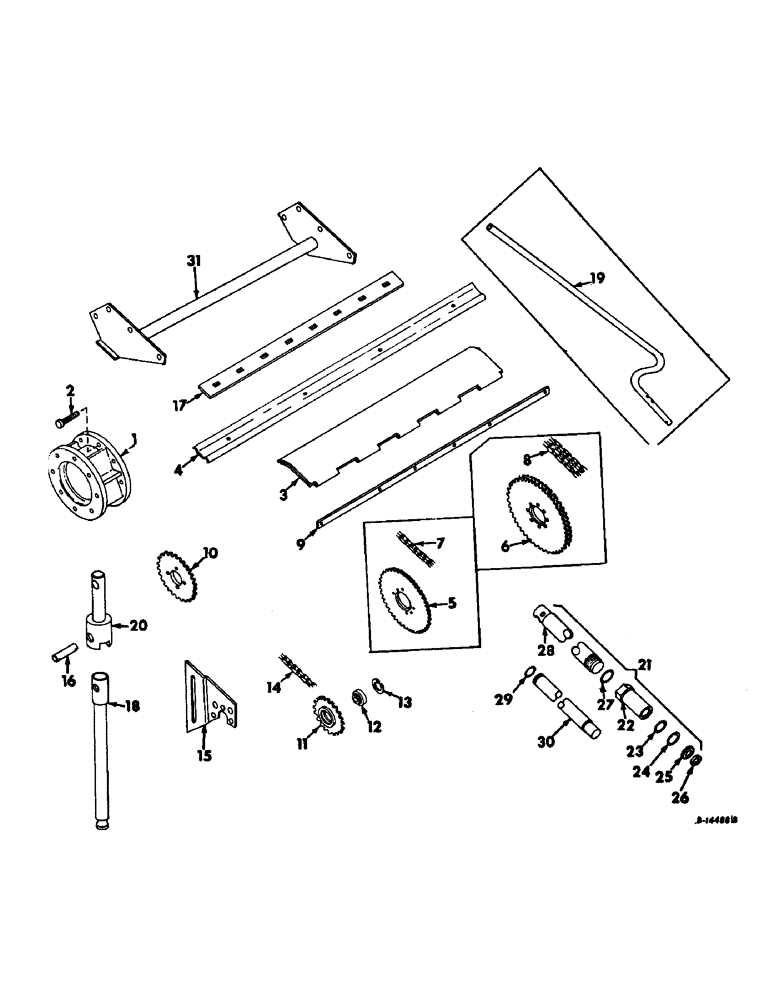

Запчасти Case IH 329WN (E-27) - COMPLETING PARTS (58) - ATTACHMENTS/HEADERS

1

654676R11

SPACER W/BOLT WHEEL, includes ref no. 2, 328WN 38 and 40 inch row spacing

2шт.

2

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

wheel spacer, 328WN 38 and 40 inch row spacing

16шт.

554480R1

WHEEL NUT

5/8 wheel bolt

16шт.

3

632397R91

EXTENSION ASSY, concave front, 328WN

1шт.

3

629649R91

EXTENSION ASSY, concave front, 329WN

1шт.

4

633621R1

BAR, cylinder filler, 303 combine

8шт.

4

633611R1

BAR

cylinder filler, 403 combine

8шт.

120369

NUT,3/8"-24, G5

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/8 x 1 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

564474R2

SPROCKET ASSY.

SPROCKET, cylinder drive 43T, 328WN

1шт.

6

569202R2

DRIVE SPROCKET

SPROCKET, cylinder drive 43T, 329WN

1шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 hex-hd mach

8шт.

7

CHAIN, cylinder drive extension roller, 328WN, use 7 links from 10-ft roll marked 1793D, 3 connecting links 1786D and one two pitch combination offset link 570036R91

1шт.

8

CHAIN, cylinder drive extension roller, 329WN, use 7 links from 10-ft roll marked 1355D, 3 connecting links 569206R91 and one two pitch combination offset link 570036R91

1шт.

9

632402R1

RETAINER, concave front extension hinge, 303 combine

1шт.

9

632403R1

BAR

RETAINER, concave front extension hinge, 403 combine

1шт.

86837293

SHAFT

1/2 x 1 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

150151C1

SPROCKET, feeder drive plate 26T, not for use w/electric clutch

1шт.

11

632125R1

SPROCKET, feeder drive plate idler 20T, not for use w/electric clutch

1шт.

12

580095R91

BALL BEARING

BEARING ASSY, feeder idler sprocket ball, not for use w/electric clutch

1шт.

13

555602R1

RING

idler sprocket brg snap, not for use w/electric clutch

1шт.

14

CHAIN, feeder drive roller, not for use w/electric clutch, use 123 links from 10-ft rolls marked 1793D, 1 connecting link 1789D and 1 offset link 1318D

1шт.

15

170694C1

SUPPORT, feeder drive tightener sprocket, 303 and 403 combines, not for use w/electric clutch

1шт.

22861R1

BOLT, 7/8 x 3 C-Z sq-nk crg

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2 x 1 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

131047

WASHER,7/8"

7/8"

1шт.

21041R1

WASHER

17/32 x 2 x 16 ga C-Z

1шт.

21747R1

WASHER,1.22" ID x 2" OD x 0.07" Thk

1-7/32 x 2 x 16 ga C-Z

3шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

4шт.

16

564986R1

PIN, cylinder lift extension, 303 combine serial no. 9428 and above

2шт.

16

569335R1

PIN, cylinder lift extension, 303 combine serial no. 9427 and below

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

4шт.

17

153180C1

STRAP, grate finger tie, 328WN

2шт.

17

153181C1

STRAP, grate finger tie, 329WN

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

18

568579R91

EXTENSION ASSY, cylinder lift, 303 combine serial no. 9427 and below

2шт.

18

150183C91

EXTENSION ASSY, cylinder lift, 303 combine serial no. 9428 and above

2шт.

19

589793R2

PIPE, stalk roll control lever, 303 combine serial nos. 7278 thru 9427, 403 combine serial nos. 7224 thru 9956 and 503 combine serial nos. 2431 thru 3250

1шт.

20

150560C91

EXTENSION ASSY, cylinder lift upper, 303 combine serial no. 9427 and below

2шт.

21

383762R92

CYLINDER ASSY, platform lift, 303 combine serial no. 9427 and below

2шт.

22

383778R11

HEAD

ASSY, rod end

1шт.

23

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16

2шт.

24

378726R1

BACK-UP RING

piston rod back-up

2шт.

25

383783R1

SEAL

SEAL, piston rod dust

2шт.

26

383779R1

RETAINER

piston rod seal

2шт.

27

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32

2шт.

28

383775R11

TUBE W/HEAD ASSY, cylinder 17.87" Length

2шт.

29

378752R1

RING, PISTON

STOP RING, piston rod

2шт.

30

383780R1

ROD, piston

2шт.

31

170610C1

BRACKET ASSY, feeder hitch lift, 329WN serial no. 1414 & above, on 403 combine w/feeder hitch

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

4шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 znd hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.
