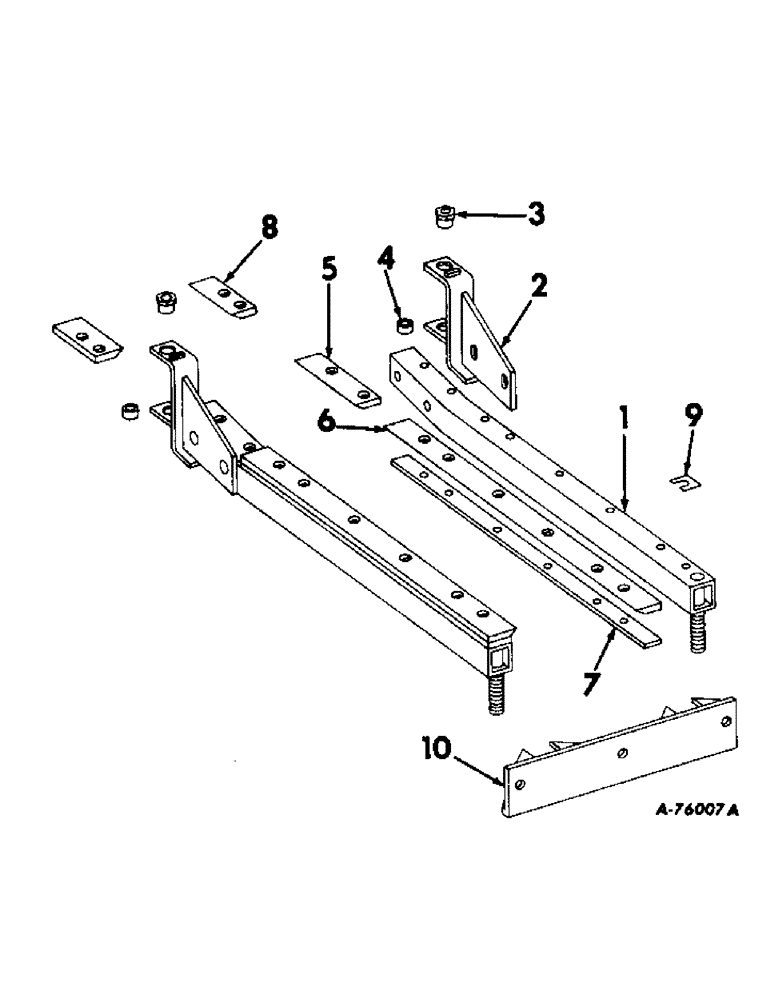

Запчасти Case IH 329WN (E-26) - WEED KNIFE ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

631034R91

PIPE ASSY, weed knife retainer LH

1шт.

1

631035R91

PIPE ASSY, weed knife retainer RH

1шт.

632600R1

NUT, 3/4-10 nylock hex

12шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

12шт.

2

631025R91

BRACKET ASSY, weed knife front LH

3шт.

2

631026R91

BRACKET ASSY, weed knife front RH

3шт.

15109R1

SCREW,Sq Nk, 7/16" - 14 x 2 1/2", Gr 1

BOLT, 7/16-14 x 2-1/2 sq-nk crg

12шт.

271500

SOCKET

7/16-14 hex

18шт.

186355

ARM

SCREW, 1/2-20 x 4-1/2 hex-hd cap

6шт.

102908

BOLT

SCREW, 7/16-14 x 1-1/4 sq-hd cup pt set

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

PO105341/2

WASHER, 15/32 x 1-1/2 x 11 ga

12шт.

3

589962R1

NUT

weed knife front bracket

6шт.

4

576254R1

SPACER, weed knife front bracket inner

6шт.

5

589966R1

KNIFE, center LH weed

3шт.

5

589967R1

KNIFE, center RH weed

3шт.

15642R1

BOLT,3/8"-16 x 2 1/2", G2

3/8-16 x 2-1/2 no 3 plow

12шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

6

589968R1

KNIFE, rear weed

6шт.

15656R1

BOLT

3/8 x 2-3/4 no 3 plow

36шт.

102635

NUT,3/8"-16, G5

36шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

36шт.

7

935650R1

STRAP, rear weed knife

6шт.

8

589698R1

KNIFE, front LH weed

3шт.

8

589699R1

KNIFE ASSY

KNIFE, front RH weed

3шт.

15563R1

BOLT,3/8"-16 x 1 1/4", G2, Full Thd

PLOW, (#3) 3/8"-16 x 1 1/4", G2, Full Thd

12шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

9

589713R1

SHIM

WASHER, weed knife

120шт.

10

631031R91

ANGLE ASSY, weed knife pivot

3шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

9шт.

102637

NUT,1/2"-13, G5

9шт.

1033323

HUB

WASHER, 1/2 med lock

9шт.
