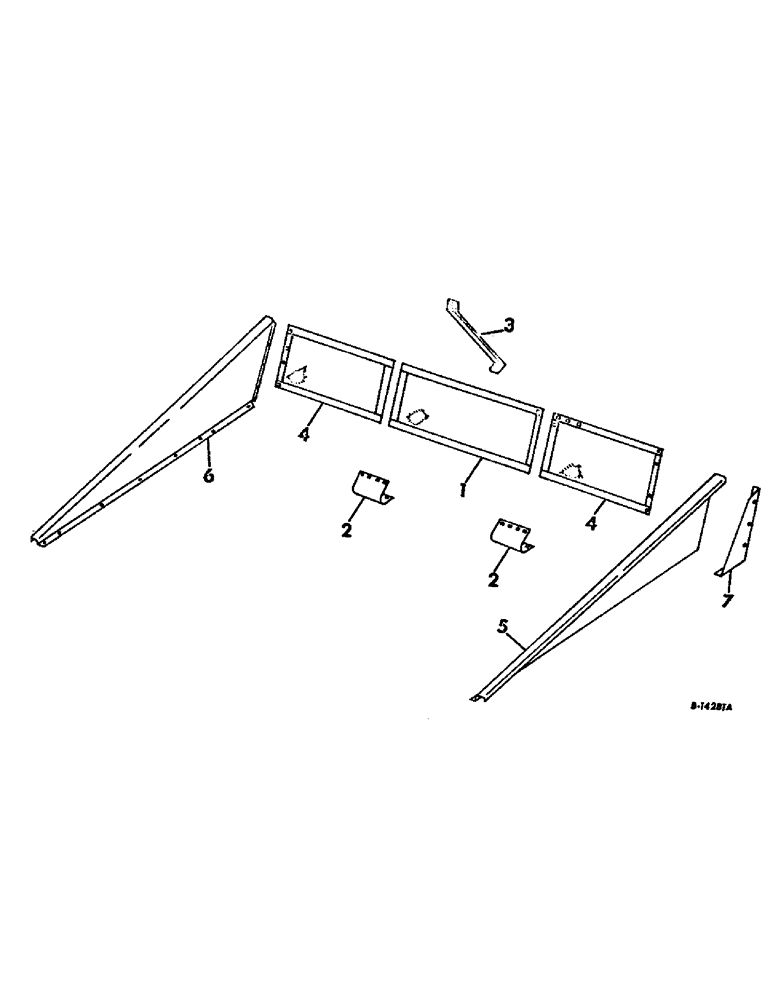

Запчасти Case IH 329WN (E-23) - GATHERER EXTENSION (58) - ATTACHMENTS/HEADERS

1

939185R91

SCREEN ASSY, gatherer extension center, 28, 30 and 32 inch row spacing

1шт.

1

150362C91

SCREEN ASSY, gatherer extension center, 38 and 40 inch row spacing, 328WN serial no. 1282 and below, 329WN serial no. 1315 and below

1шт.

1

163151C91

SCREEN ASSY, gatherer extension center, 28, 30 and 32 inch row spacing

1шт.

1

163157C91

SCREEN ASSY, gatherer extension center, low silhouette corn heads, 38 and 40 inch row spacing, 328WN serial no. 1283 and above, 329WN serial no. 1316 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

2

151377C2

REINFORCEMENT, gatherer extension, 328WN serial no. 1282 and below, 329WN serial no. 1315 and below

2шт.

2

632416R2

REINFORCEMENT, gatherer extension, low silhouette corn heads, 328WN serial no. 1283 and above, 329WN serial no. 1316 and above

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

6шт.

3

151376C1

BRACE, gatherer extension, 328WN serial no. 1282 and below, 329WN serial no. 1315 and below

3шт.

3

161000C1

BRACE, gatherer extension, low silhouette corn heads, 328WN serial no. 1283 and above, 329WN serial no. 1316 and above

3шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

4

632405R91

SCREEN ASSY, gatherer extension outer, 328WN serial no. 1282 and below, 329WN serial no. 1315 and below

2шт.

4

163159C91

SCREEN ASSY, gatherer extension outer, low silhouette corn heads, 328WN serial no. 1283 and above, 329WN serial no. 1316 and above

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

20шт.

120376

NUT,5/16"-18, G5

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

5

151370C91

SHIELD ASSY, gatherer extension LH, 328WN serial no. 1282 and below, 329WN serial no. 1315 and below

1шт.

5

159995C2

SHIELD, gatherer extension LH, low silhouette corn heads, 328WN serial no. 1283 and above, 329WN serial no. 1316 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

10шт.

6

151371C91

SHIELD ASSY, gatherer extension, 328WN serial no. 1282 and below, 329WN serial no. 1315 and below

1шт.

6

159996C2

SHIELD, gatherer extension RH, low silhouette corn heads, 328WN serial no. 1283 and above, 329WN serial no. 1316 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

10шт.

7

151378C1

REINFORCEMENT, gatherer extension LH shield

1шт.

7

151379C1

REINFORCEMENT, gatherer extension RH shield, 328WN serial no. 1282 and below, 329WN serial no. 1315 and below

1шт.

7

159997C1

REINFORCEMENT, gatherer ext shield LH

1шт.

7

159998C1

REINFORCEMENT, gatherer ext shield RH, low silhouette corn heads, 328WN serial no. 1283 and above, 329WN serial no. 1316 and above

1шт.
