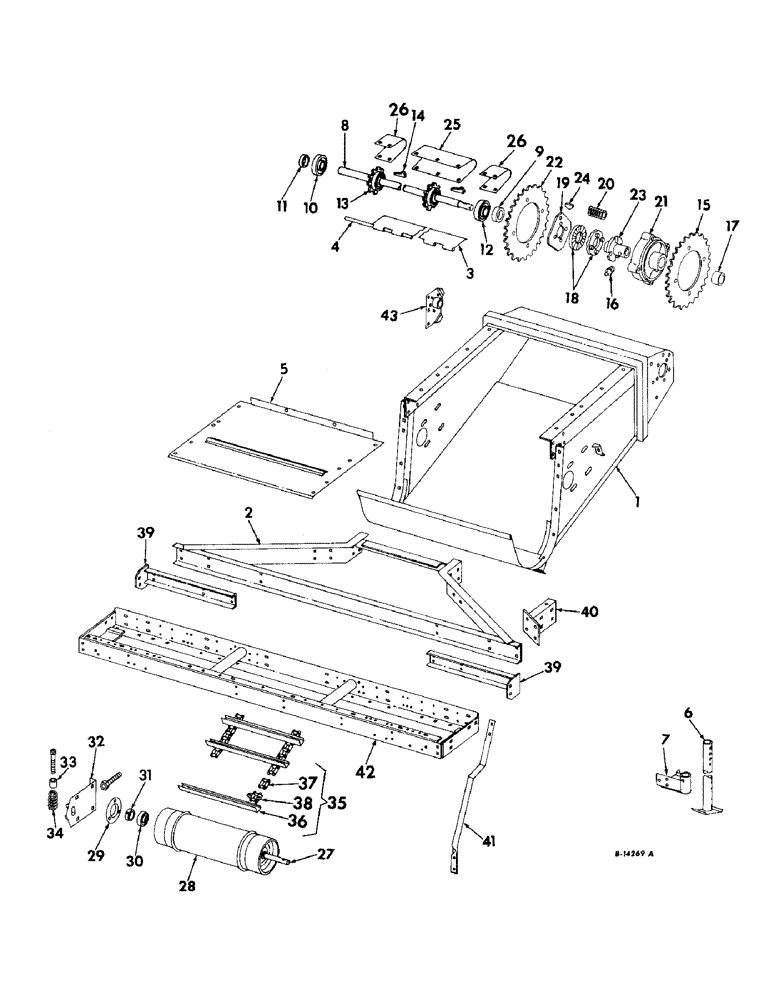

Запчасти Case IH 329N (C-02) - FEEDER FRAME, LIFT, STAND AND FEED CONVEYOR (58) - ATTACHMENTS/HEADERS

1

938901R91

HOUSING ASSY, feeder, 328N corn head

1шт.

BOLT, 7/16-14 x 1 hex-hd mach

8шт.

NUT, 7/16-14

8шт.

WASHER, 7/16 med lock

8шт.

1

938900R91

HOUSING ASSY, feeder, 329N corn head

1шт.

BOLT, 7/16-14 x 1 hex-hd mach

8шт.

NUT, 5/16-18 hex

1шт.

NUT, 7/16-14 hex

8шт.

SCREW, 5/16-18 x 1 slt-truss-hd mach

1шт.

WASHER, 5/16 med lock

1шт.

WASHER, 7/16 med lock

8шт.

2

938940R91

FRAME ASSY, feeder extension

1шт.

BOLT, 7/16-14 x 1 short-sq-nk crg

1шт.

NUT, 7/16-14 hex

8шт.

WASHER, 7/16 med lock

8шт.

3

939095R91

EXTENSION ASSY, feeder frame bottom, 328N corn head

1шт.

3

589305R11

EXTENSION ASSY, feeder frame bottom, 329N corn head

1шт.

4

629006R1

ROD, feeder frame bottom extension hinge, 328N corn head

1шт.

4

589386R1

ROD

feeder frame bottom extension hinge, 329N corn head

1шт.

5

938928R91

SECTION ASSY, feeder cover, 328N corn head

1шт.

5

938927R91

SECTION ASSY, feeder cover, 329N corn head

1шт.

BOLT, 5/16-18 x 3/4 short-sq-nk crg

2шт.

BOLT, 5/16-18 x 1/2 short-sq-nk crg

4шт.

BOLT, 7/16-14 x 1-1/4 hex-hd mach

2шт.

NUT, 5/16-18 hex

2шт.

NUT, 7/16-14 hex

2шт.

WASHER, 5/16 med lock

6шт.

WASHER, 7/16 med lock

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

6

589573R91

STAND ASSY

2шт.

7

589576R91

HOLDER ASSY, stand LH

1шт.

7

589577R91

HOLDER ASSY, stand RH

1шт.

BOLT, 1/2-13 x 1-1/4 short-sq-nk crg

12шт.

NUT, 1/2-13 hex

12шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot

2шт.

8

150528C1

SHAFT ASSY, feeder conveyor, 328N corn head

1шт.

8

935857R1

SHAFT ASSY, feeder conveyor, 329N corn head

1шт.

10495D

NUT

3/4-16 slt hex jam

1шт.

PIN, 1/8 x 1-1/2 cot

1шт.

WASHER, 1-1/4 med lock

1шт.

Q5099

WASHER

25/32 x 1-3/4 x 11 ga

1шт.

9

557113R11

COLLAR

W/SET SCREW, lkg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

1шт.

10

256557R91

BEARING

feeder conveyor shaft ball

1шт.

11

557113R11

COLLAR

W/SET SCREW, lkg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

1шт.

12

256557R91

BEARING

feeder conveyor shaft ball

1шт.

13

937243R1

SPROCKET, feeder conveyor drive, 11T, 2 used 328N corn head, 3 used 329N corn head

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 hex-soc-hd cup-pt set

4шт.

14

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib, 2 used 328N corn head, 3 used 329N corn head

2шт.

15

936304R1

SPROCKET, feeder driven 38T

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-18 NS-3/4 str lub

1шт.

17

18519K

BUSHING

feeder driven sprocket hub

1шт.

18

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

19

589311R1

RETAINER, feed conveyor

1шт.

BOLT, 1/2-13 x 3-3/4 dls-sq-nk crg

4шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 slt hex

4шт.

PIN, 3/32 x 1 cot

4шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

4шт.

20

311

SPRING

feeder conveyor drive slip clutch

4шт.

21

589384R1

HUB ASSY, feeder driven, includes ref no. 17

1шт.

22

936304R1

SPROCKET, feeder driven 38T

1шт.

BOLT, 3/8-16 x 2-3/4 hex-hd mach

4шт.

NUT, 3/8-16 hex

4шт.

WASHER, 3/8 med lock

4шт.

23

589379R91

HUB

HOLDER, feeder conveyor drive slip clutch

1шт.

PIN, 1/8 x 3/4 cot

1шт.

V4941/2

PIN

5/16 x 2 cot

1шт.

24

117988

KEY

5/16 x 2-1/8 no 28 Woodruff

1шт.

25

938983R1

SHIELD, feeder drive shaft center, 328N corn head

1шт.

BOLT, 5/16-18 x 1/2 short-sq-nk crg

8шт.

NUT, 5/16-18 hex

8шт.

WASHER, 5/16 med lock

8шт.

25

937165R1

SHIELD, feeder shaft center, 329N corn head

2шт.

BOLT, 5/16-18 x 1/2 short-sq-nk crg

4шт.

NUT, 5/16-18 hex

4шт.

WASHER, 5/16 med lock

4шт.

26

938982R1

SHIELD, feeder shaft end, 328N corn head

2шт.

26

937166R1

SHIELD, feeder shaft end, 329N corn head

2шт.

BOLT, 5/16-18 x 1/2 short-sq-nk crg

8шт.

NUT, 5/16-18 hex

8шт.

WASHER, 5/16 med lock

8шт.

27

938991R1

SHAFT, feeder conveyor drum, 328N corn head

1шт.

27

938990R1

SHAFT, feeder conveyor drum, 329N corn head

1шт.

28

938980R91

DRUM ASSY, feeder conveyor, 328N corn head

1шт.

28

589363R91

DRUM ASSY, feeder conveyor, 329N corn head

1шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex

6шт.

WASHER, 7/16 med lock

6шт.

29

629958R1

FLANGE

conveyor drum brg

2шт.

30

564991R91

BEARING

ASSY, conveyor drum ball

2шт.

31

658006R11

COLLAR

W/SET SCREW, lkb

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt

2шт.

32

938977R91

BRACKET ASSY, feeder conveyor drum support LH

1шт.

32

938978R91

BRACKET ASSY, feeder conveyor drum support RH

1шт.

BOLT, 3/8-16 x 3/4 short-sq-nk crg

8шт.

461189R2

SCREW, 7/16-114 x 3-3/4 hex-hd cap

2шт.

NUT, 3/8-16 hex

8шт.

NUT, 7/16-14 hex

6шт.

WASHER, 3/8 med lock

8шт.

33

H39274

SPACER,1/2" Pipe x 1 1/2"

conveyor drum adjusting bolt

2шт.

34

PO144

SPRING

feeder conveyor drum adjusting bolt

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

2шт.

SCREW, 1/2-13 x 6-1/2 hex-hd cap

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

8шт.

35

938988R91

CHAIN W/SLATS, feeder conveyor, 328N corn head

1шт.

35

938985R91

CHAIN W/SLATS, feeder conveyor, 329N corn head

1шт.

36

939191R1

SLAT, feeder conveyor chain, 328N corn head

17шт.

RIVET, 5/16 x 5/8 small F-HD solid

68шт.

37

587371R92

NO LONGER SERVICED

LINK, connecting

1шт.

38

589656R91

LINK

attachment

1шт.

39

938947R91

CHANNEL ASSY, feeder extension sliding

2шт.

BOLT, 7/16-14 x 1 short-sq-nk crg

8шт.

BOLT, 7/16-14 x 1-1/4 short-sq-nk crg

4шт.

NUT, 3/8-16 hex

12шт.

WASHER, 3/8 med lock

12шт.

40

938952R91

CHANNEL ASSY, extension support, 329N corn head

2шт.

BOLT, 7/16-14 x 1 short-sq-nk crg

12шт.

BOLT, 7/16-14 x 1-1/4 short-sq-nk crg

4шт.

NUT, 7/16-14 hex

16шт.

WASHER, 7/16 med lock

16шт.

41

938955R92

CHANNEL ASSY, feeder extension vertical LH

1шт.

41

938956R92

CHANNEL ASSY, feeder extension vertical RH

1шт.

BOLT, 7/16-14 x 1-1/4 short-sq-nk crg

4шт.

NUT, 7/16-14 hex

4шт.

WASHER, 7/16 med lock

4шт.

42

938959R91

FRAME ASSY, main

1шт.

43

628734R91

HOUSING ASSY, pivot shaft feeder left

1шт.

43

628735R91

HOUSING ASSY, pivot shaft feeder right

1шт.

BOLT, 3/8-16 x 1 short-sq-nk crg

4шт.

BOLT, 3/8-16 x 1 no. 3 plow

12шт.

NUT, 3/8-16 hex

8шт.

104280

RIVET, 3/8 x 7/8 small-fl-hd solid

4шт.

104282

RIVET, 3/8 x 1-1/8 small-sl-hd solid

4шт.

WASHER, 3/8 med lock

8шт.
