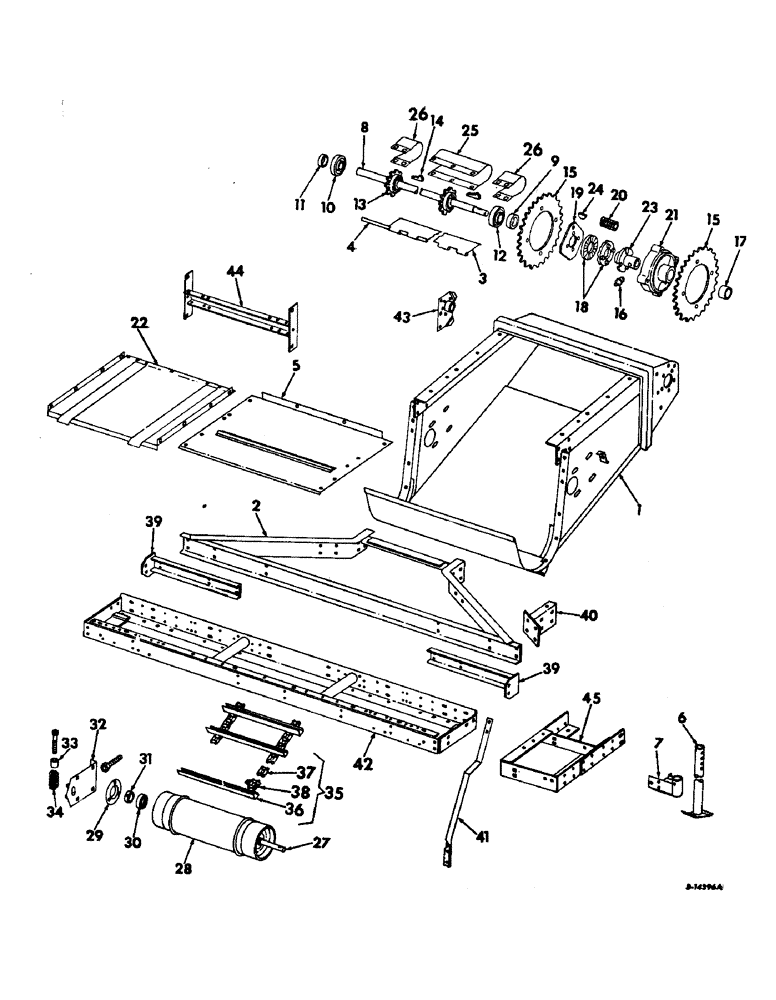

Запчасти Case IH 328WN (E-03) - FEEDER FRAME, LIFT, STAND & FEED CONVEYOR (58) - ATTACHMENTS/HEADERS

1

938900R94

SHELL ASSY, feeder, 329WN corn head

1шт.

1

938901R91

SHELL ASSY, feeder, 328WN corn head

1шт.

17427R1

BOLT, 7/16-14 x 1 hex-hd mach

4шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

425-107

NUT,7/16"-14, G5

7/16-14 hex

8шт.

120283

SCREW,Hex, 5/16" x 3/4", Gr 5

5/16 x 1 slt-truss-hd mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

5028

WASHER, 15/32 x 1 x 11 ga

8шт.

2

938940R92

FRAME ASSY, feeder extension

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

8шт.

271500

SOCKET

7/16-14 hex

8шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

3

154135C11

EXTENSION ASSY, feeder frame bottom, 328WN corn head

1шт.

3

589305R11

EXTENSION ASSY, feeder frame bottom, 329WN corn head

1шт.

4

629006R1

ROD, feeder frame bottom extension hinge, 328WN corn head

1шт.

4

589386R1

ROD

feeder frame bottom extension hinge, 329WN corn head

1шт.

5

938928R91

SECTION ASSY, feeder cover, 328WN corn head

1шт.

5

938927R91

SECTION ASSY, feeder cover, 329WN corn head

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16-18 x 1/2 hex-hd mach

4шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

4шт.

425-107

NUT,7/16"-14, G5

7/16-14 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

6

589573R92

STAND ASSY

2шт.

7

589576R91

HOLDER ASSY, stand LH

1шт.

7

589577R91

HOLDER ASSY, stand RH

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

102637

NUT,1/2"-13, G5

12шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

8

150528C1

SHAFT, feeder conveyor, 328WN corn head

1шт.

8

935857R1

SHAFT, feeder conveyor, 329WN corn head

1шт.

9

557113R11

COLLAR

W/SET SCREW LKG, for use w/bearing 256557R91

1шт.

9

585498R11

COLLAR

W/SET SCREW LKG, for use with brg 585497R91

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt

1шт.

10

256557R91

BEARING

ASSY, feed conveyor shaft ball, optional for bearing 585497R91

1шт.

10

585497R91

BEARING

ASSY, feed conveyor shaft ball, optional for brg 256557R91

1шт.

11

557113R11

COLLAR

W/SET SCREW LKG, for use w/bearing 256557R91

1шт.

11

585498R11

COLLAR

W/SET SCREW LKG, for use w/bearing 585497R91

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt

1шт.

12

256557R91

BEARING

ASSY, feed conveyor shaft ball, optional for bearing 585497R91

1шт.

12

585497R91

BEARING

ASSY, feed conveyor shaft ball, optional for bearing 256557R91

1шт.

13

937243R1

SPROCKET, feed conveyor drive, 11T, 2 used for 328WN corn head, 3 used for 329WN corn head

1шт.

14

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib, 2 used for 328WN corn head, 3 used for 329WN corn head

1шт.

15

936304R1

SPROCKET, feeder driven 38T, 2 reqd 328WN , 2 reqd 329WN serial no. 1413 & below on 403 combine w/o electric clutch, 1 reqd 329WN serial no. 1413 & below on 403 combine w/electric clutch

1шт.

15

935867R1

SPROCKET, feeder driven 38T, 1 reqd 329WN serial no. 1413 & below on 403 combine w/electric clutch

1шт.

17601R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8-16 x 2-3/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS 3/4 str lub

1шт.

17

18519K

BUSHING

feeder driven sprocket hub

1шт.

18

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

19

589381R1

RETAINER, feed conveyor drive slip clutch

1шт.

19836R1

BOLT, 1/2 x 3-3/4 dld sq-nk crg

4шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 C-Z slt-hex

4шт.

121224

SUPPORT

3/32" x 1"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

4шт.

20

311

SPRING

slip clutch

4шт.

21

589384R11

HUB ASSY, feeder driven, includes ref no. 17

1шт.

22

152532C91

SHIELD ASSY, feeder conveyor chain, 328WN corn head

1шт.

22

152529C91

SHIELD ASSY, feeder conveyor chain, 329WN corn head

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

23

589379R91

HUB

HOLDER ASSY, feed conveyor drive slip clutch

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

V4941/2

PIN

5/16 x 2 std hd

1шт.

24

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 Woodruff 28

1шт.

25

152527C1

SHIELD, feeder shaft center, 328WN corn head

1шт.

25

152528C1

SHIELD, feeder shaft center, 329WN corn head

2шт.

14986R1

BOLT, 5/16-18 x 1/2 short sq-nk crg, 6 used for 328WN corn head, 12 used for 329WN corn head

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

152521C1

SHIELD, feeder shaft end, 328WN corn head

2шт.

26

152520C1

SHIELD, feeder shaft end, 329WN corn head

2шт.

14986R1

BOLT, 5/16-18 x 1/2 short sq-nk crg, 8 used for 328WN corn head, 4 used for 329WN corn head

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

938991R1

SHAFT, feeder conveyor drum, 328WN corn head

1шт.

27

938990R1

SHAFT, feeder conveyor drum, 329WN corn head

1шт.

28

938980R91

DRUM ASSY, feeder conveyor, 328WN corn head

1шт.

28

589363R91

DRUM ASSY, feeder conveyor, 329WN corn head

1шт.

271500

SOCKET

7/16-14 hex

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

29

629958R1

FLANGE

conveyor drum brg

2шт.

30

564991R91

BEARING

ASSY, conveyor drum ball

2шт.

31

658006R11

COLLAR

W/SET SCREW LKG

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc hd cup pt set

2шт.

32

938977R91

BRACKET ASSY, feed conveyor drum support LH

1шт.

32

938978R91

BRACKET ASSY, feed conveyor drum support RH

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

8шт.

102635

NUT,3/8"-16, G5

8шт.

425-107

NUT,7/16"-14, G5

7/16-14 hex

6шт.

461189R2

SCREW, 7/16-14 x 3-3/4 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

33

39274

HANDLE

SPACER, conveyor drum adjusting bolt

2шт.

34

PO144

SPRING

drum adjusting bolt

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

2шт.

191268

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

SCREW, 1/2-13 x 6-1/2 hex hd cap

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

8шт.

35

938988R91

CHAIN W/SLATS, feeder conveyor, 328WN corn head

1шт.

35

938985R91

CHAIN W/SLATS, feeder conveyor, 329WN corn head

1шт.

36

939191R1

SLAT, feeder conveyor chain, 328WN corn head

17шт.

36

589370R1

SLAT, feeder conveyor chain, 329WN corn head

32шт.

104264

RIVET,FH, 5/16" x 5/8"

5/16 x 5/8 small F-HD solid

1шт.

37

587371R93

DRAG LINK

LINK, connecting

1шт.

38

589656R91

LINK

ASSY, conveyor chain attaching, 329WN

1шт.

38

151884C91

LINK

ASSY, conveyor chain attaching, 328WN

1шт.

39

938947R92

CHANNEL ASSY, feeder extension sliding

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

40

938952R91

CHANNEL ASSY, feeder extension support, 329WN corn head

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

12шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16-14 x 1-1/4 short sq-nk crg

4шт.

271500

SOCKET

7/16-14 hex

16шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

41

938955R92

ANGLE ASSY, feeder extension vertical LH

1шт.

41

938956R92

ANGLE ASSY, feeder extension vertical RH

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16-13 x 1-1/4 short sq-nk crg

2шт.

425-107

NUT,7/16"-14, G5

7/16-13 hex

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

42

938959R92

FRAME ASSY, main bracket

1шт.

43

628734R91

HOUSING ASSY, pivot shaft feeder LH

1шт.

43

628735R91

HOUSING ASSY, pivot shaft feeder RH

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

12шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 C-Z no. 3 plow

6шт.

120377

NUT,3/8" - 16, Gr 5

18шт.

104280

RIVET, 3/8 x 7/8 small F-HD solid

4шт.

104282

RIVET, 3/8 x 1-1/8 small F-HD solid

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

44

152523C91

CHANNEL ASSY, feeder shaft shield, 328WN corn head

1шт.

44

152525C91

CHANNEL ASSY, feeder shaft shield, 329WN corn head

1шт.

14986R1

BOLT, 5/16 x 1/2 sq-nk crg

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

45

938965R91

EXTENSION ASSY, main frame LH, 38 and 40 inch row space

1шт.

45

938966R91

EXTENSION ASSY, main frame RH, 38 and 40 inch row space

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

12шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x1 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

6шт.

102637

NUT,1/2"-13, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.
