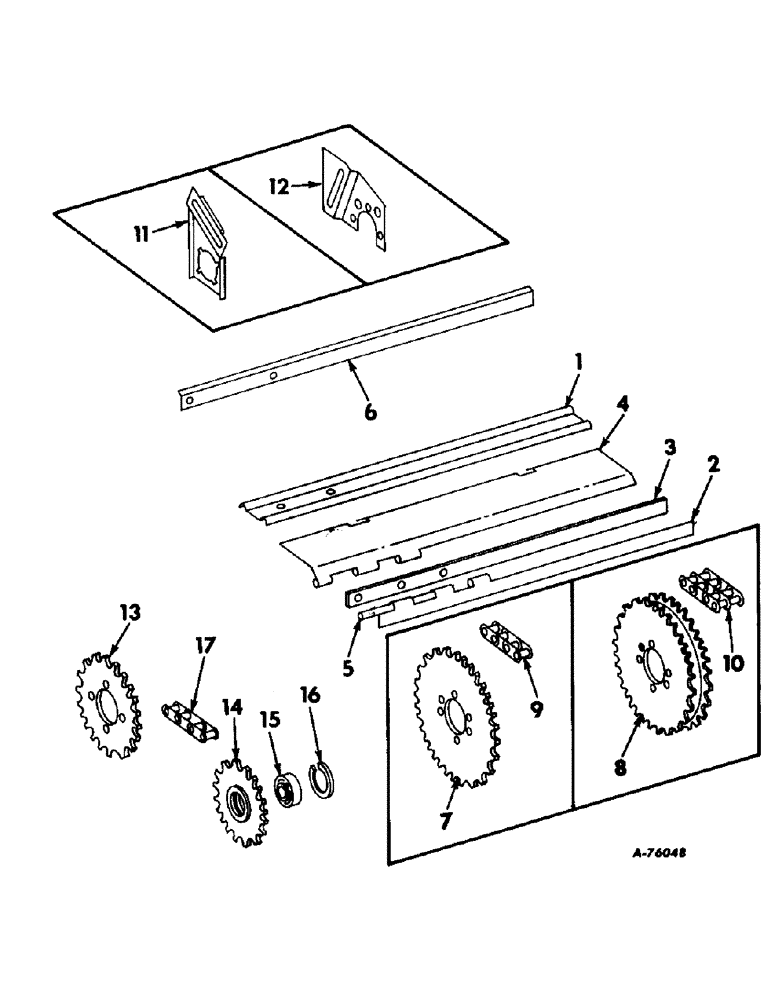

Запчасти Case IH 328N (C-21) - COMPLETING PARTS (58) - ATTACHMENTS/HEADERS

1

581298R1

BAR, cylinder filler, 328N corn head for 101 combine

8шт.

1

633621R1

BAR, cyl filler, 328N corn head for 303 combine

8шт.

1

586214R1

BAR, cyl filler, 329N corn head for 151 combine

8шт.

1

633611R1

BAR

cyl filler, 329N corn head for 403 combine

8шт.

NUT, 3/8-24 hex

1шт.

SCREW, 3/8-24 x 1 hex-hd cap

1шт.

WASHER, 3/8 med lock

24шт.

2

629008R1

HINGE, concave front extension, 328N corn head for 101 combine

1шт.

2

589037R1

HINGE, concave front extension, 329N corn head for 151 combine

1шт.

3

629007R1

RETAINER, concave front extension hinge, 328N corn head for 101 combine

1шт.

NUT, 3/8-24

4шт.

SCREW, 3/8-24 x 1-1/4 hex-hd cap

4шт.

WASHER, 3/8 med lock

4шт.

3

632402R1

RETAINER, concave front extension hinge, 328N corn head for 303 combine

1шт.

WASHER, 1/2 med lock

4шт.

SCREW, 1/2-20 x 1 hex-hd cap

4шт.

3

589034R1

RETAINER, concave front extension hinge, 329N corn head for 151 combine

1шт.

NUT, 3/8-24

6шт.

SCREW, 3/8-24 x 1-1/4 hex-hd cap

6шт.

WASHER, 3/8 med lock

6шт.

3

632403R1

BAR

RETAINER, concave front extension hinge, 329N corn head for 403 combine

1шт.

SCREW, 1/2-20 x 1 hex-hd cap

6шт.

WASHER, 1/2 med lock

6шт.

4

632397R91

EXTENSION ASSY, concave front, 328N corn head

1шт.

4

629649R91

EXTENSION ASSY, concave front, 329N corn head

1шт.

5

629006R1

ROD, concave front extension hinge, 328N corn head for 101 combine

1шт.

5

589386R1

ROD

concave front extension hinge, 329N corn head for 151 combine

1шт.

SCREW, 3/8-16 x 3/4 hex-hd cap

2шт.

WASHER, 3/8 med lock

2шт.

6

632399R1

STRAP, feeder head seal, 328N corn head for 101 and 303 combine

1шт.

6

632400R1

STRAP, feeder head seal, 329N corn head for 151 and 403 combine

1шт.

7

564474R2

SPROCKET ASSY.

SPROCKET, cyl drive 43T, 328N corn head

1шт.

8

569202R2

DRIVE SPROCKET

SPROCKET, cyl drive 43T, 329N corn head

1шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

cylinder drive sprocket

6шт.

9

CHAIN, cyl drive extension roller, order 7 links of 3/4 in std pitch roller chain from a 10 ft roll marked 1793D, three connecting links 1786D, and one two pitch combination offset link 570036R91, 328N corn head

1шт.

10

CHAIN, cyl drive extension roller, order 7 links of 3/4 in std pitch double roller chain from a 10 ft roll marked 1355D, one two pitch combination offset link 570988R91 and three connecting links 569206R91, 329N corn head

1шт.

11

589374R91

SUPPORT ASSY, feeder drive tightener sprocket, 328N corn head for 101 combine, 329N corn head for 151 combine

1шт.

NUT, 7/8-9 hex

1шт.

SCREW, 7/8-9 x 3-1/2 hex-hd cap

1шт.

WASHER, 7/8 med lock

1шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

7шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

12

634631R1

SUPPORT, feeder drive tightener sprocket, 328N corn head for 303 combine, 329N corn head for 303 combine

1шт.

BOLT, 7/8-9 x 3 sq-nk crg

1шт.

NUT, 7/8-9 hex

1шт.

SCREW, 1/2-13 x 1 hex-hd cap

3шт.

WASHER, 1/2 med lock

3шт.

WASHER, 7/8 med lock

1шт.

PO12896

WASHER, 29/32 x 1-1/2 x 11 ga

4шт.

Q140

WASHER

1-7/32 x 2 x 16 ga

3шт.

936627R1

WASHER, 17/32 x 2 x 16 ga

1шт.

13

150151C1

SRPOCKET, feeder drive plate 26T

1шт.

14

632125R1

SPROCKET, feeder drive idler 20T

1шт.

15

580095R91

BALL BEARING

BEARING, feeder idler sprocket

1шт.

16

555602R1

RING

idler sprocket brg snap

1шт.

17

CHAIN, feeder drive roller, order 123 links of 3/4 inch pitch roller chain from a 10-ft roll marked 1793D, one connecting link 1789D and one offset connecting link 1318D

1шт.
