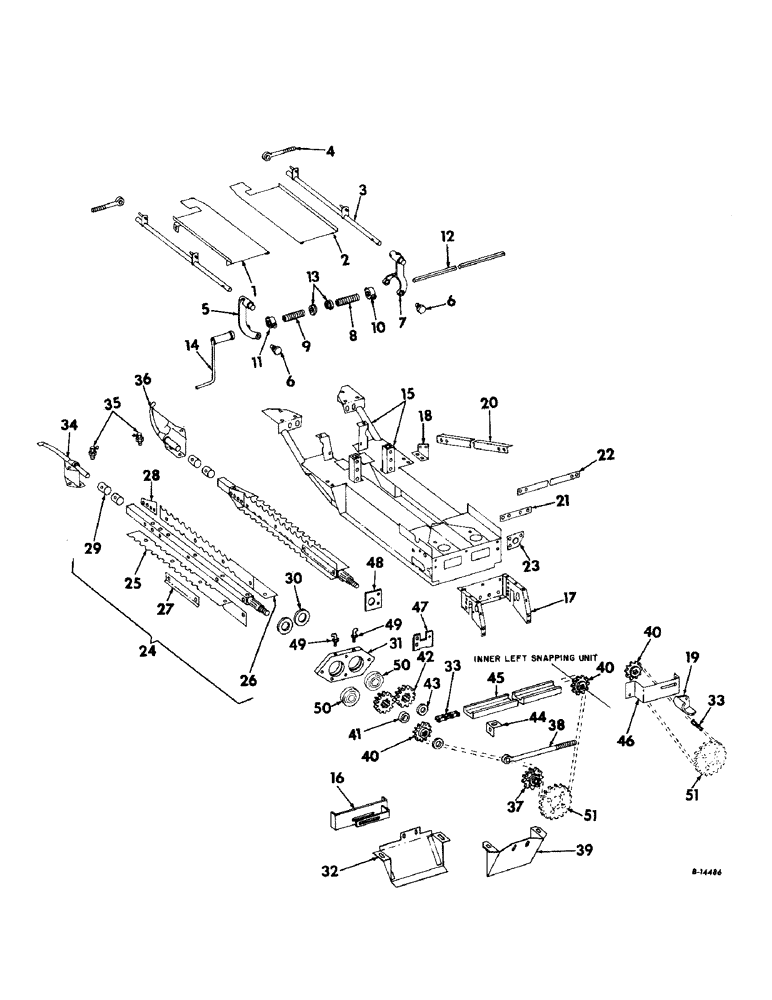

Запчасти Case IH 327WN (H-11) - STALK ROLL FRAME, ROLLS AND DRIVE (58) - ATTACHMENTS/HEADERS

1

632198R91

SHIELD ASSY, stalk roll LH

3шт.

2

632199R91

PLATE

SHIELD ASSY, stalk roll RH

3шт.

3

654952R91

CONTROL ASSY, stalk roll shield

6шт.

4

589460R1

BOLT, stalk roll shield adjusting

6шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

5

939101R1

LEVER, adjusting lower LH

3шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

3шт.

6

589457R1

SCREW, adjusting nut retainer

12шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

7

939102R1

LEVER, adjusting lower RH

3шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

3шт.

8

589453R1

SCREW, shield adjusting LH-thd

3шт.

9

589454R1

SCREW, shield adjusting RH thd

3шт.

10

935560R1

NUT, shield adjusting LH-thd

3шт.

11

935561R1

NUT, shield adjusting RH thd

3шт.

12

939104R1

SHAFT, shield adjusting LH

1шт.

12

939105R1

SHAFT, shield adjusting RH, 28, 30 and 32 inch row spacing

1шт.

12

150286C1

SHAFT, shield adjusting LH

1шт.

12

150287C1

SHAFT, shield adjusting RH, 38 and 40 inch row spacing

1шт.

13

M5895

COLLAR, shield adjusting shaft

4шт.

14

589725R91

CRANK ASSY, shield adjusting

1шт.

517843R1

COTTER PIN

PIN, 3/16 qa cot

1шт.

15

632110R91

FRAME ASSY, stalk roll

3шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

18шт.

271500

SOCKET

7/16-14 hex

18шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

18шт.

16

154114C91

BRACKET ASSY, roll chain tightener

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

939192R92

BRACKET ASSY, stalk roll frame support center

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

3шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

4шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

3шт.

425-107

NUT,7/16"-14, G5

7/16-14 hex

3шт.

102635

NUT,3/8"-16, G5

7шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

84896

SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"

5/16-18 x 3/4 truss hd sltd mach

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

17

939055R92

BRACKET ASSY, frame support outer

2шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

6шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

8шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

5шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

14шт.

271500

SOCKET

7/16-14 hex

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

575807R1

WASHER

13/32 x 1 x 11 ga

6шт.

18

654944R1

BRACKET, frame brace left

1шт.

18

654945R1

BRACKET, frame brace right

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

4шт.

425-107

NUT,7/16"-14, G5

7/16-14 hex

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

19

583619R1

BLOCK

drive chain left tightener, 28, 30 and 32 inch row spacing

1шт.

19

583620R1

BLOCK

drive chain tightener RH, 38 and 40 inch row spacing

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

939901R1

ANGLE, stalk roll frame brace LH

1шт.

20

939902R1

ANGLE, stalk roll frame brace RH, 28, 30 and 32 inch row spacing

1шт.

20

150271C1

ANGLE, stalk roll frame brace LH

1шт.

20

150272C1

ANGLE, stalk roll frame brace RH, 38 and 40 inch row spacing

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

8шт.

271500

SOCKET

7/16-14 hex

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

21

654943R1

STRAP, stalk frame anchor

4шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

22

939059R1

STRAP, stalk frame, 28, 30 and 32 inch row spacing

2шт.

22

654942R1

STRAP, stalk frame, 38 and 40 inch row spacing

2шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

8шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

23

654947R1

BRACKET, stalk shield control

4шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

12шт.

102635

NUT,3/8"-16, G5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

24

654290R91

ROLL ASSY, left driver stalk

2шт.

24

654291R91

ROLL ASSY, right driver stalk

1шт.

24

654292R91

ROLL ASSY, left driven stalk

2шт.

24

654293R91

ROLL ASSY, right driven stalk

1шт.

18558R1

NUT,3/4"-16, GB

3/4-16 hex lock

6шт.

178137

WASHER, 1-3/16 med lock

6шт.

25

654298R1

VALVE BLOCK

SECTION, stalk roll no. 1

12шт.

26

654299R1

VALVE BLOCK

SECTION, stalk roll no. 2

12шт.

27

935627R2

LUG

stalk roll LH

8шт.

27

935628R2

LUG

stalk roll RH

4шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, 1/2-20 x 1 hex-hd cap

24шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

24шт.

28

654296R1

SEAL ASSY.

SECTION, stalk roll front

24шт.

134909

WASHER

RIVET, 5/16 x 2-1/4 F-HD solid

24шт.

29

589813R1

BUSHING

stalk roll front

12шт.

30

654297R1

WASHER

stalk roll shaft

6шт.

31

153748C11

HOUSING W/BRG, stalk roll

3шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 sq-nk crg

12шт.

425-107

NUT,7/16"-14, G5

7/16-14 hex

12шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

32

155816C91

SHIELD ASSY, stalk roll drive

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

102637

NUT,1/2"-13, G5

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

33

CHAIN, stalk roll drive LH, use 131 links from 10-ft roll marked 1793D and one connecting link 1786D

1шт.

33

CHAIN, stalk roll drive RH, use 59 links from 10-ft roll marked 1793D, one connecting link 1786D and two offset connecting links 1389D

1шт.

33

CHAIN, stalk roll drive LH, use 139 links from a 10-ft roll marked 1793D and 1 connecting link 1786D

1шт.

33

CHAIN, stalk roll drive RH, use 65 links from 10-ft roll marked 1793D and 1 connecting link 1786D, 38 and 40 inch row spacing

1шт.

34

158779C91

SUPPORT ASSY, stalk roll left, 327WN serial no. 602 and above

3шт.

34

589854R91

BRACKET

SUPPORT ASSY, stalk roll left, 327WN serial no. 601 and below

3шт.

181445

PANEL

SCREW, 1/2-20 x 3-3/4 hex hd cap

3шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

3шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

35

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg lub

6шт.

36

158780C91

SUPPORT ASSY, stalk roll right, 327WN serial no. 602 and above

3шт.

36

589853R91

BRACKET

SUPPORT ASSY, stalk roll right, 327WN serial no. 601 and below

3шт.

14-860

BOLT,Hex, 1/2" - 20 x 3-3/4", Gr 5

SCREW, 1/2-20 x 3-3/4 hex-hd cap

3шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

3шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

6шт.

37

629972R91

DRIVE SPROCKET,15T

SPROCKET ASSY, stalk roll idler

1шт.

15192R1

BOLT, 5/8 x 3-3/4 sq-nk crg

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

6шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

1шт.

38

939071R1

BOLT, drive chain adjusting

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

39

151313C1

SHIELD, stalk roll drive sprocket RH

2шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

102637

NUT,1/2"-13, G5

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

40

586318R1

PINION

SPROCKET, stalk roll driven 13T

3шт.

41

589696R1

BUSHING

SPACER, stalk roll driven sprocket

3шт.

42

580849R1

PINION

GEAR, stalk roll drive 20T

6шт.

43

585964R1

BUSHING

WASHER, stalk roll gear

6шт.

44

589406R1

ANGLE, drive chain guide

2шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

45

939069R1

GUIDE, stalk roll drive chain, 28, 30 and 32 inch row spacing

1шт.

45

150274C1

GUIDE, stalk roll drive chain, 38 and 40 inch row spacing

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 sq-nk crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

46

939074R1

BRACKET, drive chain tightener

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

47

152980C1

STRIP, stalk roll frame support filler

5шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

10шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 hex-hd mach

5шт.

102635

NUT,3/8"-16, G5

10шт.

102637

NUT,1/2"-13, G5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

48

150357C1

BRACKET, stalk roll shield control outer

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

49

16964R1

FITTING

1/4-28 90 deg lub

6шт.

50

156030C91

BEARING

ASSY, stalk roll rear

6шт.

51

SPROCKET, stalk roll drive 25T, refer to main drive listing section H

1шт.
