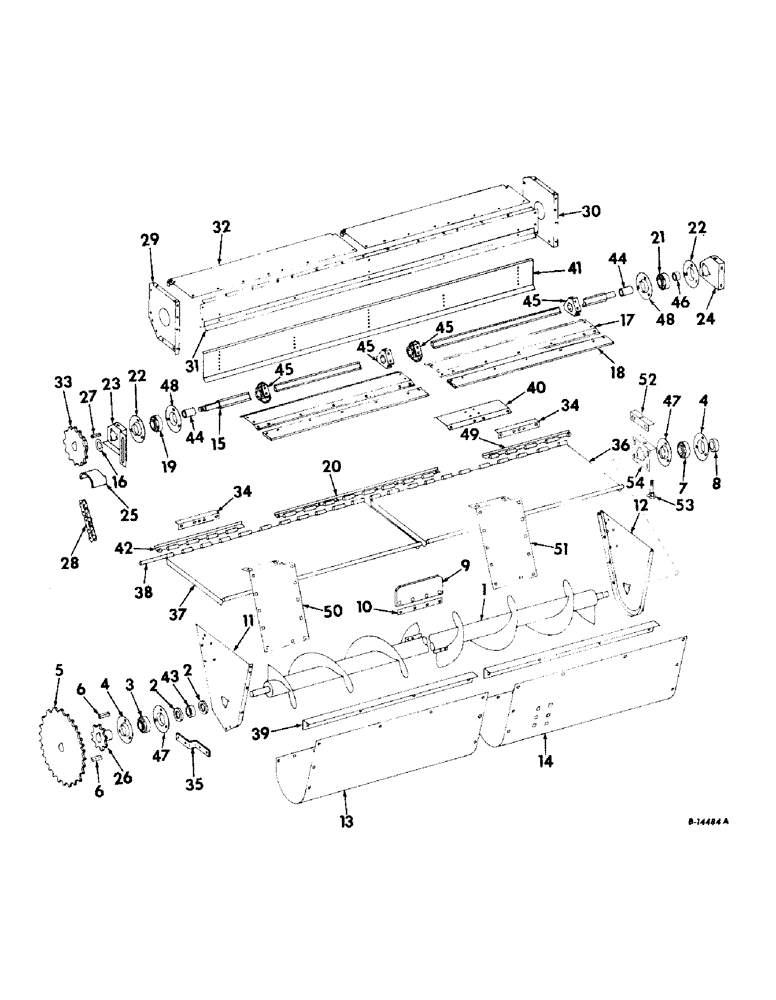

Запчасти Case IH 327WN (H-06) - AUGER, BEATER AND DRIVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
156964C91
AUGER ASSY, 28, 30 and 32 inch row spacing
1шт.
1
156967C91
AUGER ASSY, 38 and 40 inch row spacing
1шт.
2
632156R1
THRUST WASHER
auger LH shaft
2шт.
3
156011C91
BALL BEARING
BEARING ASSY, auger shaft LH relube ball
1шт.
4
939460R91
FLANGE
W/65 DEG FITTING BRG
2шт.
14995R1
BOLT
3/8-16 x 3/4 sq-nk crg
6шт.
102635
NUT,3/8"-16, G5
6шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
5
935789R91
SPROCKET ASSY, auger driven 50T
1шт.
69442D
NUT
3/4-16 slt-hex jam
1шт.
103387
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
1шт.
Q5099
WASHER
25/32 x 1-3/4 x 11 ga
1шт.
NLS
NO LONGER SERVICED
LOCK, 1 1/4"
1шт.
6
577147R1
KEY
5/16 x 1-3/16 sq-parallel
2шт.
7
156011C91
BALL BEARING
BEARING ASSY, auger shaft RH
1шт.
8
557995R11
COLLAR
W/SET SCREW, auger shaft RH
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCRW, 5/16-18 x 5/16 hex-soc-hd cup-pt set
1шт.
9
634470R1
BAT
auger
2шт.
10
634471R1
STRAP, auger bat retainer
2шт.
86508749
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8 x 1-1/4 sq-nk crg
8шт.
102635
NUT,3/8"-16, G5
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
11
939020R92
END ASSY, auger trough LH
1шт.
14986R1
BOLT, 5/16 x 1/2 sq-nk crg
4шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
8шт.
12
939021R92
END ASSY, auger trough RH
1шт.
14986R1
BOLT, 5/16 x 1/2 sq-nk crg
4шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
8шт.
13
156976C11
TROUGH ASSY, auger LH, 28, 30 and 32 inch row spacing
1шт.
13
156974C11
TROUGH ASSY, auger LH, 38 and 40 inch row spacing
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
6шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
7шт.
120283
SCREW,Hex, 5/16" x 3/4", Gr 5
5/16 x 1 slt-truss-hd mach
1шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
6шт.
14
156977C11
TROUGH ASSY, auger RH, 28, 30 and 32 inch row spacing
1шт.
14
156975C11
TROUGH ASSY, auger RH, 38 and 40 inch row spacing
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
6шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
7шт.
120283
SCREW,Hex, 5/16" x 3/4", Gr 5
5/16 x 1 slt-truss-hd mach
1шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
6шт.
15
151314C1
SHAFT, beater, 28, 30 and 32 inch row spacing
1шт.
15
151322C1
SHAFT, beater, 38 and 40 inch row spacing
1шт.
120731
WASHER,1 1/8"
1 1/8"
1шт.
16
472323R1
WASHER
beater shaft
9шт.
17
939088R1
SECTION, beater drum, 28, 30 and 32 inch row spacing
6шт.
17
150251C1
SECTION, beater drum, 38 and 40 inch row spacing
6шт.
181336
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
24шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
24шт.
18
939089R1
BAT, beater drum, 28, 30 and 32 inch row spacing
3шт.
18
150252C1
BAT, beater drum, 38 and 40 inch row spacing
3шт.
151446C1
SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"
5/16 x 1-1/4 slt-truss
36шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 hex
36шт.
115548
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
36шт.
19
939475R91
BEARING
ASSY, beater shaft relube ball
1шт.
20
939147R1
HINGE, auger door center
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z flange
7шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd whiz lock
7шт.
21
939475R91
BEARING
ASSY, beater shaft relube ball
1шт.
22
936460R91
FLANGE, w/65 deg fitting beater driven sprocket brg
2шт.
23
151316C2
BRACKET, beater LH brg
1шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
3шт.
102635
NUT,3/8"-16, G5
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
24
151317C1
BRACKET, beater RH brg
1шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
3шт.
102635
NUT,3/8"-16, G5
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
25
583620R1
BLOCK
beater chain tightener
1шт.
15007R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
1шт.
26
654967R1
SPROCKET, beater drive LH 8T
1шт.
27
577147R1
KEY
5/16 x 1-3/16 sq parallel
1шт.
28
CHAIN, beater drive, use 45 links from 10-ft roll marked 569089R91 and one connecting link 587372R91
1шт.
29
939132R1
SIDE, beater LH
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
2шт.
30
939133R1
SIDE, beater RH
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, 5/16 x 1/2 sq-nk crg
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
2шт.
31
939091R1
SHIELD, beater, 28, 30 and 32 inch row spacing
1шт.
31
150254C1
SHIELD, beater, 38 and 40 inch row spacing
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
1шт.
32
939194R91
COVER ASSY, beater LH
1шт.
32
939195R91
COVER ASSY, beater RH, 28, 30 and 32 inch row spacing
1шт.
32
150353C91
COVER ASSY, beater LH
1шт.
32
150354C91
COVER ASSY, beater RH, 38 and 40 inch row spacing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
4шт.
33
151013C1
SPROCKET, beater driven 13T
1шт.
34
939017R1
ANGLE, auger trough front center, 28, 30 and 32 inch row spacing
2шт.
34
654953R1
ANGLE, auger trough front, 38 and 40 inch row spacing
2шт.
35
939025R1
STRAP, auger trough end support
2шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8 x 1 sq-nk crg
4шт.
17412R1
BOLT,Hex, 3/8" - 16 x 3/4", Gr 2
3/8 x 3/4 hex-hd mach
4шт.
102635
NUT,3/8"-16, G5
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
36
939010R1
DOOR, auger RH, 28, 30 and 32 inch row spacing
1шт.
36
939014R1
DOOR, auger RH, 38 and 40 inch row spacing
1шт.
37
939009R1
DOOR, auger LH, 28, 30 and 32 inch row spacing
1шт.
37
939013R1
DOOR, auger LH, 38 and 40 inch row spacing
1шт.
38
939019R1
ROD, auger door hinge, 28, 30 and 32 inch row spacing
1шт.
38
939018R1
ROD, auger door hinge, 38 and 40 inch row spacing
1шт.
39
156972C1
ANGLE, auger door LH
1шт.
39
156973C1
ANGLE, auger door RH, 28, 30 and 32 inch row spacing
1шт.
39
156970C1
ANGLE, auger door LH
1шт.
39
156971C1
ANGLE, auger door RH, 38 and 40 inch row spacing
1шт.
14986R1
BOLT, 5/16 x 1/2 sq-nk crg
4шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
2шт.
15007R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2
2шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
8шт.
40
939090R1
REINFORCEMENT, beater drum section
3шт.
41
939092R1
SHIELD, beater adjustable, 28, 30 and 32 inch row spacing
1шт.
41
150253C1
SHIELD, beater adjustable, 38 and 40 inch row spacing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
8шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16-18 x 3/4 C-Z slt-truss-hd whiz lock
8шт.
42
939151R2
HINGE, auger door LH, 28, 30 and 32 inch row spacing
1шт.
42
939148R2
HINGE, auger door LH, 38 and 40 inch row spacing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
3шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd whiz lock
3шт.
43
632157R1
SPACER, auger shaft
1шт.
44
151315C1
SPACER, beater shaft bearing RH, 28, 30 and 32 inch row spacing
2шт.
44
151334C1
SPACER, beater shaft bearing RH, 38 and 40 inch row spacing
2шт.
45
155160C1
SUPPORT, beater shaft, 327WN serial no. 827 and below
4шт.
45
166390C1
SUPPORT, beater section, 327WN serial no. 828 and above
4шт.
181336
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
48шт.
Q397
WASHER
11/32 x 3/4 x 16 ga
48шт.
46
577115R11
COLLAR W/SET SCREW, lkg
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16-18 x 5/16 hex-soc-hd cup-pt set
1шт.
47
939461R1
FLANGE
auger shaft brg
2шт.
48
939461R1
FLANGE
beater driven sprkt brg
2шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
6шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
6шт.
49
939152R2
HINGE, auger door RH, 28, 30 and 32 inch row spacing
1шт.
49
939149R2
HINGE, auger door RH, 38 and 40 inch row spacing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
3шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd whiz lock
3шт.
50
152588C1
SECTION, auger front outer LH, 38 and 40 inch row spacing
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
5шт.
120376
NUT,5/16"-18, G5
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
51
152589C1
SECTION, auger front outer RH, 38 and 40 inch row spacing
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
5шт.
120376
NUT,5/16"-18, G5
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
52
166045C1
ANGLE, auger adjustment, 327WN serial no. 602 and above
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
53
166048C1
BOLT, auger adjustment, 327WN serial no. 602 and above
2шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
4шт.
54
166046C1
BRACKET, auger bearing, 327WN serial no. 602 and above
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
4шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
8шт.
Выбрано товаров: 176
