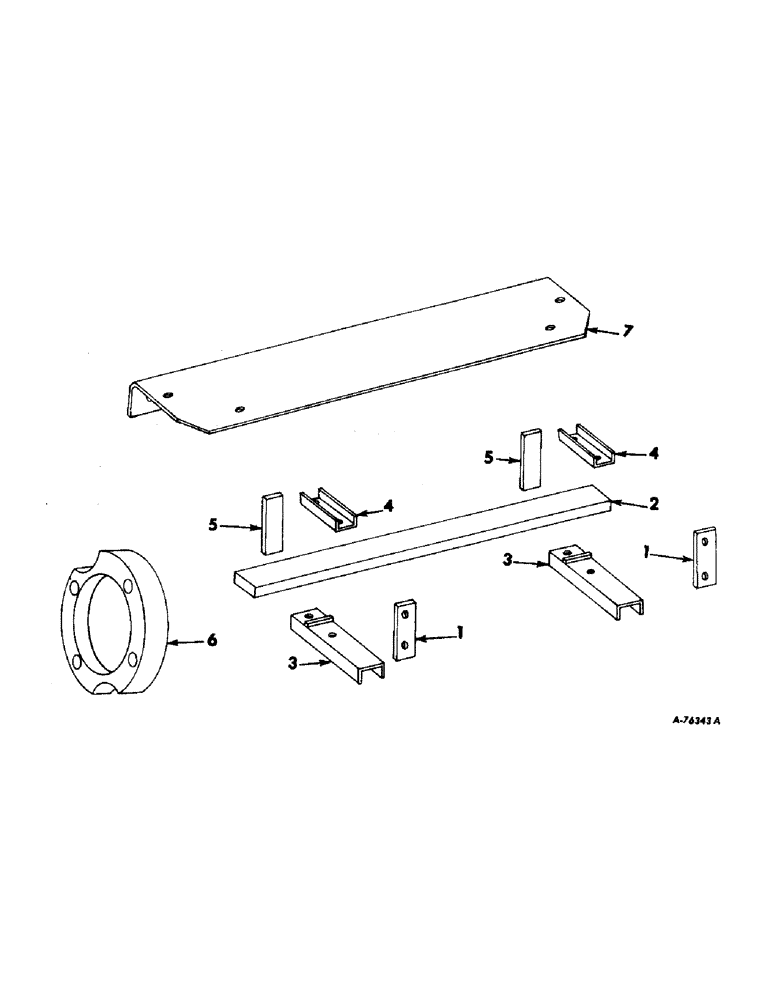

Запчасти Case IH 327WN (H-26) - COUNTER BALANCE BAR WEIGHT ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

159882C1

BAR, counter balance weight support

4шт.

18103R1

BOLT, 1/2 x 12-1/2 hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

583740R1

BAR, counter balance weight

10шт.

2

159881C1

BAR, counter balance weight, for use w/38 and 40 inch row spacing on 315 combine w/narrow guide wheel axle

4шт.

3

654328R11

CHANNEL ASSY, counter balance weight lower

2шт.

4

654331R1

CHANNEL, counter balance weight upper

2шт.

18818R1

BOLT,Hex, 1/2"-13 x 7", G2

1/2 x 7 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

654445R1

FILLER, counter balance

2шт.

6

370685R1

WEIGHT

guide wheel

4шт.

18713R1

SCREW,Short NK, 1/2"-13 x 4 1/2", G2

BOLT, 1/2 x 4-1/2 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

7

159883C1

SUPPORT, counter balance weight, for use w/38 and 40 inch row spacing on 315 combine w/narrow guide wheel axle

2шт.

21337R1

BOLT, 1/2 x 5 C-Z hex-hd type 4

4шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

BOLT, 1/2 x 5-1/4 C-Z hex-hd type 4

2шт.

17990R1

BOLT, 1/2 x 8-3/4 hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex type 4

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.
