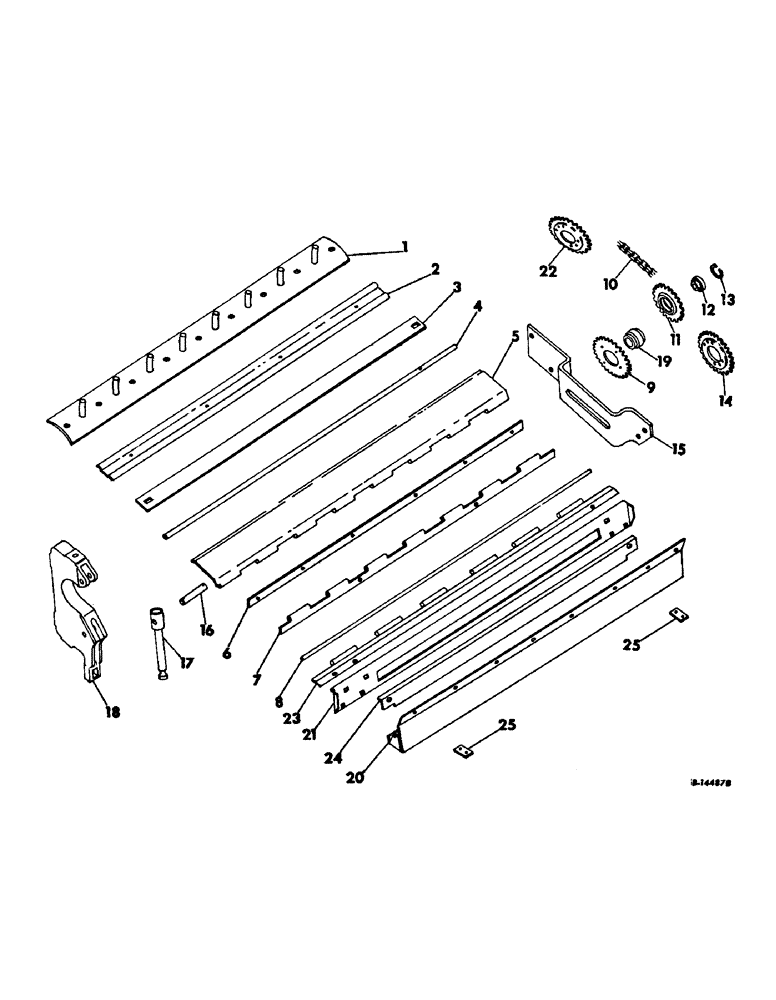

Запчасти Case IH 327WN (H-24) - COMPLETING PARTS (58) - ATTACHMENTS/HEADERS

1

152085C91

BAR ASSY, beater 8 finger, 315 combine

2шт.

1

152086C91

BAR ASSY, beater 9 finger, 315 combine

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

6шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

1

612476R92

BAR ASSY, spike tooth beater LH finger, 205 combine

7шт.

1

612477R92

BAR ASSY, spike tooth beater RH fingers, 205 combine

2шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 C-Z sq-nk crg

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

20шт.

2

152988C1

BAR, cylinder filler bar, 315 combine

8шт.

181637

SCREW, 3/8 x 1 C-Z hex-hd cap

32шт.

120369

NUT,3/8"-24, G5

32шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

2

613854R1

BAR, cylinder filler, 205 combine

6шт.

120371

NUT,1/2"-20, G5

16шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 C-Z hex-hd cap

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

3

152509C1

STRIP, grate finger stiffener

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

7шт.

4

619740R1

ROD, concave front extension support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

654724R11

EXTENSION ASSY, concave front

1шт.

6

583688R1

STRAP, concave front hinge

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

7

583687R1

HINGE, concave front extension

1шт.

8

583682R1

ROD, concave front extension hinge

1шт.

9

610445R91

SPROCKET ASSY, feeder drive idler 18T, 205 combine

1шт.

10

CHAIN ASSY, feeder drive roller, 315 combine, 327WN serial no. 827 and below, use 123 links from a 10-ft roll marked 1793D, 1 connecting link 1786D and 1 offset link 1318D

1шт.

10

CHAIN ASSY, feeder drive roller, 315 combine, 327WN serial no. 828 and above, use 125 links from 10-ft roll marked 1793D and 1 connecting link 1786D

1шт.

10

CHAIN ASSY, feeder drive roller, 205 combine, use 111 links from a 10-ft roll marked 1793D, 1 connecting link 1786D and 1 offset link 1318D

1шт.

11

632125R1

SPROCKET, feeder drive idler 20T, 315 combine

1шт.

22861R1

BOLT, 7/8 x 3 C-Z sq-nk crg

1шт.

222087

HUB

NUT, 7/8 C-Z hex

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

3шт.

21747R1

WASHER,1.22" ID x 2" OD x 0.07" Thk

1-7/32 x 2 x 16 ga C-Z

4шт.

12

580095R91

BALL BEARING

BEARING ASSY, feeder idler sprocket ball, 315 combine

1шт.

13

555602R1

RING

idler sprocket brg snap, 315 combine

1шт.

14

156982C1

SPROCKET, feeder drive chain driver 25T

1шт.

15

156984C2

BRACKET, feeder drive chain tightener, 315 combine

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

564986R1

PIN, cylinder lift extension

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

4шт.

17

568579R91

EXTENSION ASSY, cylinder lift

2шт.

18

161202C1

SUPPORT, feeder pivot LH, serial no. 918 and below

1шт.

18

161203C1

SUPPORT, feeder pivot RH, serial no. 918 and below

1шт.

18

168747C1

SUPPORT, feeder pivot LH, serial no. 919 and above

1шт.

18

168748C1

SUPPORT, feeder pivot RH, serial no. 919 and above, 315 combine

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex type 4

10шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2 x 1-3/4 C-Z hex-hd cap type 4

8шт.

236485R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

SCREW, 1/2 x 2-1/4 C-Z hex-hd cap type 4

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

22245R1

WASHER, 17/32 x 1 x 7 ga C-Z

10шт.

19

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

ASSY, idler sprocket ball, 205 combine

1шт.

20

161300C92

SECTION ASSY, stone retarder, 315 combine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

161302C1

REINFORCEMENT, stone retarder front, serial no. 918 & below, on 315 combine serial no. 2297 & below

1шт.

21

166406C1

REINFORCEMENT, stone retarder front, serial no. 919 & above, on 315 combine serial no. 2297 & below

1шт.

22

565376R2

SPROCKET ASSY.

SPROCKET, cylinder drive 30T, 205 combine

1шт.

23

166408C11

HINGE ASSY, grain pan front seal plate, serial no. 919 & above on 315, combine serial no. 2297 & below

1шт.

24

166407C1

DOOR, stone retarder, serial no. 919 & above on 315, combine serial no. 2297 & below

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

25

168746C1

BAR, feeder plate guide support, serial no. 919 & above on 315, combine serial no. 2297 & below

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
