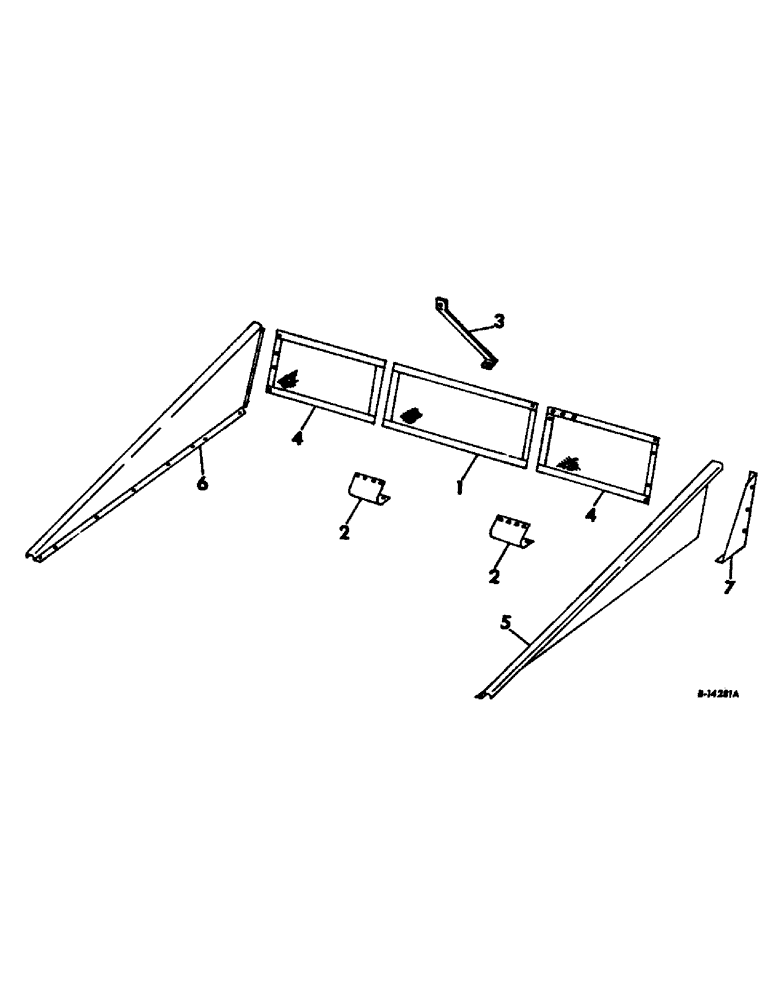

Запчасти Case IH 327WN (H-22) - GATHERER EXTENSION (58) - ATTACHMENTS/HEADERS

1

939185R91

SCREEN ASSY, gatherer extension center, 28, 30 and 32 inch row spacing

1шт.

1

150362C91

SCREEN ASSY, center, 38 and 40 inch row spacing, 327WN serial no. 827 and below

1шт.

1

163151C91

SCREEN ASSY, center, 28, 30 and 32 inch row spacing

1шт.

1

163157C91

SCREEN ASSY, center, 38 and 40 inch row spacing, 327WN serial no. 828 and above, low silhouette corn heads

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

2

151377C2

REINFORCEMENT, gatherer extension, 327WN serial no. 827 and below

2шт.

2

632416R2

REINFORCEMENT, gatherer extension, 327WN serial no. 828 and above, low silhouette corn heads

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

6шт.

3

151376C1

BRACE, gatherer extension, 327WN serial no. 827 and below

3шт.

3

161000C1

BRACE, gatherer extension, 327WN serial no. 828 and above, low silhouette corn heads

3шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

4

632405R91

SCREEN ASSY, gatherer extension outer, 327WN serial no. 827 and below

2шт.

4

163159C91

SCREEN ASSY, gatherer extension outer, low silhouette corn heads, 327WN serial no. 828 and above

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

20шт.

120376

NUT,5/16"-18, G5

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

5

151370C91

SHIELD ASSY, gatherer extension LH, 327WN serial no. 827 and below

1шт.

5

159995C2

SHIELD, gatherer extension LH, 327WN serial no. 828 and above, low silhouette corn heads

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

10шт.

6

151371C91

SHIELD ASSY, gatherer extension, 327WN serial no. 827 and below

1шт.

6

159996C2

SHIELD ASSY, gatherer extension, 327WN serial no. 828 and above, low silhouette corn heads

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd whiz lock

10шт.

7

151378C1

REINFORCEMENT, gatherer extension LH shield

1шт.

7

151379C1

REINFORCEMENT, gatherer extension RH shield, 327WN serial no. 827 and below

1шт.

7

159997C1

REINFORCEMENT, gatherer extension shield LH

1шт.

7

159998C1

REINFORCEMENT, gatherer extension shield RH, 327WN serial no. 828 and above, low silhouette corn heads

1шт.
