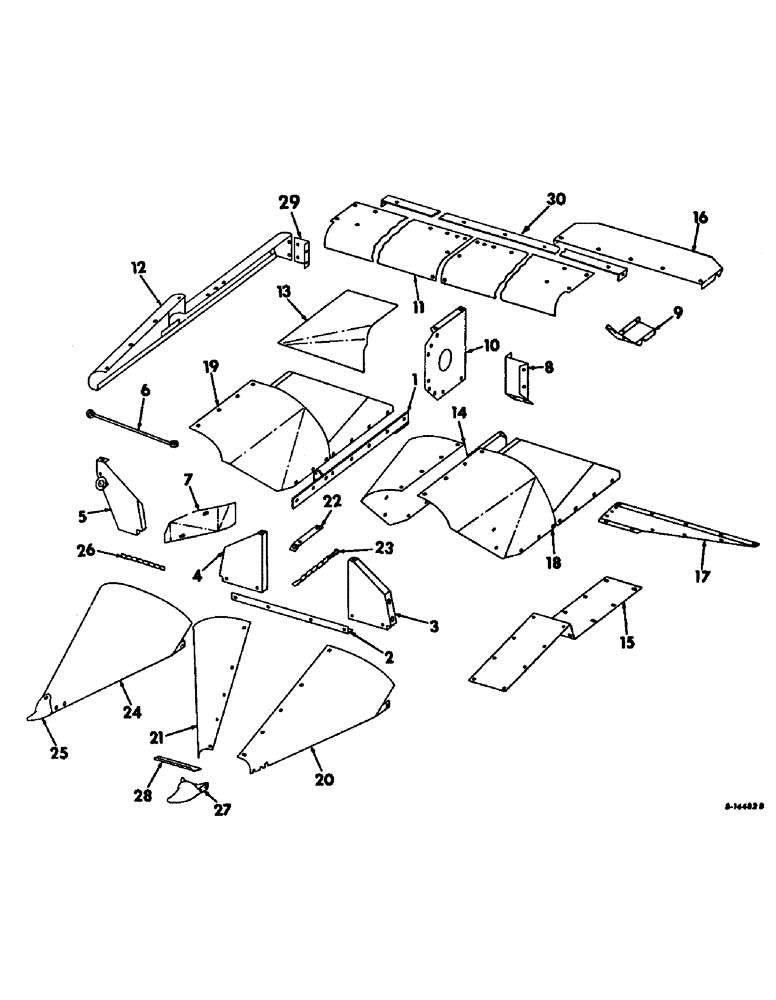

Запчасти Case IH 327WN (H-19) - GATHERER SHIELDS AND DIVIDERS (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
632216R91
SUPPORT ASSY, gatherer shield LH
3шт.
1
632217R91
SUPPORT ASSY, gatherer shield RH
3шт.
15108R1
BOLT, 3/8 x 2-1/2 sq-nk crg
12шт.
88707
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd
BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd
6шт.
102637
NUT,1/2"-13, G5
6шт.
102635
NUT,3/8"-16, G5
12шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
12шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
6шт.
2
939153R1
ANGLE, gatherer bracket tie, 28, 30 and 32 inch row spacing
2шт.
2
150317C1
ANGLE, gatherer bracket tie, 38 and 40 inch row spacing
2шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
8шт.
102635
NUT,3/8"-16, G5
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
3
939145R1
SUPPORT, front inner gatherer shield RH, 327WN serial no. 827 and below
2шт.
3
164938C1
SECTION, front inner gatherer shield RH, 327WN serial no. 828 and above, low silhouette corn heads
2шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
4шт.
4
939144R1
SUPPORT, front inner gatherer shield LH, 327WN serial no. 827 and below
2шт.
4
164937C1
SECTION, front inner gatherer shield LH, 327WN serial no. 828 and above, low silhouette corn heads
2шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
4шт.
5
589889R91
BRACKET ASSY, outer gatherer shield LH
1шт.
5
589890R91
BRACKET ASSY, outer gatherer shield RH, 327WN serial no. 827 and below
1шт.
5
164939C91
BRACKET ASSY, outer gatherer shield LH
1шт.
5
164940C91
BRACKET ASSY, outer gatherer shield RH, 327WN serial no. 828 and above, low silhouette corn heads
1шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
4шт.
102635
NUT,3/8"-16, G5
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
6
587002R1
BRACE, outer gatherer shield support LH
1шт.
6
587003R1
BRACE, outer gatherer shield support RH
1шт.
86508749
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8 x 1-1/4 sq-nk crg
4шт.
102635
NUT,3/8"-16, G5
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
7
632220R2
STRIP, divider hinge
3шт.
7
632221R2
STRIP, divider hinge RH, 327WN serial no. 827 and below
3шт.
7
164935C1
STRIP, divider hinge LH
3шт.
7
164936C1
STRIP, divider hinge RH, 327WN serial no. 828 and above, low silhouette corn heads
3шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
6шт.
86508749
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8 x 1-1/4 sq-nk crg
6шт.
102635
NUT,3/8"-16, G5
12шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
6шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
6шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
12шт.
8
936136R2
FILLER, beater side LH
1шт.
8
936137R2
FILLER, beater side RH, 28, 30 and 32 inch row spacing
1шт.
8
150314C2
FILLER, beater side LH
1шт.
8
150315C2
FILLER, beater side RH, 38 and 40 inch row spacing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
6шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
6шт.
9
939140R2
BOTTOM, beater outer LH
1шт.
9
939141R2
BOTTOM, beater outer RH, 28, 30 and 32 inch row spacing
1шт.
9
654849R2
BOTTOM, beater outer LH
1шт.
9
654850R2
BOTTOM, beater outer RH, 38 and 40 inch row spacing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
4шт.
10
939132R1
SIDE, beater LH
1шт.
10
939133R1
SIDE, beater RH
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, 5/16-18 x 1/2 sq-nk crg
8шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
8шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 C-Z slt-truss-hd whiz lock
4шт.
11
939194R91
COVER ASSY, beater LH
1шт.
11
939195R91
COVER ASSY, beater RH, 28, 30 and 32 inch row spacing
1шт.
11
150353C91
COVER ASSY, beater LH
1шт.
11
150354C91
COVER ASSY, beater RH, 38 and 40 inch row spacing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 C-Z sltd-truss-hd whiz lock
4шт.
12
939880R92
EXTENSION ASSY, outer gatherer shield LH
1шт.
12
939881R92
EXTENSION ASSY, outer gatherer shield RH, 327WN serial no. 827 and below
1шт.
12
162801C91
EXTENSION ASSY, outer gatherer shield LH
1шт.
12
162802C91
EXTENSION ASSY, outer gatherer shield RH, 327WN serial no. 828 and above, low silhouette corn heads
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
24шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
24шт.
13
632223R1
EXTENSION, beater cover LH
1шт.
13
632224R1
EXTENSION, beater cover RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
18шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
18шт.
14
939115R91
SHIELD ASSY, gatherer inner LH, 327WN serial no. 827 and below
2шт.
14
164927C91
SHIELD ASSY, gatherer inner LH, 327WN serial no. 828 and above, low silhouette corn heads, low silhouette corn heads
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
4шт.
15
939142R1
FILLER, inner gatherer shield, 28, 30 and 32 inch row spacing
2шт.
15
150346C1
FILLER, inner gatherer shield, 38 and 40 inch row spacing, 327WN serial no. 827 and below
2шт.
15
165069C1
FILLER, inner gatherer shield, 28, 30 and 32 inch row spacing
2шт.
15
165072C1
FILLER, inner gatherer shield, 38 and 40 inch row spacing, 327WN serial no. 828 and above, low silhouette corn heads
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
32шт.
63226R1
SCREW, 5/16-18 x 1/2 C-Z slt-truss-hd whiz lock
32шт.
16
152122C91
BOTTOM ASSY, beater center, 38 and 40 inch row spacing
2шт.
16
152119C91
BOTTOM ASSY, beater center, 38 and 40 inch row spacing
2шт.
15007R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2
2шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
2шт.
17
939131R1
EXTENSION, beater bottom, 28, 30 and 32 inch row spacing
2шт.
17
150344C1
EXTENSION, beater bottom, 38 and 40 inch row spacing
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
28шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 C-Z slt-truss-hd whiz lock
28шт.
18
939116R91
SHIELD ASSY, gatherer inner RH, 327WN serial no. 827 and below
2шт.
18
164928C91
SHIELD ASSY, gatherer inner RH, 327WN serial no. 828 and above, low silhouette corn heads
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
4шт.
19
654311R91
SHIELD ASSY, gatherer LH
1шт.
19
654312R91
SHIELD ASSY, gatherer RH, 327WN serial no. 827 and below
1шт.
19
164931C91
SHIELD ASSY, gatherer LH
1шт.
19
164932C91
SHIELD ASSY, gatherer RH, 327WN serial no. 828 and above, low silhouette corn heads
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
4шт.
20
934154R91
DIVIDER ASSY, center LH, 28, 30 and 32 inch row spacing
2шт.
20
589504R91
DIVIDER ASSY.
DIVIDER ASSY, center LH, 38 and 40 inch row spacing
2шт.
15091R1
BOLT, 1/2 x 2-1/4 sq-nk crg
2шт.
231-1408
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 ESNA lock
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
10шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 C-Z slt-truss-hd whiz lock
10шт.
21
939155R91
DIVIDER ASSY, center RH, 28, 30 and 32 inch row spacing
2шт.
21
589505R91
DIVIDER ASSY.
DIVIDER ASSY, center RH, 38 and 40 inch row spacing
2шт.
15091R1
BOLT, 1/2 x 2-1/4 sq-nk crg
2шт.
231-1408
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 ESNA lock
2шт.
22
589508R1
BRACKET, divider adjusting chain
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange whiz lock
4шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16-18 x 3/4 C-Z slt-truss-hd whiz lock
4шт.
23
589509R91
CHAIN, center divider adjusting
2шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8 x 1 sq-nk crg
2шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
Q1597
WASHER
13/32 x 3/4 x 11 ga
2шт.
24
589510R92
DIVIDER ASSY.
DIVIDER ASSY, outer LH
1шт.
24
589511R92
DIVIDER ASSY.
DIVIDER ASSY, outer RH
1шт.
15089R1
BOLT
3/8-16 x 2-1/4 sq-nk crg
4шт.
109084
NUT,1/4"-20, G5
2шт.
102635
NUT,3/8"-16, G5
4шт.
NLS
NO LONGER SERVICED
SCREW, 1/4 x 3/4 slt-fl-hd mach
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
25
U911
POINT, divider LH
1шт.
25
U912
END ASSY.
POINT, divider RH
1шт.
26
589522R91
CHAIN, outer divider adjusting
2шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
BOLT, 3/8 x 1 sq-nk crg
2шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
Q1505
WASHER
13/32 x 1 x 16 ga
2шт.
27
UB1526
POINT, center divider
2шт.
18684R1
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 C-Z sq-nk crg
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120082
BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8
WASHER, 3/8 C-Z med lock
8шт.
28
626604R1
BRACE, divider
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
29
939884R2
BRACKET, gatherer shield outer rear filler LH, 28, 30 and 32 inch row spacing
1шт.
29
939885R2
BRACKET, gatherer shield outer rear filler RH, 28, 30 and 32 inch row spacing
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
4шт.
17404R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16-18 x 1/2 hex-hd mach
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex
8шт.
30
155191C1
REINFORCEMENT, beater cover, 38 and 40 inch row spacing
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
9шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
9шт.
Выбрано товаров: 159
