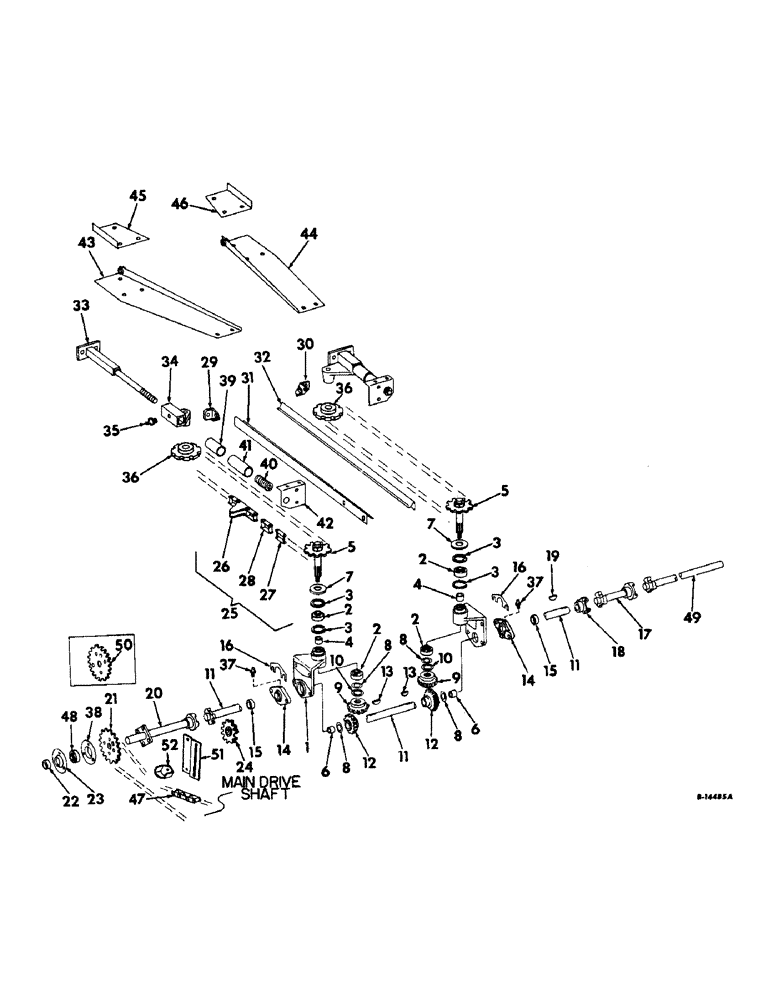

Запчасти Case IH 327WN (H-16) - GATHERER DRIVE (58) - ATTACHMENTS/HEADERS

1

654275R1

HOUSING, gatherer drive brg

6шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

12шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

2

586609R91

BALL BEARING

BEARING ASSY, gatherer drive ball

12шт.

3

555602R1

RING

gatherer drive brg snap

12шт.

4

654385R1

SPACER,26.21mm ID x 31.75mm OD x 19.05mm L

gatherer drive brg outer

6шт.

5

156005C93

SPROCKET ASSY.

SPROCKET ASSY, gatherer chain drive 8T

6шт.

161386C1

NUT

5/8-18 C-Z slt-hex jam

6шт.

6

936643R1

SPACER, gatherer drive brg

6шт.

7

654284R1

WASHER

gatherer driven shaft cup

6шт.

8

654283R1

THRUST WASHER

gatherer drive sprocket

21шт.

9

156007C1

GEAR

gatherer driven bevel

6шт.

70119D

NUT

5/8-18 NF slt-hex jam

6шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

6шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

6шт.

10

654338R1

THRUST WASHER

gatherer driven shaft

6шт.

11

939106R91

SHAFT ASSY, gatherer drive outer

1шт.

12

935611R1

PINION

GEAR, gatherer drive bevel 18T

6шт.

13

118000

WOODRUFF KEY,#27, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff 27

6шт.

14

156032C91

FLANGED BEARING

HOUSING W/BRG, gatherer drive outer

6шт.

NLS

NO LONGER SERVICED

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

15

455102R11

COLLAR

W/SET SCREW, gatherer drive brg lkg

6шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

6шт.

16

654288R1

SHIM, gatherer drive bevel gear

12шт.

17

939109R91

SHAFT ASSY, gatherer drive inner coupling, 28, 30 and 32 inch row spacing

1шт.

17

150300C91

SHAFT ASSY, gatherer drive inner coupling, 38 and 40 inch row spacing

1шт.

18

939108R1

COUPLING

gatherer drive outer shaft female

1шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

1/2-13 x 2-1/4 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

19

117987

KEY

1/4 x 2-1/8 Woodruff 27

1шт.

20

939111R91

SHAFT ASSY, gatherer drive outer coupling, 28, 30 and 32 inch row spacing

2шт.

20

589808R91

SHAFT ASSY, gatherer drive outer coupling, 38 and 40 inch row spacing

2шт.

21

589600R1

SPROCKET, gatherer driven 24T

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

8шт.

102635

NUT,3/8"-16, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

22

455102R11

COLLAR

W/SET SCREW, outer coupling shaft lkg

2шт.

23

937518R91

FLANGE

W/STR LUB FITTING, brg

2шт.

24

582389R91

DRIVE SPROCKET

SPROCKET, gatherer drive idler 15T, 327WN serial no. 601 and below

2шт.

15146R1

BOLT, 5/8 x 3 sq-nk crg

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

8шт.

Q1595

WASHER, 21/32 sq x 1-3/4 x 12 ga

4шт.

25

654164R91

CHAIN (AG)

CHAIN W/FLIGHTS, gatherer

6шт.

26

935619R91

GATHERING CHAIN

CHAIN, gatherer section roller

1шт.

27

587371R93

DRAG LINK

LINK, gatherer roller chain connecting

1шт.

28

450423R1

DRAG LINK

LINK, gatherer roller chain

1шт.

29

937173R1

GUIDE, gatherer chain LH

3шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

30

937174R1

GUIDE, gatherer chain RH

3шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

31

589922R3

GUIDE, gatherer chain holddown LH

3шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

21шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

21шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

21шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

32

589923R3

GUIDE, gatherer chain holddown RH

3шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

21шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

21шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

21шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

33

632172R91

SHAFT ASSY, gatherer carrier

6шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

12шт.

102635

NUT,3/8"-16, G5

12шт.

425-1414

JAM NUT,Jam, 7/8"-9, G5

12шт.

18549R1

NUT,7/8"-9, GB

7/8-9 ESNA stop

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

6шт.

Q1505

WASHER

13/32 x 1 x 16 ga

12шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

12шт.

34

654332R2

CARRIER, gatherer sprocket

6шт.

35

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

6шт.

36

155915C91

DRIVE SPROCKET

SPROCKET, gatherer idler 8T

6шт.

586116R1

BOLT,Hex, 3/4" - 10 x 2 1/2"

3/4 x 2-1/2 hex-hd mach

6шт.

115554

LOCK WASHER,Int Tooth, 3/4"

WASHER, 3/4 int-tooth lock

6шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

18шт.

37

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 NS 45 deg lube

6шт.

38

937517R1

FLANGE

gatherer outer coupling

2шт.

39

632189R1

SPACER, gatherer carrier shaft

6шт.

40

544

CANVAS

SPRING, gatherer carrier shaft

6шт.

41

589856R1

SPACER, gatherer carrier shaft spring

6шт.

42

632185R1

BRACKET, gatherer carrier shaft LH

3шт.

42

632186R1

BRACKET, gatherer carrier shaft RH

3шт.

15108R1

BOLT, 3/8 x 2-1/2 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

43

632183R11

BRACKET ASSY, gatherer support LH

3шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

12шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

15шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

15шт.

44

632184R11

BRACKET ASSY, gatherer support RH

3шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

12шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

15шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

15шт.

45

632180R1

BRACE, divider outer LH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

46

632181R1

BRACE, divider outer RH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

47

CHAIN, gatherer drive LH, use 81 links from 10-ft roll marked 1793D, 1 connecting link 1786D and 1 offset link 1318D

1шт.

47

CHAIN, gatherer drive RH, use 65 links from 10-ft roll marked 1793D and 1 connecting link 1786D

1шт.

48

482303R91

BALL BEARING,1.0005" ID x 52 mm OD x 0.8434"

BEARING ASSY, gatherer outer coupling shaft relube ball

2шт.

49

654948R91

SHAFT ASSY, gatherer drive inner

2шт.

50

161069C1

SPROCKET, gatherer driven slow speed 28T, special for ground speed of 3.44 miles per hour

2шт.

50

161070C1

SPROCKET, gatherer driven slow speed 32T, special for ground speed of 3.00 miles per hour

2шт.

51

166019C1

BRACKET, gatherer drive tightener, 327WN serial no. 602 and above

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

52

583620R1

BLOCK

gatherer drive tightener, 327WN serial no. 602 and above

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
