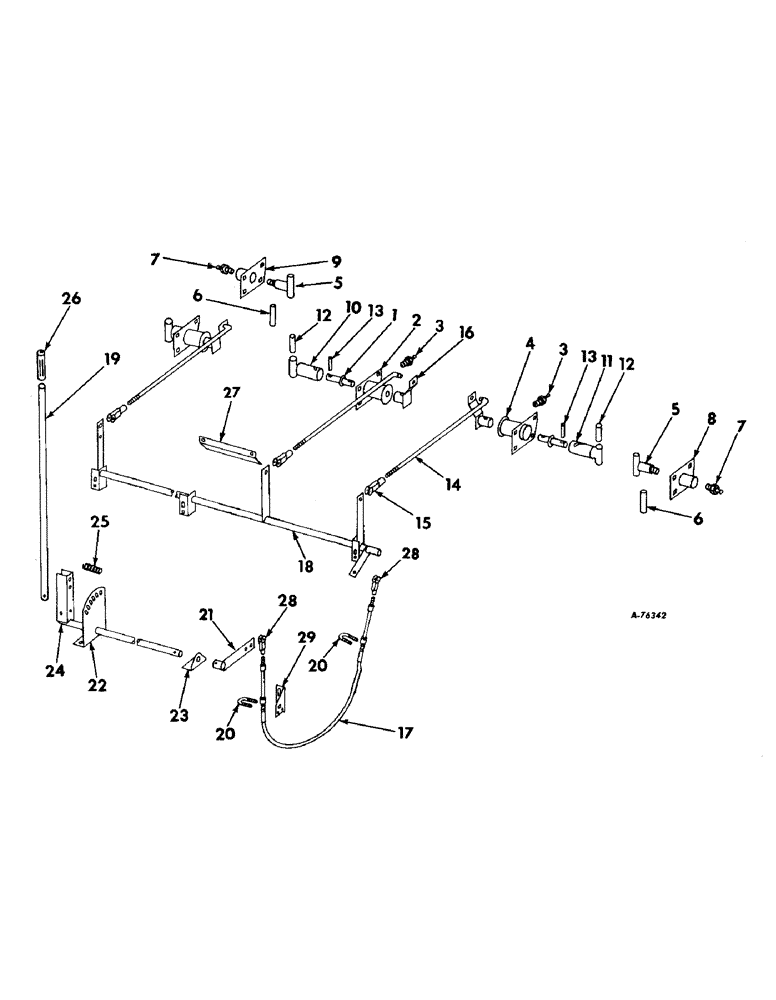

Запчасти Case IH 327WN (H-14) - STALK ROLL CONTROL (58) - ATTACHMENTS/HEADERS

1

580187R91

SHAFT ASSY, stalk roll control

3шт.

2

586016R91

HOUSING ASSY, stalk roll cam LH

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

8шт.

271500

SOCKET

7/16-14 hex

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 67-1/2 deg angle lub

3шт.

4

586017R91

HOUSING ASSY, stalk roll cam RH

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

4шт.

425-107

NUT,7/16"-14, G5

7/16-14 hex

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

5

587511R1

ANCHOR, stalk roll support

3шт.

17296R1

LOCK NUT,3/4"-16

NUT, 3/4-16 ESNA lock

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

Q5099

WASHER

25/32 x 1-3/4 x 11 ga

3шт.

Q216

WASHER

1-3/32 x 1-3/4 x 16 ga

24шт.

6

158783C1

BUSHING

stalk roll support anchor, 327WN serial no. 602 and above

3шт.

6

580184R1

BUSHING, stalk roll support anchor, 327WN serial no. 601 and below

3шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

3шт.

8

589692R91

HUB ASSY, stalk roll support RH

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

4шт.

271500

SOCKET

7/16-14 hex

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

9

589691R91

HUB ASSY, stalk roll support LH

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

8шт.

425-107

NUT,7/16"-14, G5

7/16-14 hex

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

10

580180R1

CAM, stalk roll adjustment LH

2шт.

11

580181R1

CAM, stalk roll adjustment RH

1шт.

12

158783C1

BUSHING

stalk roll adjustment cam, 327WN serial no. 602 and above

3шт.

12

580184R1

BUSHING, stalk roll adjustment cam, 327WN serial no. 601 and below

3шт.

13

584453R1

PIN

3/8 x 1-5/16 chamfered str

3шт.

14

589702R1

ROD, stalk roll control

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

15

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 light adj rod end

3шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

3шт.

114787

AXLE PIN

PIN, 1/2 x 1-27/64 rod end

3шт.

16

589709R91

HUB ASSY, stalk roll control cam

3шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

3шт.

17

589700R91

CABLE, stalk roll control

1шт.

103026

NUT,3/8"-24, G5

2шт.

18

161043C91

TUBE ASSY, stalk roll control, 28, 30 and 32 inch row spacing

1шт.

18

161041C91

TUBE ASSY, stalk roll control, 38 and 40 inch row spacing

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

19

589707R1

PIPE, stalk roll control

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

20

33175A

U-BOLT, stalk roll control cable

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

161034C91

ARM ASSY, stalk roll control, 327WN serial no. 602 and above

1шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

21

589788R91

ARM ASSY, stalk roll control, 327WN serial no. 601 and below

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

3шт.

22

589704R1

SECTOR, stalk roll control

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

589705R1

BRACKET, stalk roll torque pipe

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

24

161037C91

TUBE ASSY, stalk roll control torque, 327WN serial no. 602 and above

1шт.

24

589706R91

PIPE ASSY, stalk roll torque, 327WN serial no. 601 and below

1шт.

17673R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 2

3/8 x 3-1/2 hex-hd mach

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Esna stop 3/8"-16, GB

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, , for use w/589706R91 only 5/16" x 1 3/4", Slotted

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

Q3481

WASHER

1-1/32 x 1-1/2 x 16 ga

3шт.

25

C33464

SPRING, stalk roll control lever

1шт.

26

568043R1

GRIP, stalk roll control lever

1шт.

27

589356R1

BRACKET, stalk roll control cable

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

1шт.

102637

NUT,1/2"-13, G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

28

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2 rod end stalk roll control cable

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

114785

PIN, 3/8 x 1-3/32 rod end

2шт.

29

589792R1

SHIELD, stalk roll control torsion

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

3шт.
