Запчасти Case IH 3212-20 (20.13.27) - ROW UNIT, GEARBOX, BSN - YCS023090 (58) - ATTACHMENTS/HEADERS

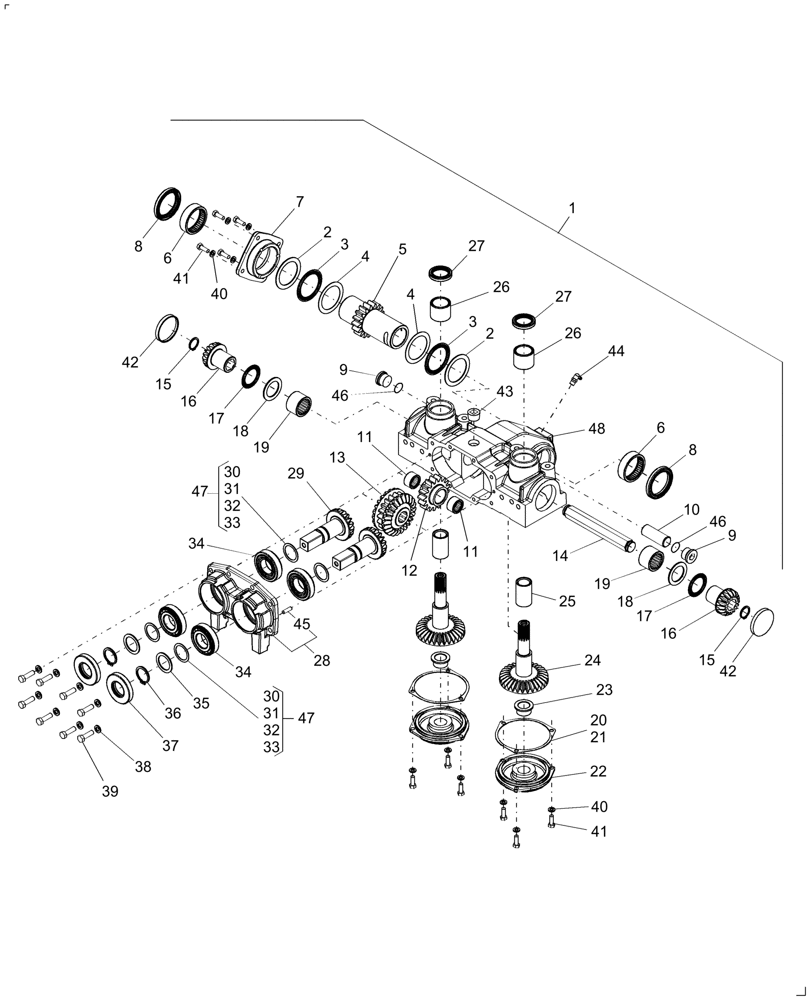

Схема запчастей Case IH 3212-20 - (20.13.27) - ROW UNIT, GEARBOX, BSN - YCS023090 (58) - ATTACHMENTS/HEADERS
11
21
11
15
18
41
22
16
38
qty
37
19
5
32
7
14
2
6
qty
32
36
26
40
2
17
4
2
16
9
4
1
35
47
20
2
46
2
3
27
29
8
28
23
qty
17
2
qty
27
41
18
24
8
qty
qty
46
9
2
13
33
48
42
12
39
44
30
qty
qty
19
34
31
10
26
42
33
47
45
15
31
3
34
qty
43
2
40
6
30
25

Артикул

Название

Примечание

Количество

1

87606697

GEARBOX ASSY

Complete Gearbox

1шт.

1

87606697R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

1

87606697C

CORE-GEARBOX

Return Number, Gearbox

1шт.

2

87012542

THRUST WASHER,57.15mm ID x 76.2mm OD x 1.6mm Thk

57.15 x 762.2 x 0.06

2шт.

3

87012543

THRUST BEARING,57.15mm ID x 76.2mm OD x 1.98mm W

57.15 x 76.2 x 2

2шт.

4

87012541

THRUST WASHER

57.15 x 76.2 x 0.76

2шт.

5

87012539

DRIVING GEAR

Spur

1шт.

6

762759

NEEDLE BEARING

57.15 x 66.675 x 19.05

2шт.

7

86542388

BEARING ASSY

1шт.

8

196011

OIL SEAL

57.15 x 76.2 x 9.525 NBR

2шт.

9

9841223

PLUG,1-1/16" - 12 ORB

[3/4"]

2шт.

10

86522005

IDLE SHAFT

Gear

1шт.

11

63805

NEEDLE BEARING

25.4 x 33.3375 x 19.05

2шт.

12

86519595

IDLER GEAR

Spur

1шт.

13

86540211

GEAR

Roll Drive

1шт.

14

86522050

SHAFT

Hex

1шт.

15

197297

SNAP RING,#98, Ext

2шт.

16

86622795

BEVEL GEAR

2шт.

17

66802

THRUST BEARING

Thrust, 38.1 x 55.55 x 1.984

2шт.

18

142436

THRUST WASHER

38.1 x 55.3 x 2.375

2шт.

19

86624334

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 31.75mm W

1.5 x 1.875 x 1.25

2шт.

20

86550515

SHIM,115.8mm ID x 127mm OD x 0.18mm Thk

0.508mm

2шт.

21

86550517

SHIM,115.8mm ID x 126.2mm OD x 0.5mm Thk

0.1778mm

4шт.

22

86531930

CAP COVER

2шт.

23

86521526

FLANGED BEARING

Bearing

2шт.

24

86530072

BEVEL GEAR

2шт.

25

87012540

SPACER,25.4mm ID x 34.92mm OD x 56.1mm L

2шт.

26

9827792

DRIVE BUSHING,35.01mm ID x 44.5mm OD x 38.1mm L

2шт.

27

634036

OIL SEAL

Oil, 34.925 x 50.8 x 7.874

2шт.

28

87660763

COVER ASSY

1шт.

29

87676663

SHAFT ASSY.

Stalk Roll Drive

2шт.

30

87039409

SHIM,35mm ID x 45mm OD x 0.5mm Thk

35 x 45 x 0.5

4шт.

31

87039408

SHIM,35mm ID x 45mm OD x 0.3mm Thk

35 x 45 x 0.3

4шт.

32

87039407

SHIM,35mm ID x 45mm OD x 0.15mm Thk

35 x 45 x 0.15

4шт.

33

87039406

SHIM,35mm ID x 45mm OD x 0.1mm Thk

35 x 45 x 0.1

4шт.

34

87282046

TAPERED BEARING,35mm ID x 72mm OD x 18.25mm W

TM#30207

4шт.

35

87644291

WASHER,35mm ID x 45mm OD x 2mm Thk

35 x 45 x 2.0

2шт.

36

87016944

SNAP RING,M34, Ext

2шт.

37

87589078

OIL SEAL

Oil, 35 x 72 x 12, NBR

2шт.

38

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

39

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

40

80681

LOCK WASHER,5/16"

10шт.

41

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

10шт.

42

87108807

PLUG

Cover

2шт.

43

509939

PLUG

Sq. Socket, 3/4" NPTF

1шт.

44

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

45

64780

DOWEL,1/4" x 1/2", HDN

Pin, Driven

2шт.

46

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

47

87282026

SHIM

Kit, Qty [2] Ref 30, [3] Ref 31, [4] Ref 32 & 33

4шт.

48

86622790

HOUSING

1шт.

Выбрано товаров: 50
