Артикул
Название
Примечание
Количество
1
87607076

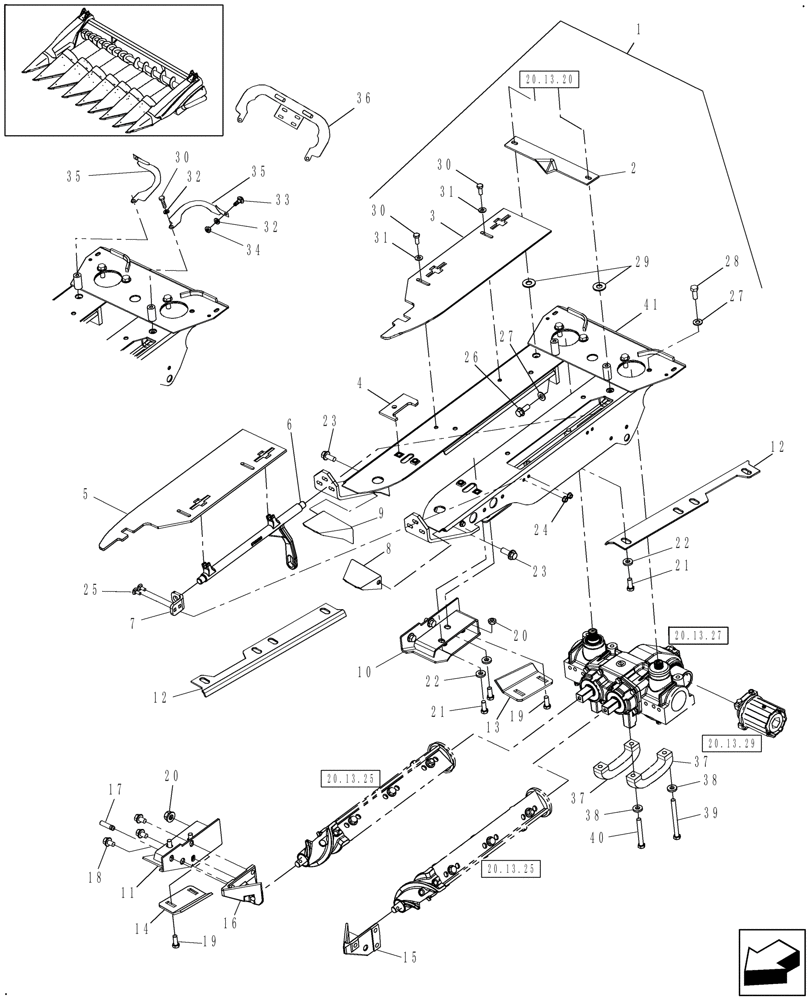

ROW UNIT
Includes All Parts of Figures 20.13.20, 21, 25, 27 & 29
1шт.
2
84417359
PLATE
Wear, Painted W/ Tungsten Carbide Tip
1шт.
2
47723637
PLATE
Wear, Painted
1шт.
3
84410217
PLATE
Stripper, RH, Flat
1шт.
4
87593351
SPACER
Idler Guide
1шт.
5
84410193
PLATE
Stripper, LH, Flat
1шт.
6
87593360
LEVER
Stripper Plate
1шт.
7
84473113
SUPPORT
1шт.
8
87676227
FILLER
LH
1шт.
9
87676223
FILLER
RH
1шт.
10
87571575
SUPPORT ASSY.
LH
1шт.
11
87571565
SUPPORT ASSY.
RH
1шт.
12
87641987
KNIFE
Pinching Roll
2шт.
13
87725510
KNIFE
LH
1шт.
14
87725511
KNIFE
RH
1шт.
15
1327204C1
SUPPORT
LH
1шт.
16
1327205C1
SUPPORT
RH
1шт.
17
87622769
SET SCREW,1/2" - 13 x 2"
1шт.
18
86512178
BOLT,Hex Flg, 1/2" - 13 x 3/4", Gr 5
6шт.
19
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
20
247780
SERRATED NUT,Flg, USR, 3/8"-16
4шт.
21
43260
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
10шт.
22
87376144
WASHER,13mm ID x 28mm OD x 5mm Thk
13 x 28 x 5, HTS
10шт.
23
86511479
BOLT,Hex Flg, M8 x 20mm
2шт.
24
247780
SERRATED NUT,Flg, USR, 3/8"-16
2шт.
25
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
26
86521614
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
4шт.
27
86513238
LOCK WASHER,.515” ID x 1.070” OD x .120” TK
1/2"
8шт.
28
87670
BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5
4шт.
29
1565
WASHER,5/8" x 1 1/4" x .134"
2шт.
32
80680
LOCK WASHER,3/8 0.381 CST ZND
1шт.
33
86512424
CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd
1шт.
34
100016
NUT,M10 x 1.5, Cl 8
1шт.
35
86729260
ANGLE
90° Shape, 6 Row
12шт.
35
86729260
ANGLE
90° Shape, QTY [2] 8R22", 12R20"; [16] 8R30"/36"/38"/70cm; [24] 12R30"
1шт.
36
86729321
STRIPPER
U-Shape, 12R20", Model Year 2010 And Prior
11шт.
36
84251944
STRIPPER
U-Shape, 12R20", Model Year 2011
11шт.
36
86729262
PLATE
U-Shape, 8R22", Model Year 2010 And Prior
2шт.
36
84260423
STRIPPER
U-Shape, 8R22", Model Year 2011
2шт.
36
86729322
STRIPPER
U-shape, Qty [5] 8 Row 22"; [11] 12 Row 22", Model Year 2010 And Prior
1шт.
36
84260421
STRIPPER
U-shape, Qty [5] 8 Row 22"; [11] 12 Row 22", Model Year 2011
1шт.
84251938
LOCKING TAB
Model Year 2011
17шт.
825-5148
SERRATED NUT,M8, Flg Ser
Model Year 2011
17шт.
37
87537581
CLAMP
Row Unit
12шт.
38
80679
LOCK WASHER,1/20.507 CST ZND
24шт.
39
86000020
BOLT,Hex, 1/2" - 13 x 6", Gr 5
12шт.
40
86505993
BOLT,Hex, 1/2" - 13 x 4", Gr 5
12шт.
41
87593349
FRAME ASSY
1шт.
Выбрано товаров: 51
