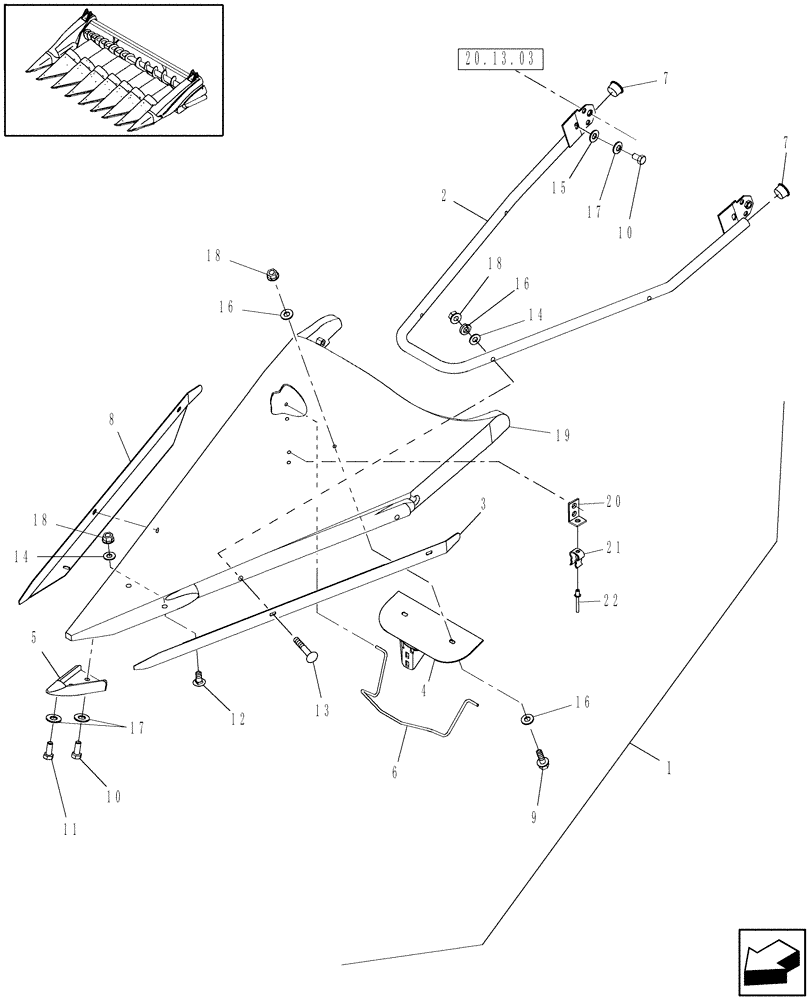

Запчасти Case IH 3212-20 (20.13.01) - INNER DIVIDERS, POINT, 20", 22", 30", 70CM (58) - ATTACHMENTS/HEADERS

1

87025407

HOOD

W/Reinforced Ref 4, AHHC, 30" Only

1шт.

1

86978704

DIVIDER

W/Unreinforced Ref 4, 30" Only

1шт.

2

87362248

TUBE,898.6 mm L

30"

1шт.

2

86729290

TUBE,526.80, 897.60 mm L

70CM

1шт.

2

86729268

TUBE,756.30, 341.80 mm L

20"/22"

1шт.

3

86553709

WEAR STRIP

LH, 30" & 70cm

1шт.

3

86555870

WEAR STRIP

LH, 20"/22"

1шт.

4

86583860

PLATE

Unreinforced, 30"/70cm

1шт.

4

87020036

PLATE

Reinforced For AHHC Connection, 30"/70cm

1шт.

4

86583885

PLATE

Unreinforced, 20"/22"

1шт.

4

87020038

PLATE

Reinforced For AHHC Connection, 20"/22"

1шт.

5

87015179

POINT

30" & 70 CM

1шт.

5

87015178

POINT

20"/22"

1шт.

6

86535508

PROP

Snout, 30"/70cm

1шт.

6

86556364

PROP

Snout, 20"/22"

1шт.

7

86583879

PLUG

2шт.

8

86553710

WEAR STRIP

RH, 30"/70cm

1шт.

8

86555871

WEAR STRIP

RH, 20"/22"

1шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

30"/70cm

3шт.

10

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

20"/22"

3шт.

11

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

12

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

13

86512421

CARRIAGE BOLT,Sq Nk, M8 x 60mm, Cl 8.8

4шт.

14

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

6шт.

15

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

18

86528579

NUT,M8 x 1.25

8шт.

19

86980207

DIVIDER

30"

1шт.

19

86980205

POINT

70cm

1шт.

19

86980203

POINT

20"/22"

1шт.

20

87024913

ANGLE BAR

20"/22" Only

1шт.

21

323307

CLAMP

20"/22" Only

1шт.

22

445394

RIVET,Pop, 3/16" x 1/2" OAL

20"/22" Only, 2 Rivets Plug Holes RH Side

3шт.
