Запчасти Case IH 3212-20 (20.03.02) - MAIN DRIVE TO ROW UNITS (58) - ATTACHMENTS/HEADERS

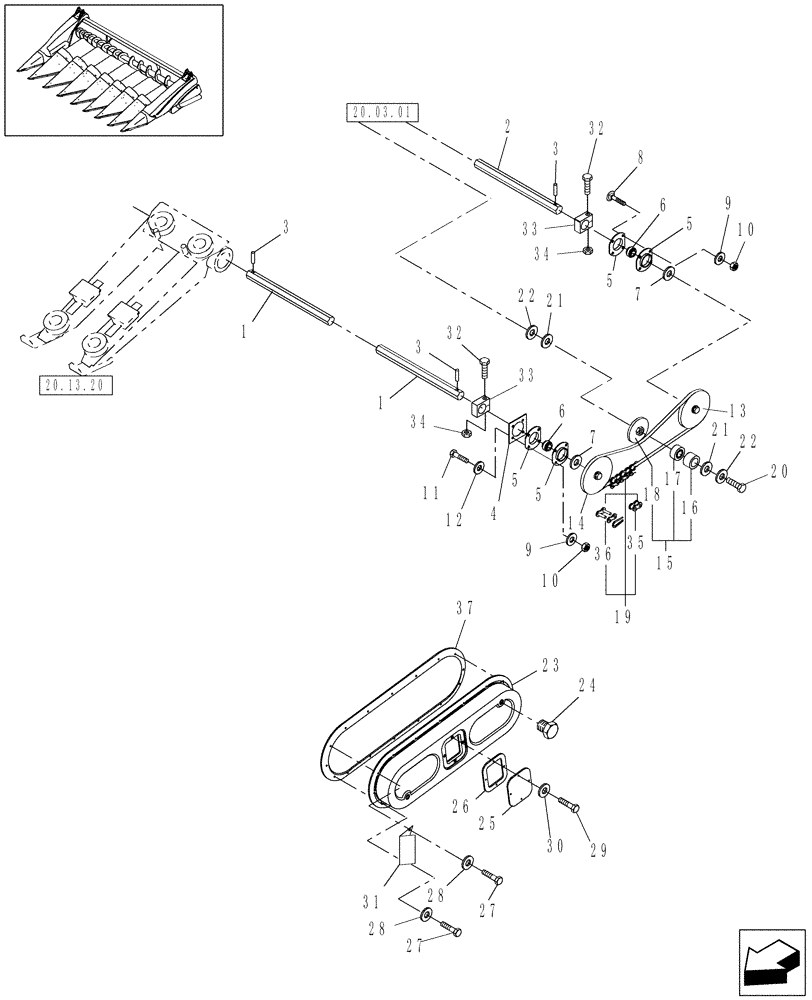

Схема запчастей Case IH 3212-20 - (20.03.02) - MAIN DRIVE TO ROW UNITS (58) - ATTACHMENTS/HEADERS
27
33
26
3
20
28
11
36
24
1
19
10
33
37
29
17
5
10
22
4
5
27
9
5
6
34
28
35
18
20.13.20
3
20.03.01
21
12
2
14
21
1
23
32
25
3
30
6
5
16
7
9
15
8
34
22
32
7
31
13

Артикул

Название

Примечание

Количество

1

86524067

SHAFT

6 Row 30"/70cm

1шт.

1

86563383

SHAFT

6 Row 36"/38"

1шт.

1

86549162

SHAFT

8 Row 22", LH & RH

2шт.

1

86543514

SHAFT

8 Row 30" & 12 Row 20", LH

1шт.

1

86543515

SHAFT

8 Row 30" & 12 Row 20", RH

1шт.

1

86563110

SHAFT

8 Row 70cm LH

1шт.

1

86563185

SHAFT

8 Row 70cm RH

1шт.

1

86532662

SHAFT

8 Row 36"/38" LH

1шт.

1

86532663

SHAFT

8 Row 36"/38" RH

1шт.

1

86524067

SHAFT

12 Row 30" LH

1шт.

1

86524064

SHAFT

12 Row 30" RH

1шт.

1

86548800

SHAFT

12 Row 22" LH

1шт.

1

86548799

SHAFT

12 Row 22" RH

1шт.

2

87029331

PRIMARY SHAFT

6 Row 30"/70cm

1шт.

2

87029333

PRIMARY SHAFT

6 Row 36"/38"

1шт.

2

87029331

PRIMARY SHAFT

8 Row 22"

2шт.

2

87029277

PRIMARY SHAFT

8 Row 30", 12 Row 20"

2шт.

2

87029333

PRIMARY SHAFT

8 Row 70cm

2шт.

2

87029335

PRIMARY SHAFT

8 Row 36"/38"

2шт.

2

87029337

PRIMARY SHAFT

12 Row 22"

2шт.

2

87029339

PRIMARY SHAFT

12 Row 30"

2шт.

3

88182

COTTER PIN,1/4" OD x 2" L

4шт.

4

87109883

PLATE

Flange, Qty [1] 6 Row

2шт.

5

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

6 Row, Model Year 2010 And Prior

4шт.

5

84314678

FLANGE

6 Row, Model 2011

4шт.

5

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

8 Row 22"/30"/70cm, 12 Row 20", Model Year 2010 And Prior

8шт.

5

84314678

FLANGE

8 Row 22"/30"/70cm, 12 Row 20", Model Year 2011

8шт.

5

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

8 Row 36"/38", 12 Row 22"/30", Model Year 2010 And Prior

12шт.

5

84314678

FLANGE

8 Row 36"/38", 12 Row 22"/30", Model Year 2011

12шт.

6

86523785

BALL BEARING,31.78mm Hex x 80mm OD x 36.5mm W

6 Row

2шт.

6

86523785

BALL BEARING,31.78mm Hex x 80mm OD x 36.5mm W

8 Row 22"/30"/70cm, 12 Row 20"

4шт.

6

86523785

BALL BEARING,31.78mm Hex x 80mm OD x 36.5mm W

8 Row 36"/38", 12 Row 22"/30"

6шт.

7

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1-17/32" x 2-3/8" x 0.035"

1шт.

8

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

10

9706685

NUT,M12 x 1.75, Cl 8

1шт.

11

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

12

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

1шт.

13

86524051

DRIVING SPROCKET

28T, 6Row

1шт.

13

86524051

DRIVING SPROCKET

28T, 12 Row

2шт.

13

86524052

DRIVING SPROCKET

34T, 8 Row, Model Year 2010 And Prior

2шт.

13

84410256

SPROCKET

36T, 8 Row, Model Year 2011

2шт.

14

86614231

SPROCKET ASSY.

22T, 6 Row, Model Year 2010 And Prior

1шт.

14

84410253

SPROCKET

20T, 6 Row, Model Year 2011

1шт.

14

86614231

SPROCKET ASSY.

22T, 12 Row, Model Year 2010 And Prior

2шт.

14

84410253

SPROCKET

20T, 12 Row, Model Year 2011

2шт.

14

86614233

SPROCKET ASSY.

26T, 8 Row

2шт.

15

86619245

SPROCKET ASSY.,15T

15T, 6 Row

1шт.

15

86619245

SPROCKET ASSY.,15T

15T, 12 Row

2шт.

15

86619126

SPROCKET ASSY.,15T

15T, 8 Row, Integral Bearing

2шт.

16

45396

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

6 Row & 12 Row

1шт.

17

84130591

SPACER

6 Row & 12 Row

1шт.

18

768197

SPROCKET ASSY.

15T, 6 & 12 Row

1шт.

19

86614643

CHAIN (AG),#80, 75 Links x 25.4mm = 1905mm

#80, 75", 6 Row, Model Year 2010 And Prior

1шт.

19

84406445

CHAIN

#80, 74", 6 Row, Model Year 2011

1шт.

19

86614643

CHAIN (AG),#80, 75 Links x 25.4mm = 1905mm

#80, 75", 12 Row, Model Year 2010 And Prior

2шт.

19

84406445

CHAIN

#80, 74", 12 Row, Model Year 2011

2шт.

19

86614644

CHAIN,#60, 96 Links x 19.05mm = 1828.8mm

#60, 72", 8 Row, Model Year 2010 And Prior

2шт.

19

87000841

BOLT

#60, 73.5", 8 Row, Model Year 2011

2шт.

20

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

1шт.

21

86900752

WASHER

0.667" x 1-5/16" x 0.075"

1шт.

22

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

23

86620907

SHIELD

6 Row, See Figure Note

1шт.

23

86620907

SHIELD

8 & 12 Row, See Figure Note

2шт.

24

214389

PLUG,3/4" - 16 ORB

1шт.

25

86524309

COVER

1шт.

26

86551857

GASKET,6.35mm Thk

6 Row

1шт.

26

86551857

GASKET,6.35mm Thk

8 & 12 Row

2шт.

27

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

Model Year 2010 And Prior

1шт.

27

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

Model Year 2011

1шт.

28

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

1шт.

29

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

31

86544460

SHIELD

6 Row 36"/70cm, Model Year 2010 And Prior

1шт.

31

86544460

SHIELD

8 Row 36"

2шт.

32

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

33

86611827

CLAMP,32.08mm - 35.16mm

1шт.

34

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

35

86977428

CONNECTING LINK

#80, Offset, 6 & 12 Row

1шт.

36

288063

CONNECTING LINK

#80 W/Spring Clip, 6 & 12 Row

1шт.

36

165590

CONNECTING LINK

#60 W/Spring Clip, 8 Row

1шт.

37

87655408

SEAL

6 Row

1шт.

37

87655408

SEAL

8 & 12 Row

2шт.

Выбрано товаров: 83
