Запчасти Case IH 3208-36 (20.03.12) - AUGER DRIVE, DOUBLE, DRIVING SIDE (58) - ATTACHMENTS/HEADERS

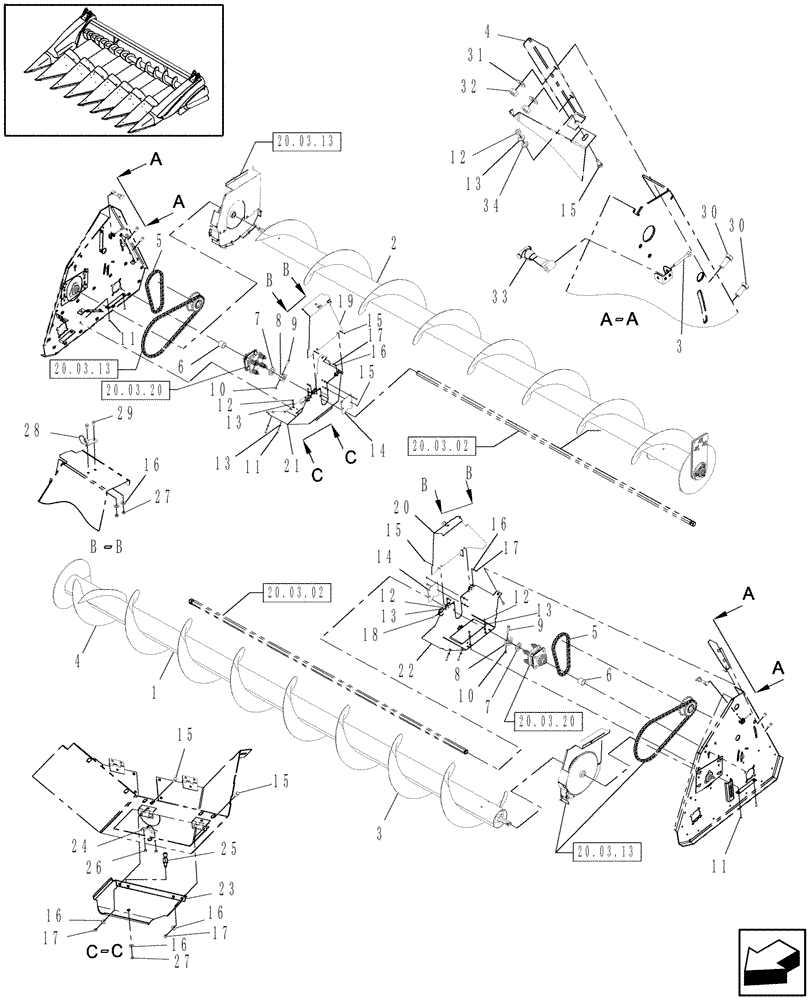

Схема запчастей Case IH 3208-36 - (20.03.12) - AUGER DRIVE, DOUBLE, DRIVING SIDE (58) - ATTACHMENTS/HEADERS
30
16
7
5
13
8
16
16
12
20
6
9
15
17
6
3
12
b
34
28
13
17
14
12
22
23
19
18
4
32
15
8
1
12
20.03.13
20.03.13
20.03.20
20.03.02
20.03.02
20.03.20
20.03.13
b
29
27
17
27
2
14
13
10
4
15
16
10
15
13
b
24
b
b
7
33
25
11
16
11
26
11
21
15
13
31
b
5
17
15
3
9
16
30

Артикул

Название

Примечание

Количество

1

86615199

AUGER

LH, 8 Row-36" & 38", Model Year 2010 And Prior

1шт.

1

84375898

AUGER

LH, 8 Row-36" & 38", Model Year 2011

1шт.

1

86615203

AUGER

LH, 12 Row-22", Model Year 2010 And Prior

1шт.

1

84375779

AUGER

LH, 12 Row-22", Model Year 2011

1шт.

1

86615193

AUGER

LH, 12 Row-30", Model Year 2010 And Prior

1шт.

1

84376266

AUGER

LH, 12 Row-30", Model Year 2011

1шт.

2

86615200

AUGER

RH, 8 Row-36" & 38", Model Year 2010 And Prior

1шт.

2

84375949

AUGER

RH, 8 Row-36" & 38", Model Year 2011

1шт.

2

86615205

AUGER

RH, 12 Row-22", Model Year 2010 And Prior

1шт.

2

84375878

AUGER

RH, 12 Row-22", Model Year 2011

1шт.

2

86615194

AUGER

RH, 12 Row-30", Model Year 2010 And Prior

1шт.

2

84376240

AUGER

RH, 12 Row-30", Model Year 2011

1шт.

3

88182

COTTER PIN,1/4" OD x 2" L

2шт.

4

87284816

BRACKET

LH

1шт.

4

87284815

BRACKET

RH

1шт.

5

87284076

CHAIN

#60, 3/4P, 48 Links, 36" Length, 1 Connector W/Spring Clips

2шт.

6

87501867

SPACER

Hex Shaft

2шт.

7

86555132

WASHER,36.6mm ID x 63.5mm OD x 6.35mm Thk

Rubber, 37.35mm ID, 62.50mm OD

2шт.

8

86611827

CLAMP,32.08mm - 35.16mm

2шт.

9

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

10

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

12

9706690

NUT,M8 x 1.25, Cl 8

15шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

14

87501391

PLATE ASSY.

Cover

2шт.

15

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

16шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

16шт.

17

9706755

NUT,M6, Cl 8

16шт.

18

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

87502664

SHIELD

RH, W/Decal

1шт.

20

87502663

SHIELD

LH, W/Decal

1шт.

21

87502551

SHIELD

Bottom, RH

1шт.

22

87502550

SHIELD

Bottom, LH

1шт.

23

87500545

DOOR ASSY.

Door, Clean Out, W/Decal

2шт.

24

86998688

LATCH

Clip

2шт.

25

87422429

STUD

Ball

2шт.

26

87490325

RIVET,Pop, 1/8" x 1/4"

Blind

4шт.

27

87016571

NUT,M5, Cl 5

2шт.

28

86975624

LATCH HOOK

2шт.

29

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

4шт.

30

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

31

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

7шт.

32

9706685

NUT,M12 x 1.75, Cl 8

7шт.

33

86975220

LATCH HOOK

Rubber

2шт.

34

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

Выбрано товаров: 45
