Запчасти Case IH 3208-36 (20.06.01) - ELECTRICAL, LIGHTS AND HARNESS (55) - ELECTRICAL SYSTEMS

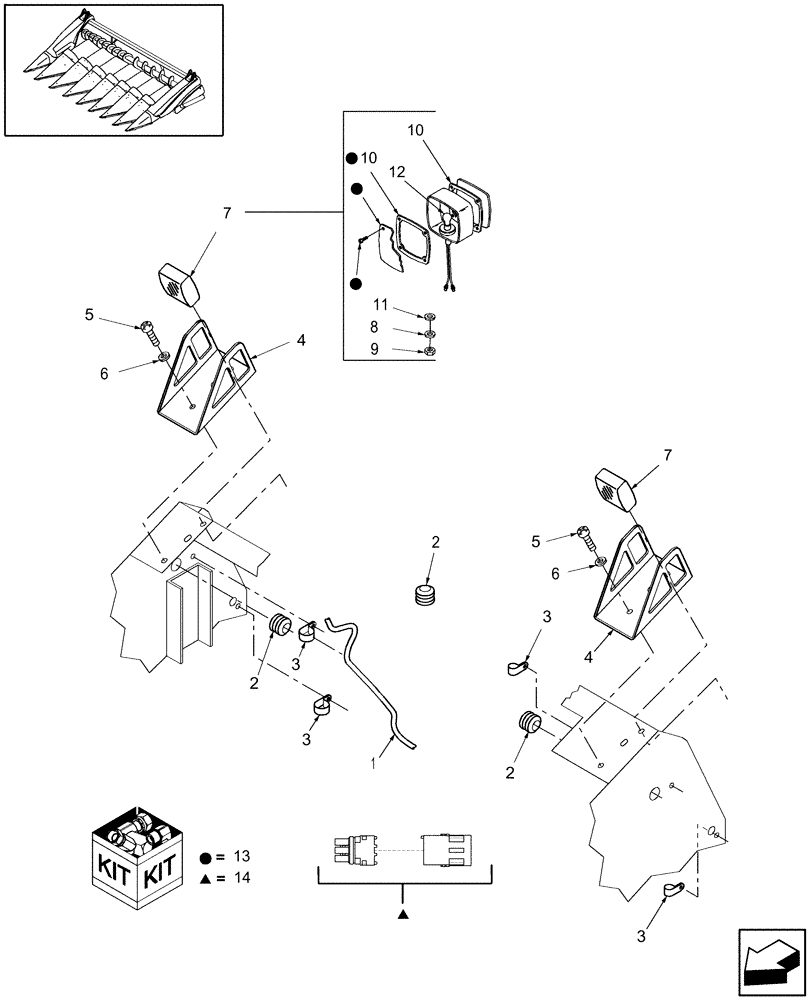

Схема запчастей Case IH 3208-36 - (20.06.01) - ELECTRICAL, LIGHTS AND HARNESS (55) - ELECTRICAL SYSTEMS
10
4
1
3
5
2
10
3
7
14
6
2
3
6
13
5
9
7
8
2
3
11
4
12

Артикул

Название

Примечание

Количество

1

86980633

WIRE HARNESS

15 FT, 6 Row 30"/70cm, 8 Row-22

1шт.

1

86980631

WIRE HARNESS

30 FT, 8 Row 36/38", 12 Row-30"

1шт.

1

86980632

WIRE HARNESS

22 FT, 6 Row 36/38", 8 Row-30"/70cm, 12 Row-20/22"

1шт.

2

574820

GROMMET

3шт.

3

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

11шт.

4

86538829

BRACKET

Light

2шт.

5

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

7

86536572

LAMP

AMBER DOUBLE LENS, Includes Ref 8 Thru 12

2шт.

8

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

9

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

10

853709

GASKET,1.65mm Thk

1шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

12

529068

BULB,#1156, 12V, 21W

1шт.

13

F0NN15N581BA

LENS

Amber, Qty 1 Lens & Gasket & Qty 4 #10 x 1/2" Screws

1шт.

14

84269299

KIT

Campaign, Harness Repair

1шт.

Выбрано товаров: 16
