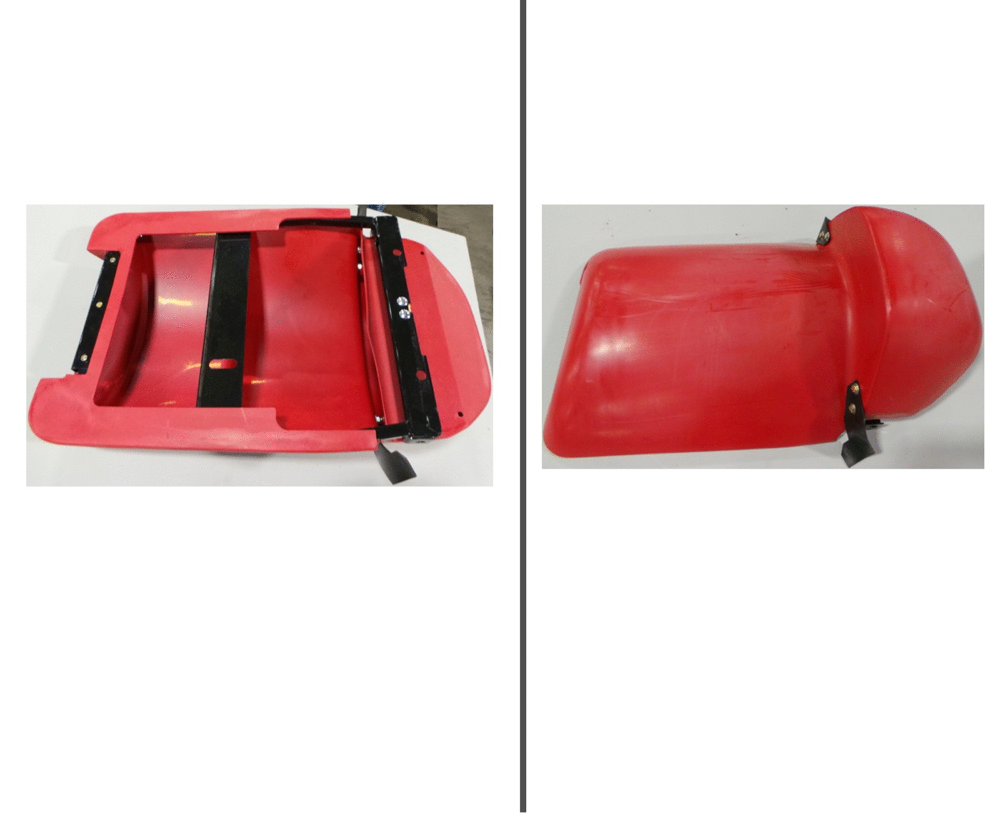

Запчасти Case IH 3208-30 (20.15.13[01]) - KIT HOOD ASSY 30 IN (58) - ATTACHMENTS/HEADERS

1

86620224

PACKAGE

Incl 2 - 15

1шт.

2

87028633

SHIELD

1шт.

3

86729276

HINGE

1шт.

4

86729270

BRACKET

1шт.

5

86542930

CHANNEL

1шт.

6

86526475

FLAP

2шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

8

100016

NUT,M10 x 1.5, Cl 8

4шт.

9

43362

NUT,M8 x 1.25, Cl 10

3шт.

10

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

3шт.

11

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

13

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.
