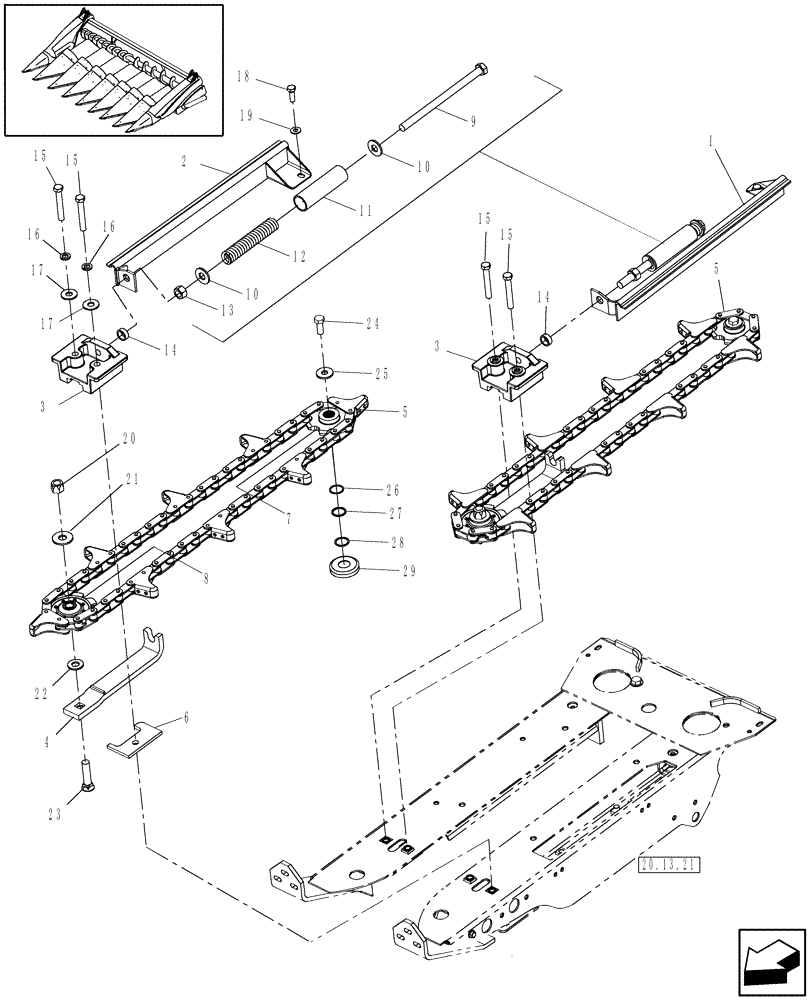

Запчасти Case IH 3208-30 (20.13.20) - ROW UNIT, GATHERING CHAIN (58) - ATTACHMENTS/HEADERS

1

87593362

GUARD ASSY.

RH

1шт.

2

87593361

GUARD ASSY.

LH

1шт.

3

86611369

BRACKET

Idler

2шт.

4

87029139

BRACKET

Idler

2шт.

5

86978515

CHAIN (AG)

Gathering, Chrome Pin, Model Year 2010 And Prior

2шт.

5

86979313

CHAIN (AG)

Gathering, Black Pin, Model Year 2010 And Prior

2шт.

5

84284709

GATHERING CHAIN,1987.3 mm L

CA555, 6 Paddle, Model Year 2011

2шт.

6

87593351

SPACER

Idler Guide

2шт.

7

86837081

SPROCKET

7T, Splined Bore

2шт.

7

84347361

SPROCKET

7T

2шт.

8

84549635

SPROCKET,8T

8T, Idler

2шт.

9

675499

BOLT,Hex, 5/8" - 11 x 10", Gr 5

Cap, HH, G5, 5/8"-11 x 10", Adjusting

2шт.

10

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

5/8", Hardened

4шт.

11

86583945

TUBE,38.10 mm OD x 133.40 mm L

2шт.

12

86583948

SPRING

2шт.

13

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

14

86596051

SPACER

2шт.

15

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

18

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

20

19670

NUT,5/8"-11, GB

2шт.

21

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

22

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

23

280540

PLOW BOLT,#3, 5/8" - 11 x 2 3/4", Gr 5

2шт.

24

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

25

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

17/32" ID x 1-7/16" OD x 0.135" Thk

2шт.

26

245532

WASHER,25.53mm ID x 31.24mm OD x 0.38mm Thk

1" ID x 1-1/4" OD x 1/64" Thk

2шт.

27

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

1.018" ID x 1.23" OD x 0.060" Thk

2шт.

28

80245530

WASHER,25.53mm ID x 31.24mm OD x 0.91mm Thk

1.018" ID x 1.23" OD x 0.036" Thk

2шт.

29

86611408

SHIELD

2шт.
