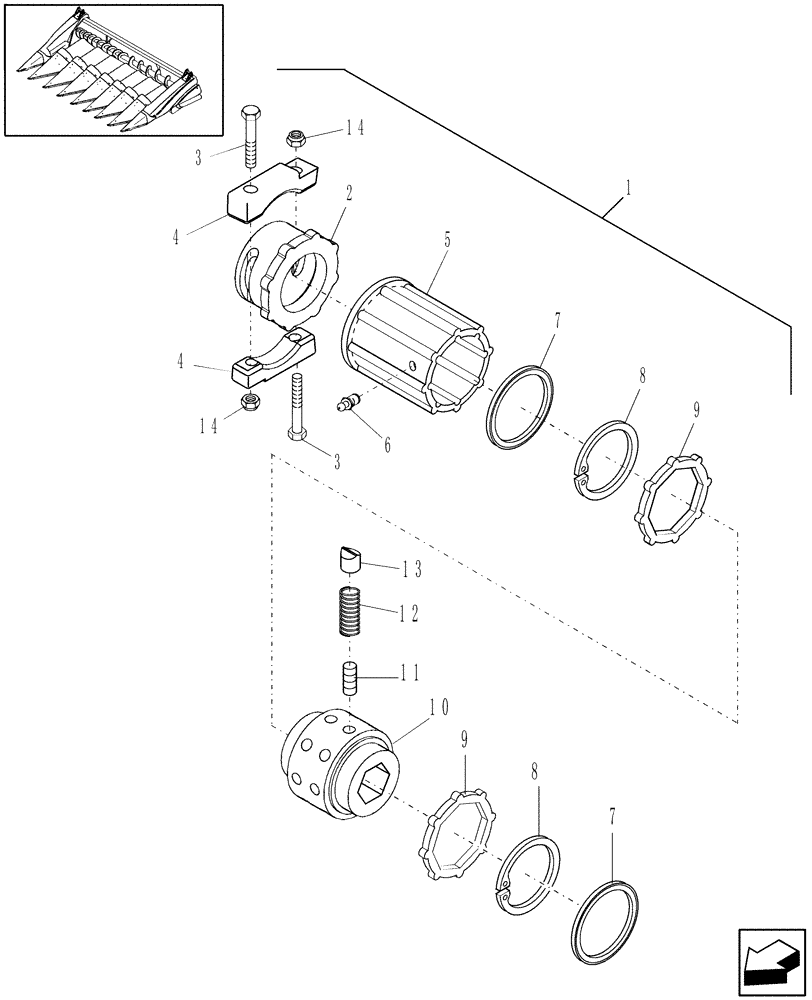

Запчасти Case IH 3206-38 (20.13.29) - ROW UNIT, RADIAL PIN SLIP CLUTCH (58) - ATTACHMENTS/HEADERS

1

87572474

CLUTCH ASSEMBLY

1шт.

2

87607110

FLANGE

1шт.

3

280109

BOLT,Hex, 3/8" - 16 x 4", Gr 8

2шт.

4

87607111

CLAMP

2шт.

5

87607109

HOUSING

1шт.

6

84447449

LUBE NIPPLE,M8.2 x 1

Straight, M8.2 x 1 Tapered

2шт.

7

86634290

SEALING RING,58.5mm ID x 84mm OD x 6mm Thk

2шт.

8

300633

SNAP RING,M80, Internal

2шт.

9

86636027

DISC

2шт.

10

87020940

HUB

1шт.

11

297908A1

SPRING

11шт.

12

386510

SPRING,Compression, 13mm OD X 13.2mm L

16шт.

13

700703406

CAM

16шт.

14

87343999

LOCK NUT

3/4-16 Lock Nut, All Metal, Non-Dir

2шт.
