Запчасти Case IH 3206-36 (20.12.01) - MAIN FRAME, FLOORS, REAR PANELS (58) - ATTACHMENTS/HEADERS

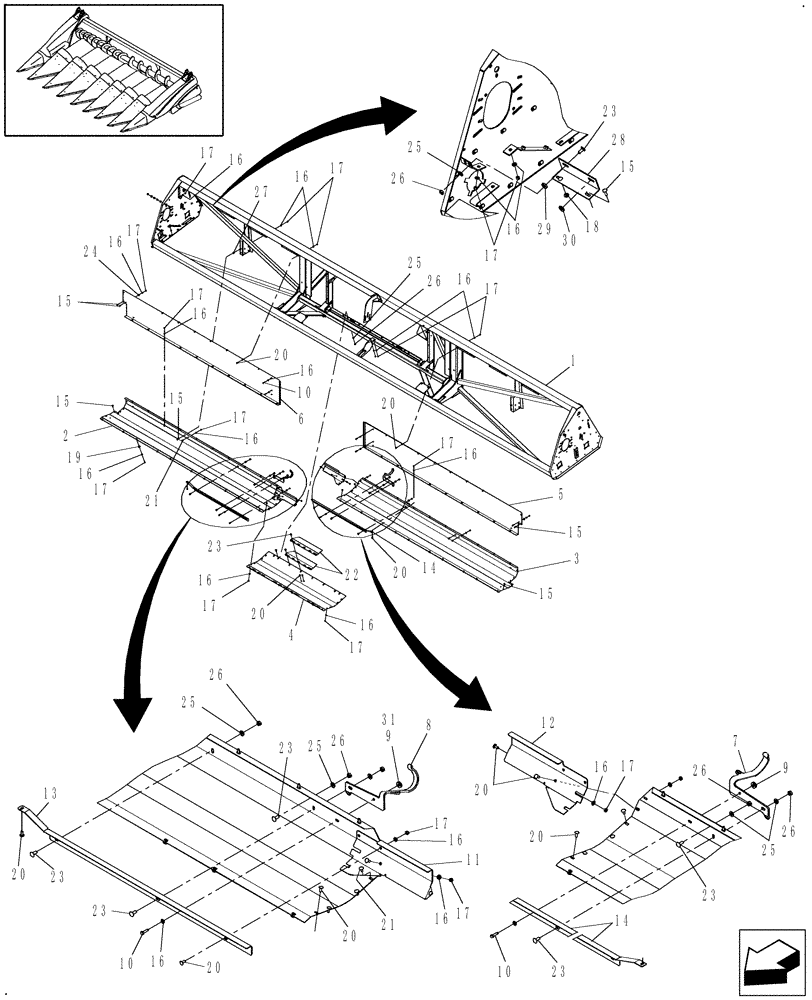

Схема запчастей Case IH 3206-36 - (20.12.01) - MAIN FRAME, FLOORS, REAR PANELS (58) - ATTACHMENTS/HEADERS
16
5
6
26
3
15
1
17
20
16
27
20
9
2
25
25
16
17
16
8
30
17
17
26
17
21
14
23
16
21
16
20
16
15
7
26
14
20
17
20
26
17
15
16
16
10
25
17
29
25
12
16
20
17
23
9
16
23
23
31
15
17
26
20
20
19
17
10
22
16
18
23
16
17
4
26
23
13
15
16
17
24
16
16
28
10
15
20
25
23
11
17

Артикул

Название

Примечание

Количество

1

87500818

FRAME

6 Row 30"/70cm, & 8 Row 22"

1шт.

1

87500821

FRAME

6 Row 36 & 38", 8 Row 70cm

1шт.

1

87500819

FRAME

8 Row 30", 12 Row 20"

1шт.

1

87500822

FRAME

8 Row 36 & 38"

1шт.

1

87500823

FRAME ASSY

12 Row 22"

1шт.

1

87500820

FRAME

12 Row 30"

1шт.

2

86614770

FLOOR

RH, 6 Row 30"/70cm, 8 Row 22"

1шт.

2

86614859

FLOOR

RH, 6 Row 36 & 38", 8 Row 70cm

1шт.

2

86615076

FLOOR

RH, 8 Row 30", 12 Row 20"

1шт.

2

86615068

FLOOR

RH, 8 Row 36 & 38"

1шт.

2

86614870

FLOOR

RH, 12 Row 22"

1шт.

2

86614847

FLOOR

RH, 12 Row 30"

1шт.

3

86614771

FLOOR

LH, 6 Row 30"/70cm, 8 Row 22"

1шт.

3

86614858

FLOOR

LH, 6 Row 36 & 38", 8 Row 70cm

1шт.

3

86615075

FLOOR

LH, 8 Row 30", 12 Row 20"

1шт.

3

86615069

FLOOR

LH, 8 Row 36 & 38"

1шт.

3

86614869

FLOOR

LH, 12 Row 22"

1шт.

3

86614846

FLOOR

LH, 12 Row 30"

1шт.

4

87500928

FLOOR

Center, Common All Header Sizes

1шт.

5

87501220

PANEL

Rear, LH, W/Decal, 6 Row 30"/70cm, 8 Row 22"

1шт.

5

87501250

PANEL

Rear, LH, W/Decal, 6 Row 36 & 38", 8 Row 70cm

1шт.

5

87501222

PANEL

Rear, LH, W/Decal, 8 Row 30", 12 Row 20"

1шт.

5

87501228

PANEL

Rear, LH, W/Decal, 8 Row 36 & 38"

1шт.

5

87501230

PANEL

Rear, LH, W/Decal, 12 Row 22"

1шт.

5

87501224

PANEL

Rear, LH, W/Decal, 12 Row 30"

1шт.

6

87501221

PANEL

Rear, RH, W/Decal, 6 Row 30"/70cm, 8 Row 22"

1шт.

6

87501227

PANEL

Rear, RH, W/Decal, 6 Row 36 & 38", 8 Row 70cm

1шт.

6

87501223

PANEL

Rear, RH, W/Decal, 8 Row 30", 12 Row 20"

1шт.

6

87501229

PANEL

Rear, RH, W/Decal, 8 Row 36 & 38"

1шт.

6

87501231

PANEL

Rear, RH, W/Decal, 12 Row 22"

1шт.

6

87501225

PANEL

Rear, RH, W/Decal, 12 Row 30"

1шт.

7

87024383

BRACKET

RH, PTO Storage, 8 Row 30"/70cm, 8 Row 36/38", All 12 Row

1шт.

8

87024381

BRACKET

LH, PTO Storage, Common All Sizes

1шт.

9

87021929

WASHER

10.3 x 25.4 x 5.7, Qty 1 6 Row

2шт.

10

276-14820

SCREW

6шт.

11

87281638

TROUGH

Extension, RH

1шт.

12

87281637

TROUGH

Extension, LH

1шт.

13

87281639

STRIPPER

RH

1шт.

14

87281640

STRIPPER

LH

1шт.

15

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

17

9706690

NUT,M8 x 1.25, Cl 8

1шт.

18

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

2шт.

19

140041

WASHER,M8 x 28mm OD x 3mm Thk

1шт.

20

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

21

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

22

87281667

PLATE

Transition

2шт.

23

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

12шт.

24

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

6шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

26

100016

NUT,M10 x 1.5, Cl 8

16шт.

27

103789

SPACER

3/8" x 3/4" x 1/2", 6 Row, 8 Row 36/38", 12 Row 22" & 30"

2шт.

28

86555767

ANGLE

6 Row 36"/70cm, 8 Row 36"

2шт.

28

86555768

ANGLE

8 Row 30"

2шт.

29

86620023

SPACER

13/32" x 1" x 1/4"

2шт.

30

86620024

WASHER,10.3mm ID x 25.4mm OD x 5.2mm Thk

(13/32" x 1" x 3/16")

2шт.

31

103789

SPACER

3/8" x 3/4" x 1/2", Used in place of Ref 9 for 6 Row

1шт.

Выбрано товаров: 57
