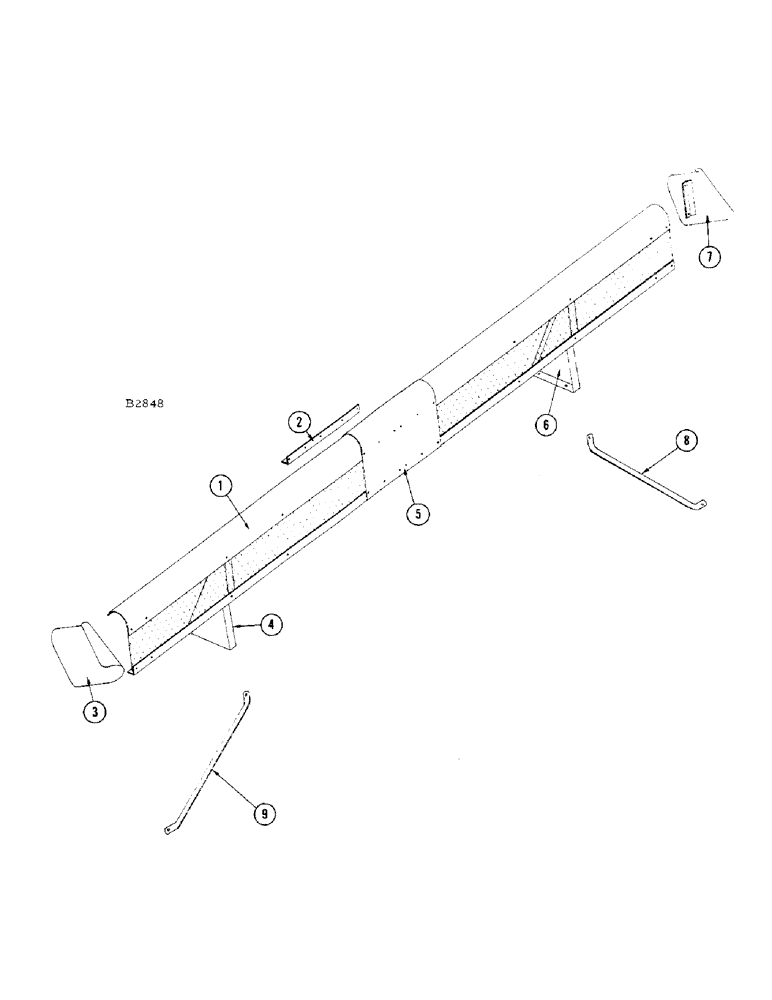

Запчасти Case IH 306 (52) - TALL CORN DEFLECTOR, DECALS (58) - ATTACHMENTS/HEADERS

1

F92851

DEFLECTOR - tall corn

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) fl. wshr. (195-521) and L.W. (192-20)

2шт.

195-525

WASHER,3/8", SAE

FLATWASHER - 3/8"

4шт.

2

F54817

ANGLE - center, deflector

1шт.

3

F92852

RIGHT END - deflector

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

4шт.

4

F54822

SUPPORT - deflector, R.H.

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) L.W. (192-22) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

5

F54818

CENTER - deflector

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

8шт.

6

F54823

SUPPORT - deflector, L.H.

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut (129-102) L.W. (192-20)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) L.W. (192-22) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

7

F92853

LEFT END - deflector

1шт.

8

F55150

BRACE - L.H.

1шт.

9

F55149

BRACE - R.H.

1шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

; Nut (129-102) L.W. (192-20) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) L.W. (192-21) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

B17165

DECAL KIT - 306 corn head

1шт.

321-1421

DECAL - #100 safety

2шт.

321-1420

DECAL - safety latch

1шт.

321-1274

"306" MODEL DECAL

2шт.

321-20

DECAL

PATENT DECAL

1шт.
