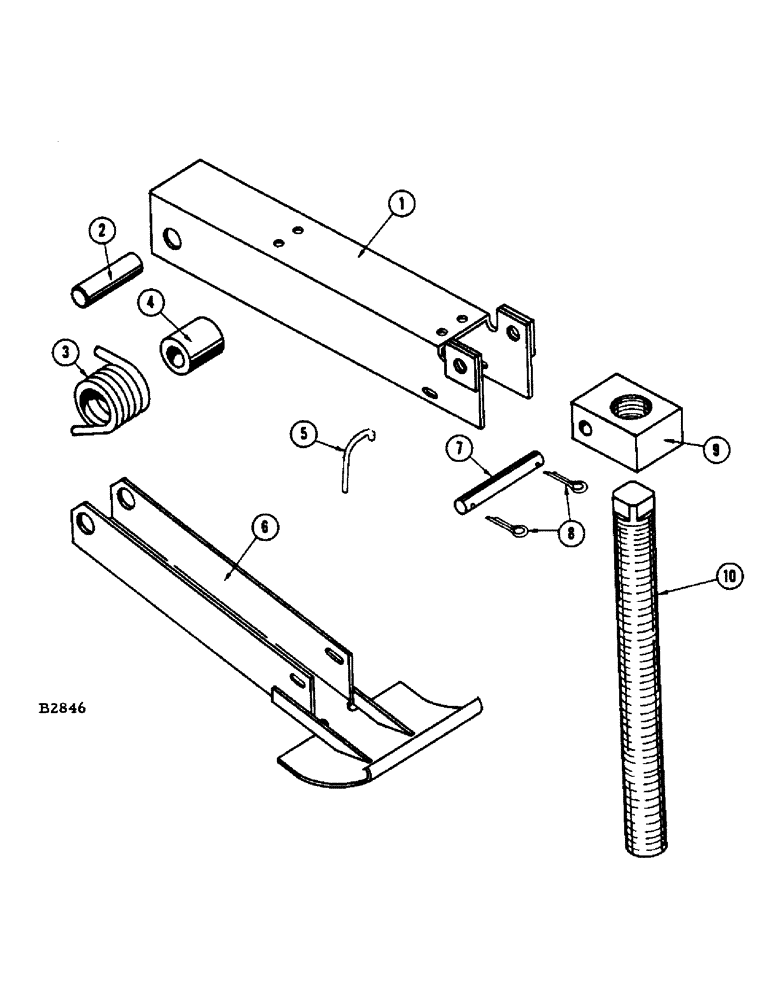

Запчасти Case IH 306 (50) - JACK ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

F92949

MOUNT ASSEMBLY - jack

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex., nut (25-116) L.W. (92-6)

8шт.

2

F54972

PIN CHANNEL - jack

2шт.

3

F54970

SPRING - jack

2шт.

4

F54971

SLEEVE - jack

2шт.

5

F54976

PIN - retaining, jack

2шт.

6

F92950

CHANNEL - jack

2шт.

7

F54974

PIN BLOCK - jack

2шт.

8

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

9

F54973

BLOCK - jack

2шт.

10

F54975

ROD - jack

2шт.
