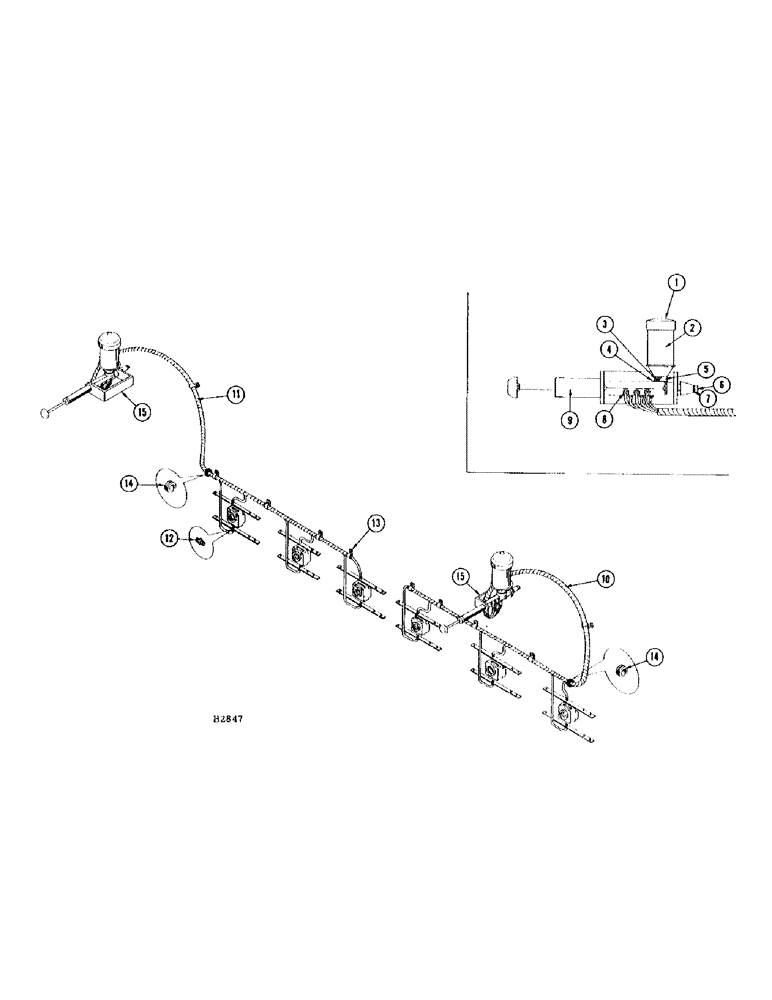

Запчасти Case IH 306 (48) - MULTI-LUBER AND HARNESS (58) - ATTACHMENTS/HEADERS

1

F86366

CAP - reservoir

2шт.

2

F86369

RESERVOIR - lubricant

2шт.

NSS

NOT SOLD SEPARAT

MULTI-LUBER AND HARNESS - L.H. and R.H.

2шт.

3

F12310

GASKET

2шт.

4

F12308

GASKET

2шт.

5

F55078

ADAPTER

2шт.

6

F54298

PLUG - stop

2шт.

7

F12306

GASKET

2шт.

8

F14108

PLUG - closure

12шт.

9

F86372

MULTI-LUBER - manual operated

2шт.

10

F93016

HARNESS - R.H.

1шт.

11

F93017

HARNESS - L.H.

1шт.

12

F54609

NUT - compression

12шт.

13

F12300

"J" CLAMP

14шт.

14

F54096

GROMMET

2шт.

15

F14106

BRACKET - saddle

2шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Nut (25-104) L.W. (92-4) Hex, 1/4"-20 x 5/8", G5, Full Thd

6шт.

B17069

LOCTITE

LOCK TITE - bottle (50 C.C.)

1шт.

B17068

ADHESIVE

LOCK TITE - tube (2 C.C.)

1шт.

B17108

PRIMER PAINT

LOCK QUICK - aerosol can

1шт.
