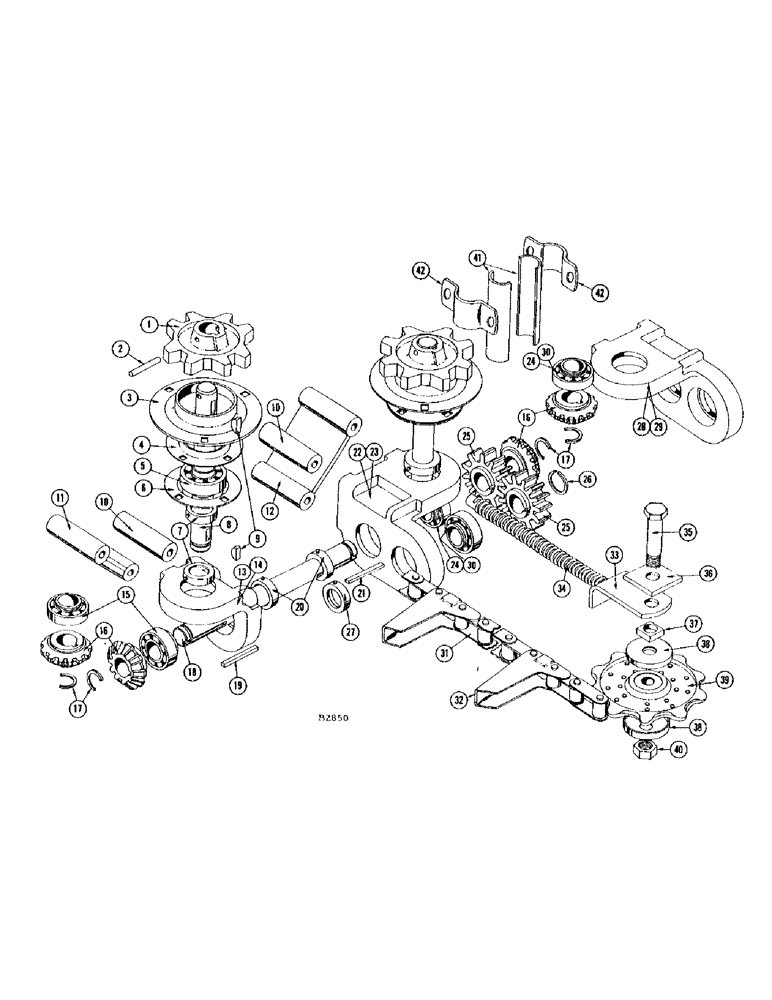

Запчасти Case IH 306 (46) - GATHERING CHAIN DRIVE GEAR ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

F2202

SPROCKET ASSY.

SPROCKET - gathering chain drive

12шт.

2

135-56

GROOVED PIN,3/16" x 1 1/2", Type A

PIN - 3/16" x 1-1/2" drive loc

12шт.

3

F54687

SHIELD

12шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

36шт.

4

F55121

FLANGETTE - "A"

12шт.

5

F54720

BALL BEARING

BEARING

12шт.

6

F55122

FLANGETTE - "B"

12шт.

7

F62108

COLLAR

- lock

12шт.

F55156

COLLAR - lock (With 2 set screws)

12шт.

8

F54685

SHAFT - gathering chain

12шт.

9

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

24шт.

10

F54686

SPACER

12шт.

11

F93042

SPACER - short

6шт.

12

F93043

SPACER - long

6шт.

13

F92811

GEAR BOX - gathering chain drive

6шт.

14

NSS

NOT SOLD SEPARAT

ANGLE - gear box

1шт.

15

F40948

BEARING

2шт.

16

F53084

GEAR - miter

24шт.

17

O6563AB

X

SNAP RING

24шт.

18

F54683

SHAFT - gathering chain drive

6шт.

19

F54684

KEY

6шт.

20

F62108

COLLAR

12шт.

21

O2227CH

KEY

- 1/4" x 1/4" x 1-3/4"

6шт.

22

F92820

INPUT - gear box drive, R.H.

3шт.

23

NSS

NOT SOLD SEPARAT

ANGLE - gear box input, R.H.

1шт.

24

F40948

BEARING

3шт.

25

F53651

GEAR - spur

12шт.

26

F62095

RING, SNAP

SNAP RING

6шт.

27

F62108

COLLAR

6шт.

28

F92818

INPUT - gear box drive, L.H.

3шт.

29

NSS

NOT SOLD SEPARAT

ANGLE - gear box input, L.H.

1шт.

30

F40948

BEARING

3шт.

31

F93079

CHAIN - gathering (58 links #CA-550 roller chain - consists of 47-riveted, 10-lugs, and 1-conn.)

12шт.

32

F55158

LINK - lug (Consists of lug link and 2 riveted links #CA-550 roller chain)

1шт.

F10673

LINK

- offset, #CA-550 roller chain

1шт.

F10674

LINK

- connecting, #CA-550 roller chain

1шт.

F10818

LINK

- roller, #CA-550 roller chain

1шт.

F79124

COTTERS - hardend (Pkg. of 25) #CA-550 roller chain

1шт.

F92261

PINS AND COTTERS - (Pkg. of 25) #CA-550 roller chain

1шт.

33

F92816

YOKE

12шт.

34

F54414

SPRING - compression

12шт.

35

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.F. hex.

12шт.

36

F54415

SLIDE - flat

12шт.

37

F54711

SLIDE - spacer

12шт.

38

F53095

CAP - dust

24шт.

39

F53689

FRONT IDLER

IDLER - chain

12шт.

40

131-13

LOCK NUT,5/8"-18, GB

12шт.

41

F55145

SLEEVE HALF

24шт.

42

O770BF

STRAP

CLAMP HALF

24шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

; L.W. (192-20) Hex, 5/16"-18 x 1", G5, Full Thd

24шт.

9635082

NUT,5/16" - 18, Gr 5

24шт.
