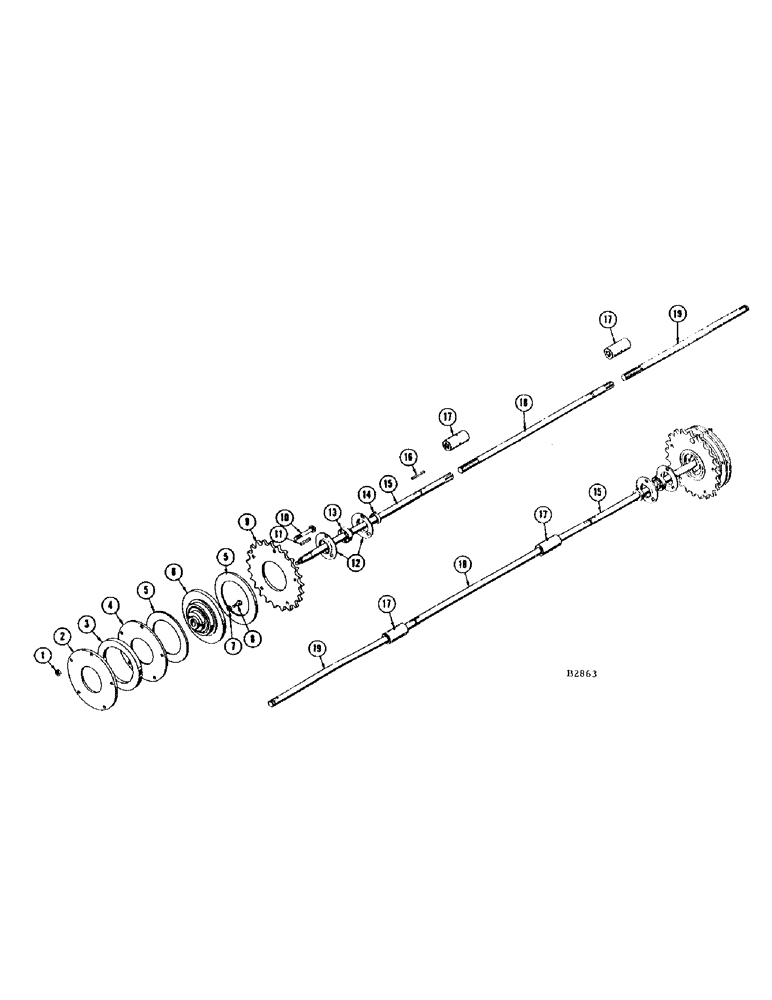

Запчасти Case IH 306 (44) - GATHERING CHAIN JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

131-575

NUT

NUT - 5/16" flex lock

10шт.

2

F22250

PLATE

- pressure

2шт.

3

F17496

SPRING - rubber

2шт.

4

F55083

PLATE - thrust

2шт.

5

F93082

FACING - slip clutch (Set of 6)

4шт.

6

F92843

HUB - gathering chain drive

2шт.

7

193-45

WASHER,Ext-Int Tooth, 5/16"

- 5/16"

4шт.

8

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

9

F17493

SPROCKET - (45T)

2шт.

10

111-218

BOLT - 5/16" x 2" rhd. sq. nk.

10шт.

11

O3312AB

KEY

- 1/4" x 1-1/2"

2шт.

12

B18282

FLANGE

TTE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

6шт.

13

3074CSA

BALL BEARING

- 1" shaft

2шт.

14

F62108

COLLAR

1шт.

15

F54719

JACKSHAFT - input outer, gathering chain

2шт.

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

LOCKNUT - 1/2" - 20 nylon, and fl. washer (195-33)

2шт.

16

F54684

KEY

6шт.

17

F54734

COUPLER - gathering drive

4шт.

135-39

PIN - 1/8" x 1-1/2" driveloc

4шт.

18

F54733

JACKSHAFT - input 30", gathering chain

2шт.

F54767

JACKSHAFT - input 28", gathering chain

2шт.

19

F54718

JACKSHAFT - input inner, 30"

2шт.

F55082

JACKSHAFT - input inner, 28"

2шт.
