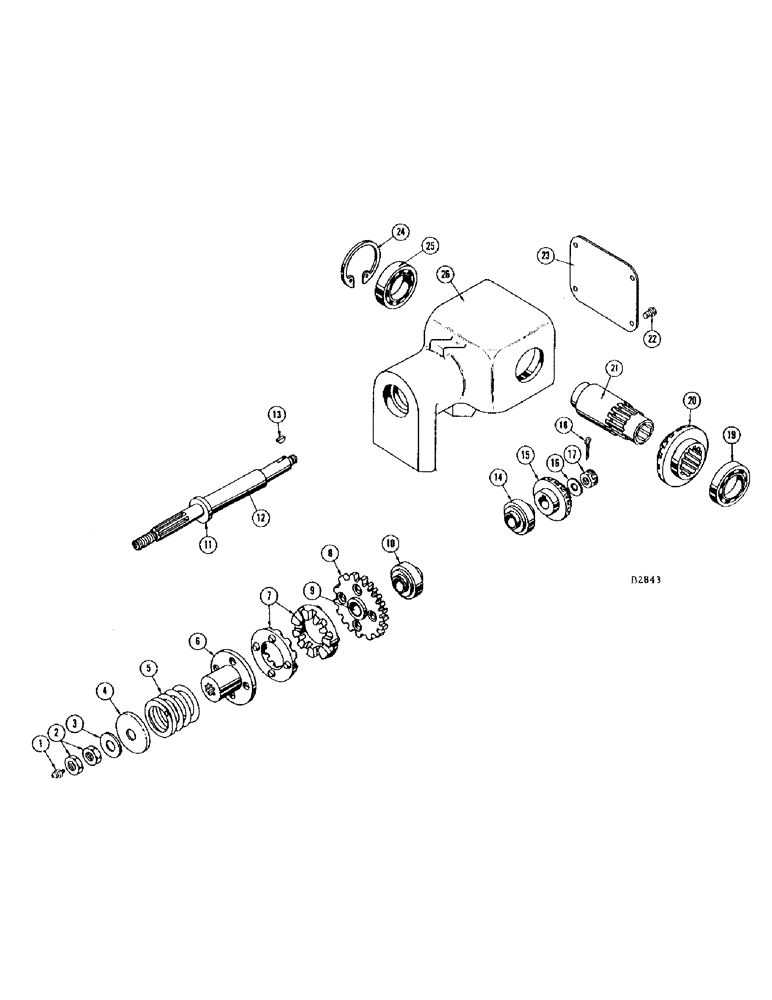

Запчасти Case IH 306 (40) - GEAR BOX (58) - ATTACHMENTS/HEADERS

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

6шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.F. jam

12шт.

3

O4413N

WASHER

6шт.

4

F13153

BOLT

CAP - dust

6шт.

5

O6326CH

SPRING

6шт.

6

F92032

HUB AND PLATE - jump clutch

6шт.

7

T16665

CLUTCH RING

12шт.

8

F92791

SPROCKET - snap roll drive, (18T)

6шт.

9

F53645

BEARING

BUSHING

1шт.

10

F54637

BEARING - 1-1/4"

6шт.

11

F53827

WASHER

6шт.

12

F54636

SHAFT

6шт.

13

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

6шт.

14

F54638

BEARING - 1-1/8"

6шт.

15

F54639

GEAR - roll driven, (14T)

6шт.

16

F53638

WASHER

6шт.

17

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. slotted

6шт.

18

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

6шт.

19

A55664

BALL BEARING

BEARING

6шт.

20

F54640

GEAR - snap roll drive, (21T)

6шт.

21

F54641

SHAFT - gear box drive

6шт.

22

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

24шт.

23

F54644

PLATE - cover

6шт.

24

O5209CS

X

SNAP RING

6шт.

25

A55664

BALL BEARING

BEARING

6шт.

26

F2099

GEAR BOX

6шт.
