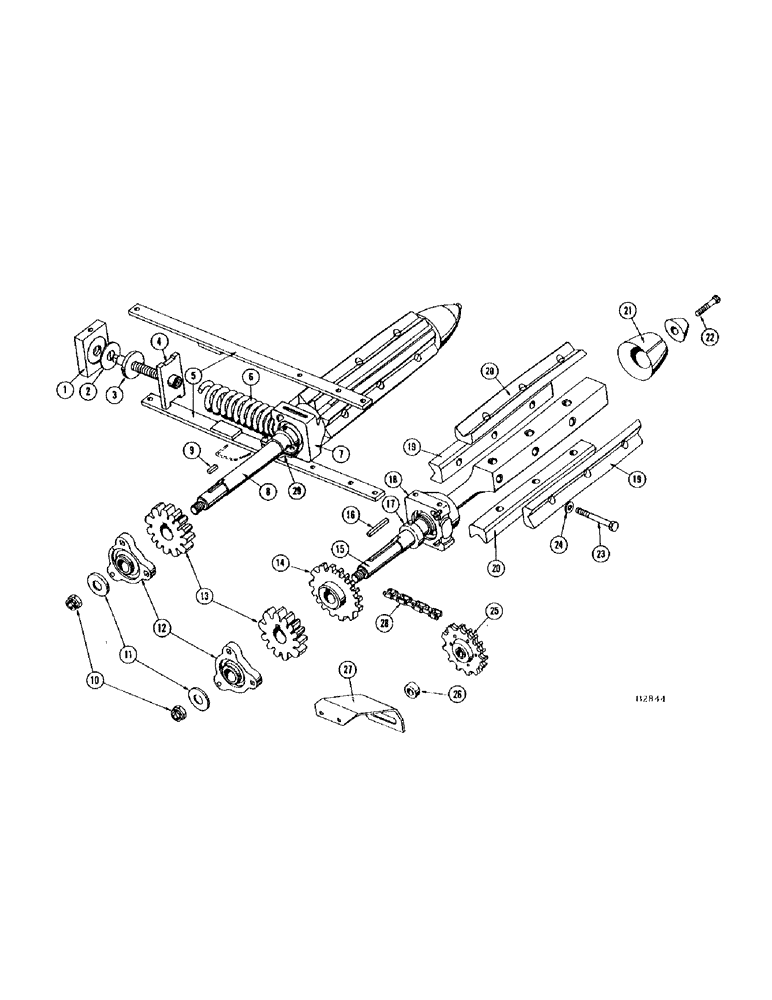

Запчасти Case IH 306 (38) - STALK ROLLS (58) - ATTACHMENTS/HEADERS

1

F54680

END PLATE

6шт.

2

O3899BF

WASHER - thrust

6шт.

3

F92806

ROD - adjustment

6шт.

4

F92807

SHOE - spring

6шт.

5

F93019

STRINGER

12шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

and L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

6

F54675

SPRING

6шт.

7

F93053

SUPPORT - bearing

6шт.

8

F54681

ROLL - stalk, idler

6шт.

9

F54682

KEY

6шт.

10

131-581

LOCK NUT,3/4"-16

NUT - flexloc 3/4" N.F.

12шт.

11

O4413N

WASHER

12шт.

12

F54694

BEARING, NEEDLE

BEARING

12шт.

13

F3735

GEAR - stalk roll drive

12шт.

14

F92804

SPROCKET - stalk roll drive

6шт.

15

F54671

ROLL - driven

6шт.

16

B18323

KEY

- 5/16" x 5/16" x 2" sq.

6шт.

17

F62226

COLLAR

- lock

12шт.

18

F93052

SUPPORT - bearing, stationary

6шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

L.W. (92-6) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

19

F2199

RIB ROLL - #1

24шт.

131-5

LOCK NUT,3/8"-16, GB

LOCKNUT - 3/8" N.F. hex.

36шт.

20

F2200

RIB ROLL - #2

24шт.

131-5

LOCK NUT,3/8"-16, GB

LOCKNUT - 3/8" N.F. hex.

36шт.

21

F55147

POINT - roll

12шт.

F55146

WASHER - roll point

12шт.

22

114-6

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

12шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

12шт.

23

114-240

BOLT,Locking, 3/8" - 24 x 2-1/4", Gr 5

- 3/8" x 2-1/4" N.F. hex.

72шт.

24

D46947

WASHER

72шт.

25

F53736

IDLER - stalk roll chain

6шт.

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.F. hex., locknut (131-9) and flatwasher (195-33)

6шт.

26

F53661

SPACER - idler

6шт.

27

F54715

BRACKET - idler

6шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 3/4", G5, Full Thd

12шт.

28

F54732

CHAIN - snap roll drive (NSS - see chain page)

6шт.

29

O770BF

STRAP

CLAMP - half

12шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

; L.W. (192-20) Hex, 5/16"-18 x 1", G5, Full Thd

12шт.

9635082

NUT,5/16" - 18, Gr 5

12шт.
