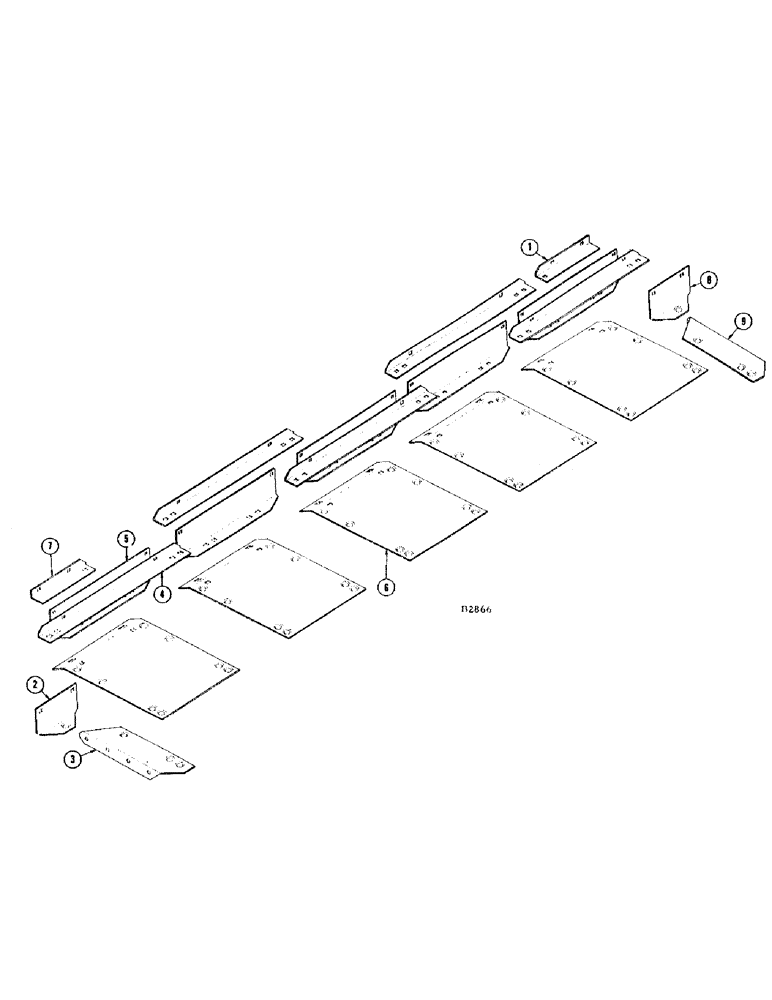

Запчасти Case IH 306 (32) - FILLER SHEETS AND SPACERS (58) - ATTACHMENTS/HEADERS

1

F54742

ANGLE - end support, L.H.

1шт.

2

F54740

SUPPORT - outer rear, R.H.

1шт.

11-58

BOLT - 5/16" x 1/2" rhd. sq. nk., nut (25-105) L.W. (92-5)

2шт.

164-125

SCREW - 3/8" x 1" fl. hd. hex. mach., nut (25-116) L.W. (92-6) Hex Soc Flat Hd, 3/8"-24 x 1"

1шт.

195-25

WASHER,3/8"

1шт.

3

F54730

END ANGLE - middle, R.H.

1шт.

164-125

SCREW - 3/8" x 1" fl. hd. hex. mach. nut (25-1160 L.W. (92-6) Hex Soc Flat Hd, 3/8"-24 x 1"

3шт.

195-25

WASHER,3/8"

3шт.

4

F54739

SUPPORT - angle

5шт.

5

F54738

SUPPORT - rear

5шт.

11-58

BOLT - 5/16" x 1/2" rhd. sq. nk., nut (25-105) L.W. (92-5)

10шт.

11-614

BOLT

- 3/8" x 3/4" rhd, sq. nk., nut (25-106) L.W. (92-6)

10шт.

6

F54728

SPACER - frame, 30"

5шт.

F54729

SPACER - frame, 28"

5шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex., L.W. (92-6)

30шт.

111-217

CARRIAGE BOLT,Short NK, 5/16"-18 x 5/8", G2

BOLT - 5/16" x 5/8" rhd. sq. nk., nut (129-102) L.W. (192-20)

10шт.

131-177

LOCK NUT,3/8"-24, GA

LOCKNUT - 3/8" Gripco

10шт.

164-125

SCREW - 3/8" x 1" fl. hd. hex. mach. Hex Soc Flat Hd, 3/8"-24 x 1"

40шт.

195-25

WASHER,3/8"

40шт.

7

F54743

ANGLE - end support, R.H.

1шт.

8

F54741

SUPPORT - outer rear, L.H.

1шт.

11-58

BOLT - 5/16" x 1/2" rhd. sq. nk., nut (25-105) L.W. (92-5)

2шт.

164-125

SCREW - 3/8" x 1" fl. hd. hex. mach., nut (25-116) L.W. (92-6) Hex Soc Flat Hd, 3/8"-24 x 1"

1шт.

195-25

WASHER,3/8"

1шт.

9

F54731

END ANGLE - middle, L.H.

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.C. hex. and L.W. (92-6)

1шт.

131-177

LOCK NUT,3/8"-24, GA

LOCKNUT - 3/8"

2шт.

164-125

SCREW - 3/8" x 1" fl. hd. hex. mach. Hex Soc Flat Hd, 3/8"-24 x 1"

3шт.

195-25

WASHER,3/8"

1шт.
