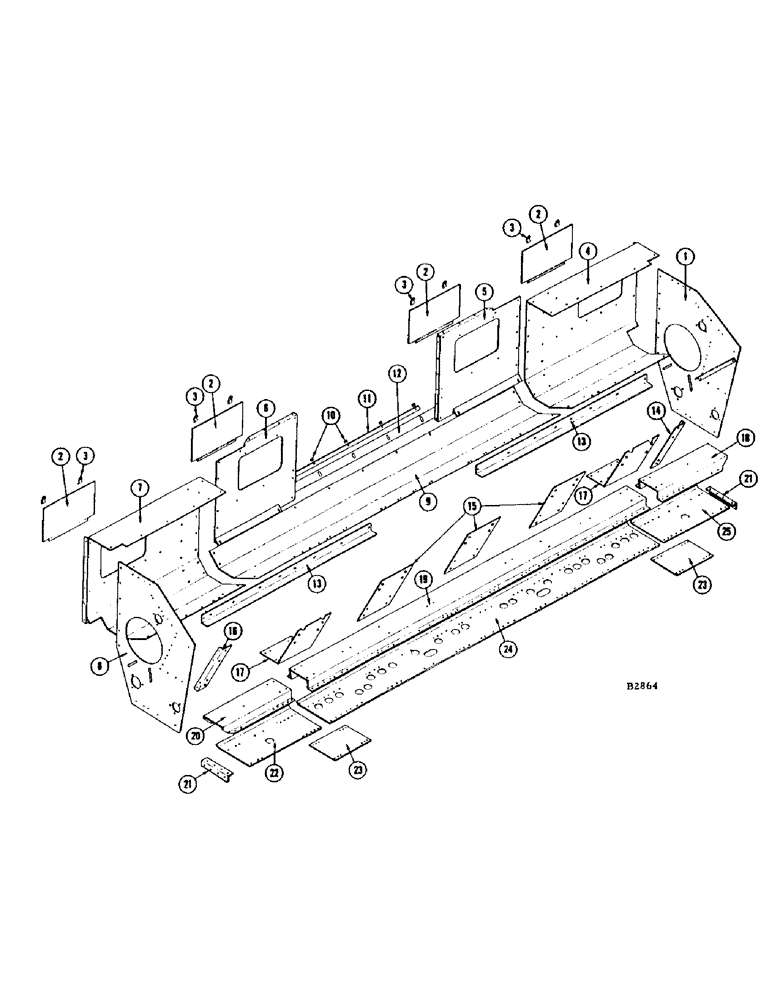

Запчасти Case IH 306 (26) - AUGER HOUSING AND LOWER MAIN FRAME (58) - ATTACHMENTS/HEADERS

1

F92823

END PLATE - L.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

11шт.

131-134

SPRING NUT

- Tinnerman #C7511-5618-S

2шт.

2

F54878

PLATE - inspection

4шт.

3

F7738

CLIP - access door

8шт.

4

F92846

HOUSING - auger, L.H.

1шт.

12-512

BOLT

- 5/16" x 3/4" rhd. sq. sh. N.C., nut (25-105) L.W. (92-5)

3шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

9шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 3/4", G5, Full Thd

5шт.

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16" x 3/4" rhd sq. sh. N.C., nut (129-102) flatwasher (195-521) and lockwasher (192-20)

2шт.

195-21

WASHER,5/16"

FLATWASHER - 5/16"

5шт.

5

F93023

HOUSING - auger, rear L.H.

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

F92873

HOUSING - auger, rear R.H.

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

7

F92845

HOUSING - auger, R.H.

1шт.

12-512

BOLT

- 5/16" x 3/4" rhd. sq. sh. N.C., nut (25-105) L.W. (92-5)

3шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) flatwasher (195-21) and lockwasher (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

9шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 3/4", G5, Full Thd

5шт.

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16" x 3/4" rhd. sq. sh. N.C., nut (129-102) flatwasher (195-521) and lockwasher (192-20)

2шт.

8

F92821

END PLATE - R.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

11шт.

9

F54805

FLOOR - auger, center

1шт.

77-512

SCREW

- 5/16" x 3/4" truss hd. mach., nut (25-105) L.W. (92-5)

5шт.

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16" x 3/4" rhd. sq. sh. N.C., nut (129-102) flatwasher (195-521) and lockwasher (192-20)

2шт.

10

F55091

SPACER - feeder floor

5шт.

11

F54865

SUPPORT - auger floor, center

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

12

F55090

STRAP - feeder floor

1шт.

13

F54875

STRIPPER

2шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) flatwasher (195-21) and lockwasher (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

14

F54726

END SHEET - filler, L.H.

1шт.

15

F54723

SHEET - filler, 30"

3шт.

F54724

SHEET - filler, 28"

3шт.

16

F54725

END SHEET - filler, R.H.

1шт.

17

F54634

CONNECTOR - 30"

2шт.

F54635

CONNECTOR - 28"

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

164-125

SCREW - 3/8" x 1" fl. hd. hex. mach., nut (25-116) L.W. (92-6) Hex Soc Flat Hd, 3/8"-24 x 1"

8шт.

195-25

WASHER,3/8"

8шт.

18

F92788

EXTENSION - frame, lower L.H.

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut (25-116) L.W. (92-6)

8шт.

19

F92786

MAIN FRAME - lower, hat section

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

16шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut (25-116) L.W. (92-6)

24шт.

20

F92787

EXTENSION - frame, lower R.H.

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut (25-116) L.W. (92-6)

8шт.

21

F54652

ANGLE - lower end

2шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

8шт.

22

F54645

EXTENSION - main frame, lower R.H.

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

L.W. (92-8) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

23

F54650

PLATE - frame connecting, 30"

2шт.

F54651

PLATE - frame connecting, 28"

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut (25-116) L.W. (92-6)

24шт.

24

F54649

MAIN FRAME - lower

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

L.W. (92-8) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

195-33

WASHER,1/2"

FLATWASHER - 1/2"

2шт.

25

F54648

EXTENSION - main frame, lower L.H.

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

L.W. (92-8) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.
