(24) - OUTER POINTS AND SUPPORTS

Запчасти Case IH 306 (24) - OUTER POINTS AND SUPPORTS (58) - ATTACHMENTS/HEADERS

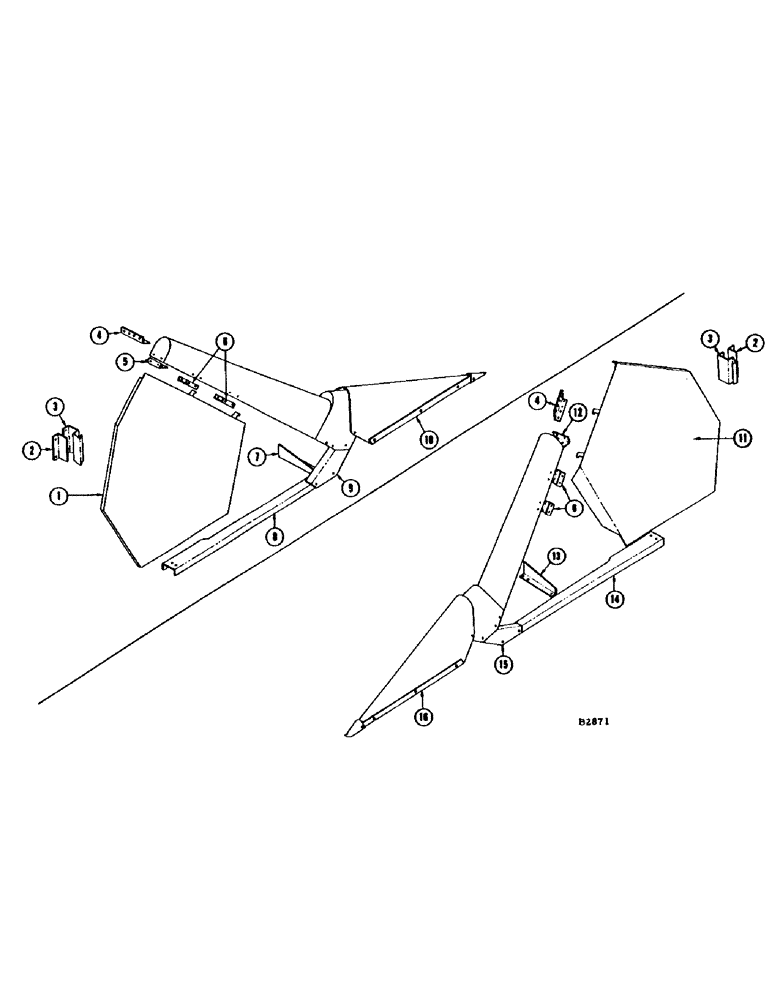

Схема запчастей Case IH 306 - (24) - OUTER POINTS AND SUPPORTS (58) - ATTACHMENTS/HEADERS
16
12
4
5
9
13
2
6
8
10
4
3
14
7
15
1
6
3
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F92885

SHIELD - R.H.

1шт.

2

F55103

STIFFENER - shield strap

4шт.

3

F55102

STRAP - shield

2шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) fl. wshr. (195-21) and L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

F54771

END ANGLE - upper

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

5

F54770

ANGLE - support filler, R.H.

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

6

F54768

SPACER - finish sheet

4шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

FH318618

X

SPACER - (Not shown)

4шт.

7

F54721

GUSSET - R.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

- 3/8" x 5/8" N.F. hex., nut (25-116) L.W. (92-6)

3шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut (25-116) L.W. (92-6)

2шт.

8

F54759

BRACE - outer point, R.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut (25-116) L.W. (92-6)

1шт.

9

F54760

SUPPORT - outer point, R.H.

1шт.

10

F54928

WEAR STRIP - point, outer R.H.

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

3шт.

11

F92886

SHIELD - L.H.

1шт.

12

F54769

ANGLE - support filler, L.H.

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

13

F54722

GUSSET - L.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

- 3/8" x 5/8" N.F. hex., nut (25-116) L.W. (92-6)

3шт.

14

F54761

BRACE - outer point, L.H.

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., nut (25-116) L.W. (92-6)

3шт.

15

F54762

SUPPORT - outer point, L.H.

1шт.

16

F54919

WEAR STRIP - point, outer L.H. diagonal

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

3шт.
