(22) - BRACES AND PIVOTS

Запчасти Case IH 306 (22) - BRACES AND PIVOTS (58) - ATTACHMENTS/HEADERS

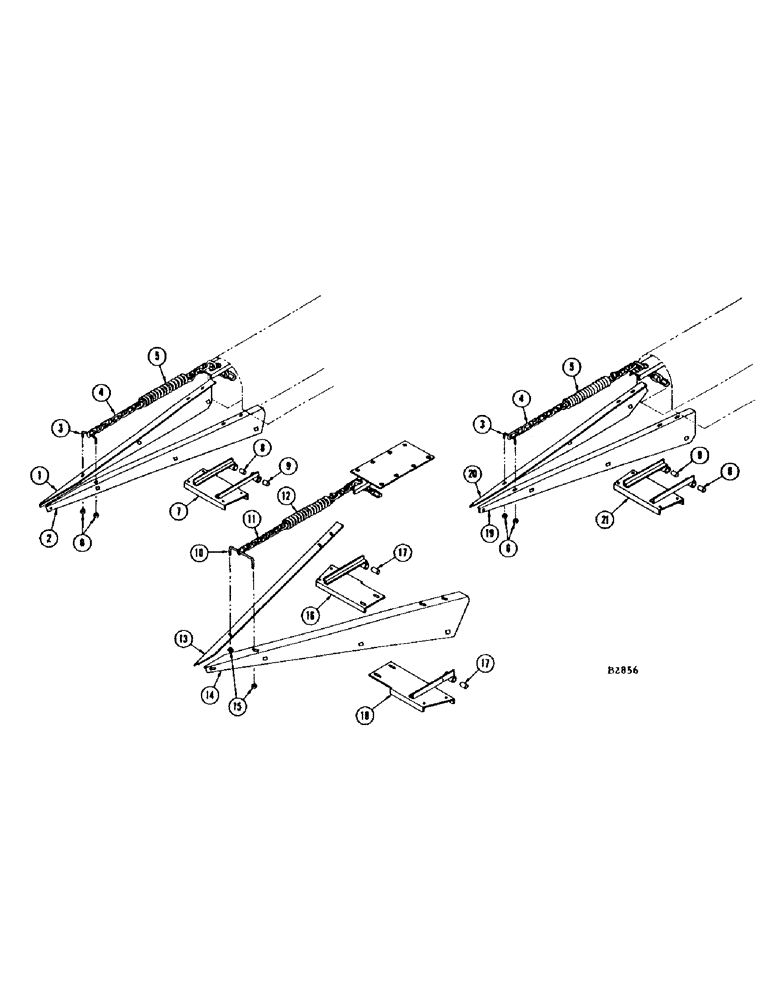

Схема запчастей Case IH 306 - (22) - BRACES AND PIVOTS (58) - ATTACHMENTS/HEADERS
12
6
16
17
3
18
15
20
8
21
5
1
7
4
2
9
19
17
6
8
5
4
9
14
11
3
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F54926

BRACE - point, R.H. outer

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) fl. wshr. (195-525) and L.W. (192-21) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

2

F54925

BRACE - point, R.H. diagonal

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) fl. wshr. (195-525) and L.W. (192-21) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

3

F54927

"U" BOLT - point

2шт.

92-6

LOCK WASHER,3/8"

4шт.

195-25

WASHER,3/8"

4шт.

4

F53905

CHAIN - point

2шт.

5

F53984

SPRING - point

2шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

7

F92894

PIVOT PLATE - point, outer R.H.

1шт.

8

F54936

SLEEVE - float point, outer

2шт.

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Nut (129-103) fl. wshr. (195-525) and L.W. (192-21) Hex, 3/8"-16 x 2 3/4", G5

2шт.

9

F54935

SLEEVE

- float point

2шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Nut (129-103) fl. wshr. (195-525) and lockwasher (192-21) Hex, 3/8"-16 x 2 1/4", G5

2шт.

10

F54923

"U" BOLT - center

5шт.

92-6

LOCK WASHER,3/8"

10шт.

195-25

WASHER,3/8"

10шт.

11

F53905

CHAIN - point

5шт.

12

F53984

SPRING - point

5шт.

13

F54917

BRACE - point, R.H. diagonal

5шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) fl. wshr. (195-525) and lockwasher (192-21) Hex, 3/8"-16 x 3/4", G5, Full Thd

10шт.

14

F54920

BRACE - point, L.H. diagonal

5шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) fl. wshr. (195-525) and lockwasher (192-21) Hex, 3/8"-16 x 3/4", G5, Full Thd

10шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

10шт.

16

F92889

PIVOT PLATE - point, R.H.

5шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) L.W. (192-21) Hex, 3/8"-16 x 3/4", G5, Full Thd

5шт.

195-525

WASHER,3/8", SAE

FLATWASHER - 3/8"

10шт.

17

F54935

SLEEVE

- flat point

10шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Nut (129-103) fl. wshr. (195-525) and lockwasher (192-21) Hex, 3/8"-16 x 2 1/4", G5

10шт.

18

F92891

PIVOT PLATE, point, L.H.

5шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) L.W. (192-21) Hex, 3/8"-16 x 3/4", G5, Full Thd

5шт.

195-525

WASHER,3/8", SAE

FLATWASHER - 3/8"

10шт.

19

F54932

BRACE - point, L.H. diagonal

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) fl. washer (195-525) and lockwasher (192-21) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

20

F54933

BRACE - point, L.H. outer

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Nut (129-103) flatwasher (195-525) and lockwasher (192-21) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

21

F92896

PIVOT PLATE - point, outer L.H.

1шт.
