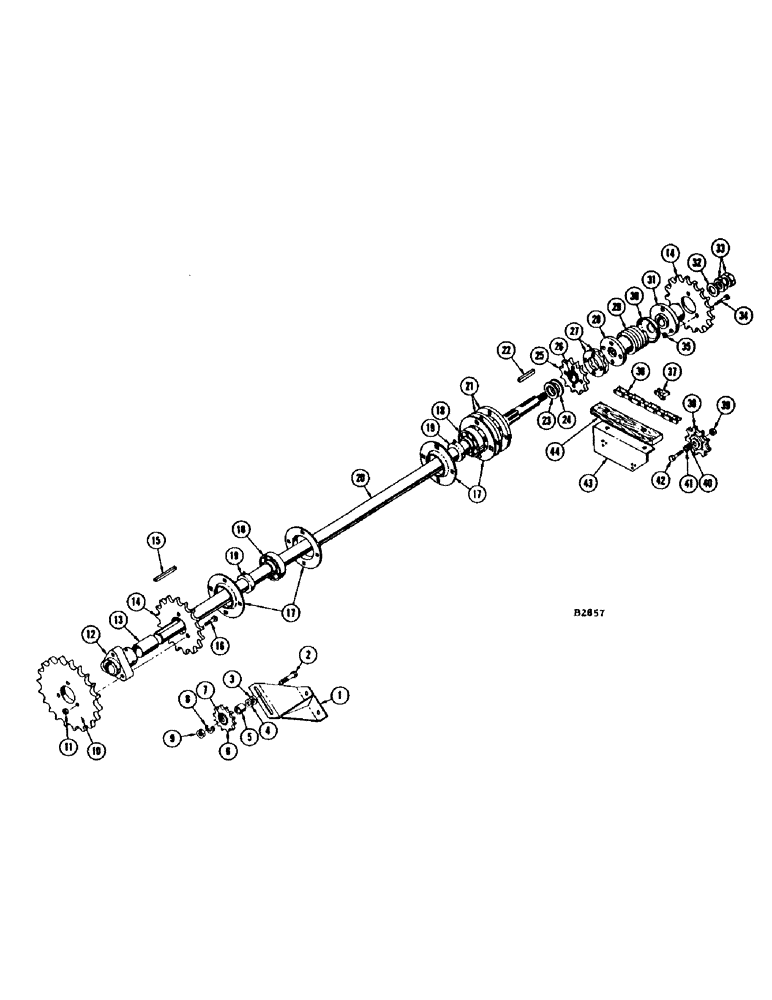

Запчасти Case IH 306 (16) - INTERMEDIATE JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

F93022

BRACKET - idler

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut (25-106) flatwasher (195-25) and lockwasher (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

2

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

3

195-25

WASHER,3/8"

LOCKWASHER - 5/8"

1шт.

4

195-541

WASHER,5/8", SAE

FLATWASHER - 5/8"

1шт.

5

F17354

SPACER

1шт.

6

F87294

SPROCKET - idler

1шт.

7

F16246

BEARING, BALL

BEARING

1шт.

8

O3338BF

SNAP RING

2шт.

9

129-107

NUT,5/8"-11, G5

1шт.

10

F54068

SPROCKET - jackshaft driven (28T)

1шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

12

F2207

HUB - main driven

1шт.

13

F55104

SPACER - hub

1шт.

14

F54085

SPROCKET - gear box drive (29T)

2шт.

F8974

SPROCKET ASSY.

SPROCKET - gear box drive (24T)

2шт.

F8978

SPROCKET - gear box drive (33T)

2шт.

F16253

SPROCKET - gear box drive (38T)

2шт.

F18087

SPROCKET - gear box drive (44T)

2шт.

15

O3778N

KEY - straight

1шт.

16

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex.

3шт.

17

F54883

FLANGETTE

4шт.

11-816

BOLT,Short NK, 1/2"-13 x 1", G2

- 1/2" x 1" rhd. sq. nk., nut (25-108) L.W. (92-8)

4шт.

11-828

BOLT (MACHINE)

BOLT - 1/2" x 1-3/4" rhd. sq. nk., nut (25-108) L.W. (92-8)

4шт.

18

F54882

BEARING - jackshaft

2шт.

19

F13691

COLLAR

1шт.

20

F54881

JACKSHAFT - intermediate

1шт.

21

F54884

SPACER - flangette

2шт.

22

O2018AB

X

KEY - straight

1шт.

23

F54885

WASHER - retaining

1шт.

24

F54886

WASHER - retaining

1шт.

25

F92876

SPROCKET - feedrake drive (18T)

1шт.

F92912

SPROCKET - feedrake drive (21T)

1шт.

F92914

SPROCKET - feedrake drive (25T)

1шт.

26

F54889

BEARING

1шт.

27

T16665

CLUTCH RING

2шт.

28

F92878

PLATE AND HUB - jump clutch

1шт.

29

F54892

SPRING - feed rake jump clutch

1шт.

30

F54893

WASHER - cup

1шт.

31

F92879

HUB ASSY. - gear box drive

1шт.

32

O4413N

WASHER

1шт.

33

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. jam

2шт.

34

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

3шт.

35

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

36

F54896

CHAIN - feedrake drive (NSS - See Chain Page)

1шт.

37

B12510

CHAIN LINK

LINK - offset #60 chain

1шт.

38

F53736

SPROCKET - idler (15T)

1шт.

39

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

41

195-533

WASHER,1/2", SAE

FLATWASHER - 1/2"

1шт.

42

111-528

BOLT - 1/2" x 2" rhd. sq. nk.

1шт.

43

F55046

ANGLE - feed rake drive

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut (25-105) L.W. (92-5) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

44

F4778

WEAR STRIP - rake chain

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut (25-106) L.W. (92-6) Short NK, 3/8"-16 x 1", G2

2шт.
